EV-PEAK U6Q 3000W 6-14S Intelligent Balancing Charger

Chinese standards / U6Q charger

$382.28

$382.28 $503.00

EV-PEAK U6Q 3000W 6-14S Intelligent Balancing Charger

$382.28

$382.28 $503.00

Regional restrictions Chinese standards European standards American standard

TYPE U6Q charger Balancing adapter board

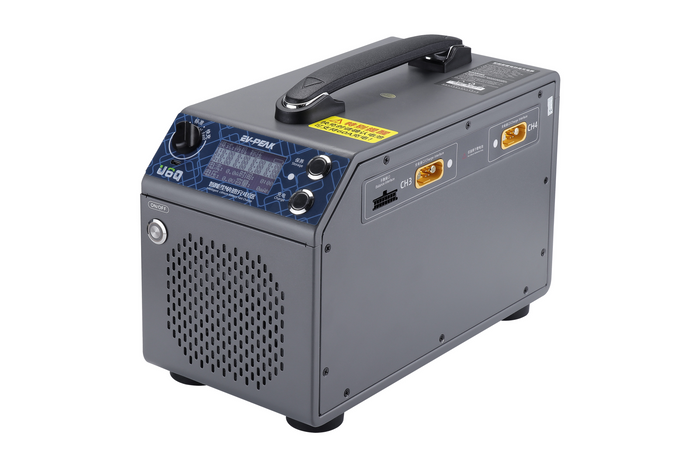

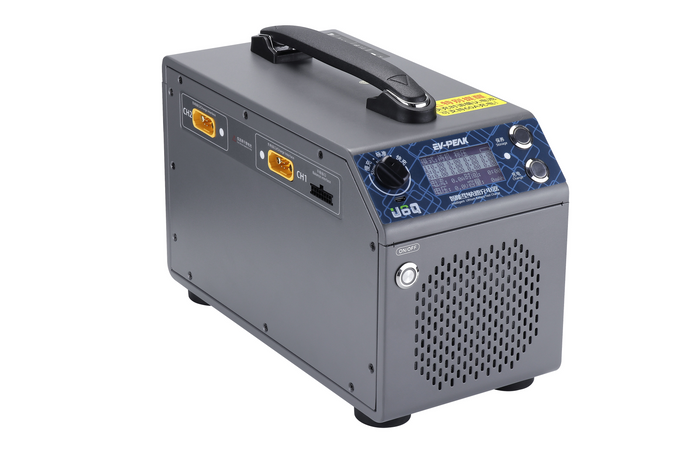

EV-PEAKU6Q 4‑Channel Smart Balance Fast Charger

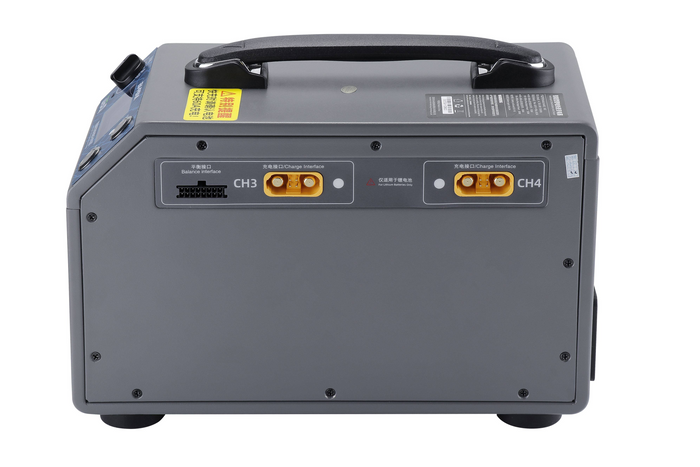

4 Independent Channels

Charge 4 batteries simultaneously

High‑Power Fast Charge

3000W / 60A ultra‑fast charging

Multi‑Protection

Overcurrent / Overvoltage / Overtemperature / Overcharge

Intuitive Display

LCD screen shows real‑time charging status

EV-PEAKU6Q is a 4‑channel smart balance fast charger with a maximum output power of 3000W and a single‑channel current of 60A. Designed for agricultural drones, inspection, aerial photography, firefighting, surveying, patrol, and plant protection, it can charge up to 4 batteries simultaneously with extreme speed (e.g., a 22000mAh battery can be fully charged in about 15‑20 minutes).

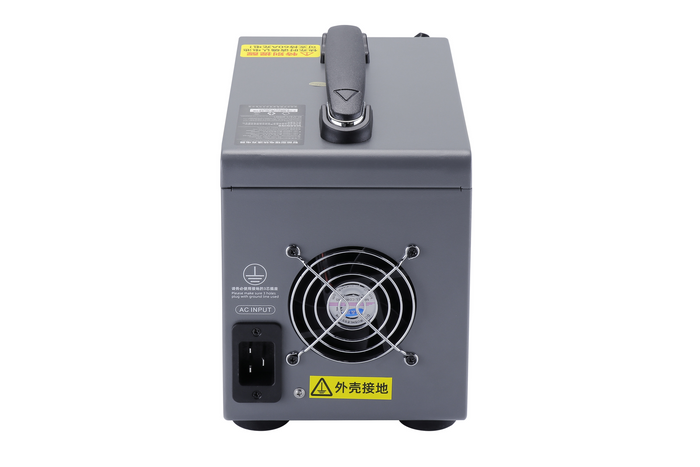

The charger features multiple protection systems (overcurrent, overvoltage, overcharge, overtemperature, etc.), large aluminum heatsinks, and a fire‑resistant metal housing to maintain safe temperatures even under high power output. The user interface is simple and intuitive, supporting plug‑and‑play and automatic start, with a one‑button switch between slow, normal, and fast charging modes. The LCD screen displays key information such as working mode, voltage, current, time, and capacity in real time.

It is widely used in agricultural drones, inspection, aerial photography, firefighting, surveying, patrol, plant protection, and other high‑intensity applications, providing reliable charging support for demanding operations.

4 independent channels – charge 4 batteries at once 60A ultra‑high current – 22000mAh in ~15 min Adjustable current: 10A / 30A / 60A for various needs Smart balancing to extend battery life Multi‑protection: overcurrent, overvoltage, overcharge, overtemperature, reverse polarity

Note: Before use, confirm the battery type (LiPo / LiHV / Smart Battery) and set the correct cell count (6‑14S). Ensure the input voltage is within 100‑240V.

Product Specifications

AC Input Voltage	100‑240V
Charging Power	Max. 3000W
Charging Current	Max. 60A (adjustable: 10/30/60A)
Battery Types	LiPo / LiHV / Smart Battery
Cell Count	6‑14S
Number of Channels	4 (independent output)
Dimensions	303 × 150 × 220 mm
Weight	6.5 kg

Frequently Asked Questions

Q1: Can it charge batteries of different voltages or capacities at the same time?

Yes. The U6Q has four independent channels, and each channel intelligently recognises the specifications of the connected battery. They do not interfere with each other, making it ideal for field operations where batteries in different states are mixed.

Q2: Is a higher charging current always better? Will fast charging damage battery life?

Not necessarily. We recommend following the battery's C‑rate limits. Although the U6Q supports 60A ultra‑fast charging (about 15 minutes), using “Normal” or “Slow” modes when time permits will help extend battery cycle life. The built‑in smart balancing and multiple protection systems effectively reduce the risks of fast charging.

Q3: Can the charger work automatically during short breaks in plant protection operations?

Yes. The charger supports plug‑and‑play and automatic start. After connecting a battery and pressing the button, the machine automatically runs the charging process without complex parameter settings, allowing pilots to recharge efficiently during transitions or rest periods.

Q4: The housing gets very hot after prolonged high‑power operation – is that normal?

Yes, this is normal. The U6Q features a metal housing and large built‑in aluminum heatsinks that rapidly conduct heat to the outside. As long as ventilation is adequate and the over‑temperature protection is not triggered, it is safe to continue using.

Package Contents

EV-PEAKU6Q 4‑Channel Smart Balance Charger × 1 Power Cord × 1 User Manual × 1

Note: Batteries are not included in the standard package. Please purchase compatible batteries separately if needed.
