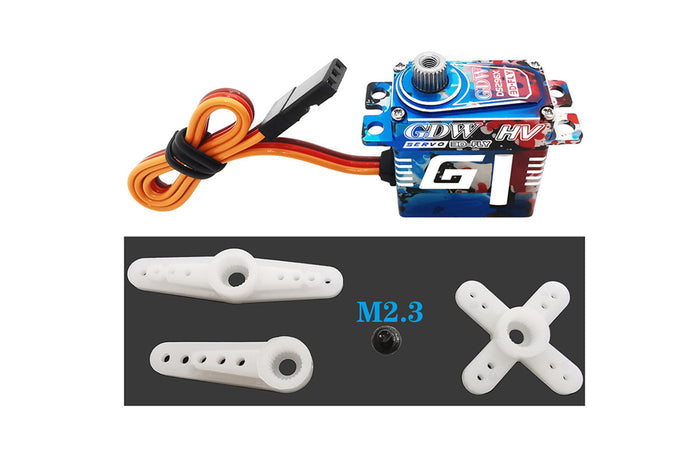

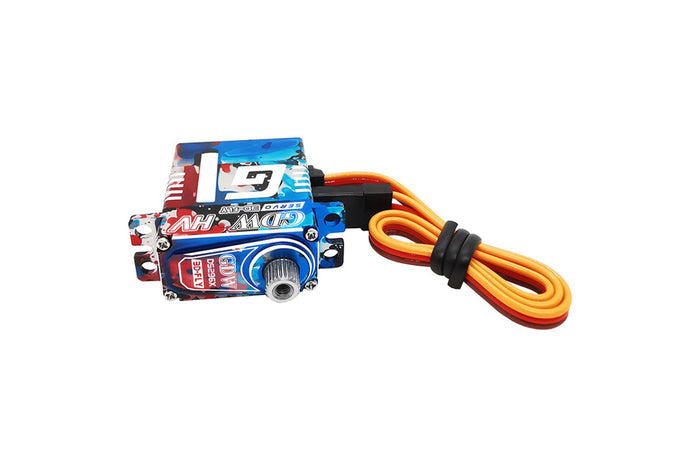

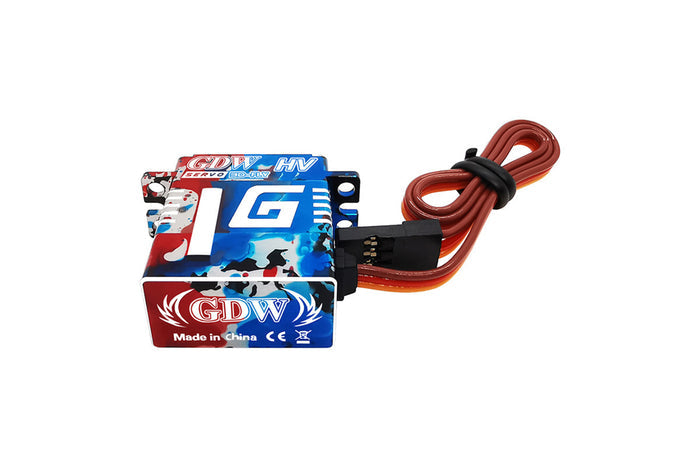

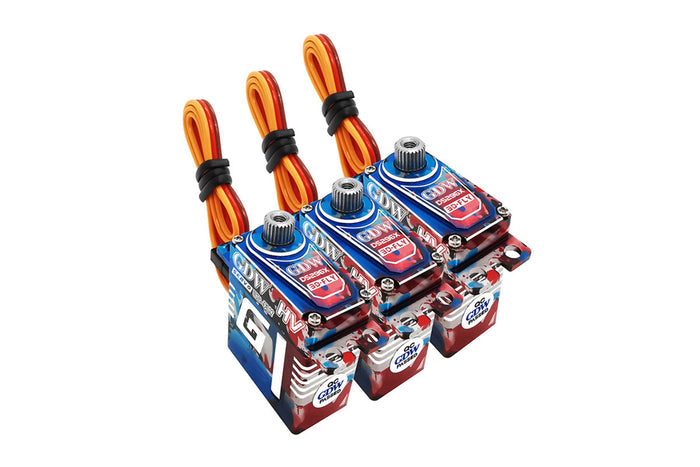

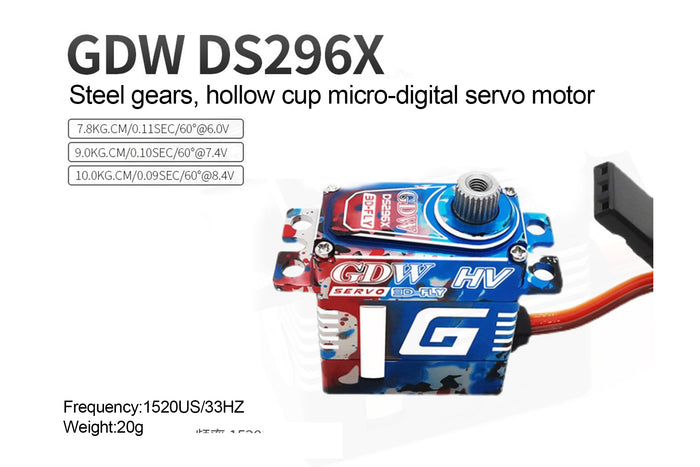

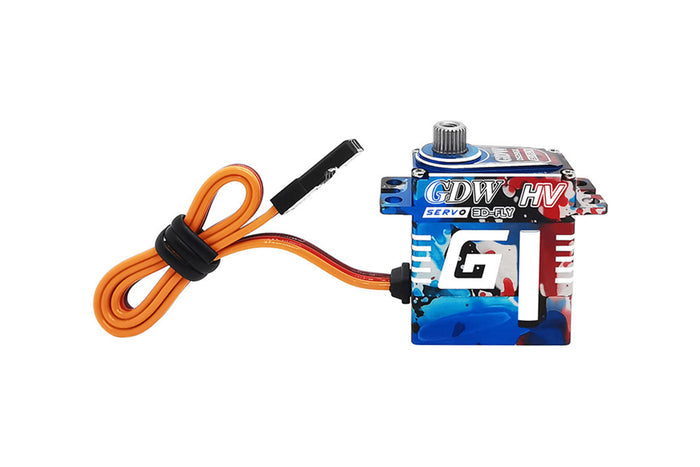

GDW Coreless Micro Digital Servo DS296X

The default angle for model RC transmitters is approximately 60°.

90° Controllable Angle: Pulse width 1000–2000 µs.

120° Controllable Angle: Pulse width 900–2100 µs. Commonly used for RC cars, RC airplanes, and RC boats.

180° Controllable Angle: Pulse width 500–2500 µs. Suitable for robot joints and industrial development.

270° Controllable Angle: Pulse width 500–2500 µs. Suitable for robot joints and industrial development.

350° Controllable Angle: Pulse width 500–2500 µs. Equipped with a magnetic sensor potentiometer. Suitable for robot joints, heads, and industrial development.

360° Continuous Rotation (Position Uncontrollable): Pulse width 500–2500 µs. Commonly used for winches/wire twisting and industrial development.

Note: 1400–1600 µs represents the stopped state. Moving closer to 500 µs or 2500 µs yields higher speed and torque (faster rotation).
