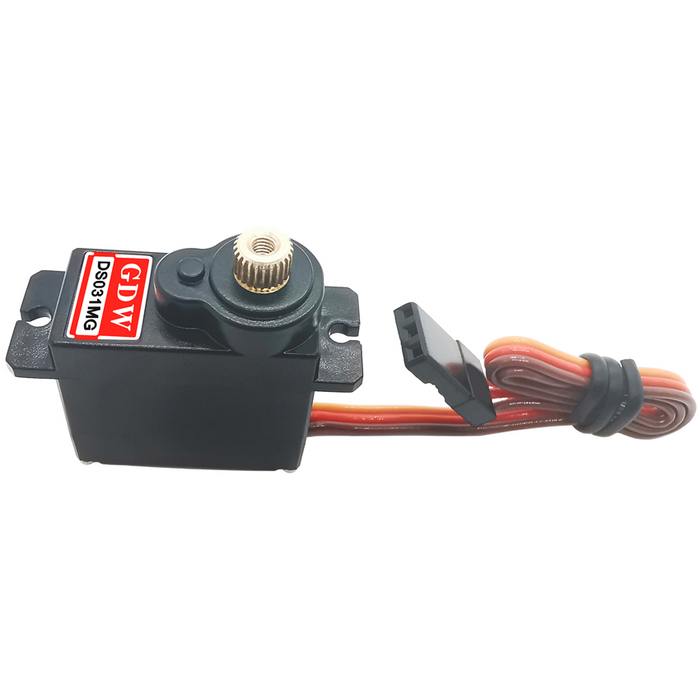

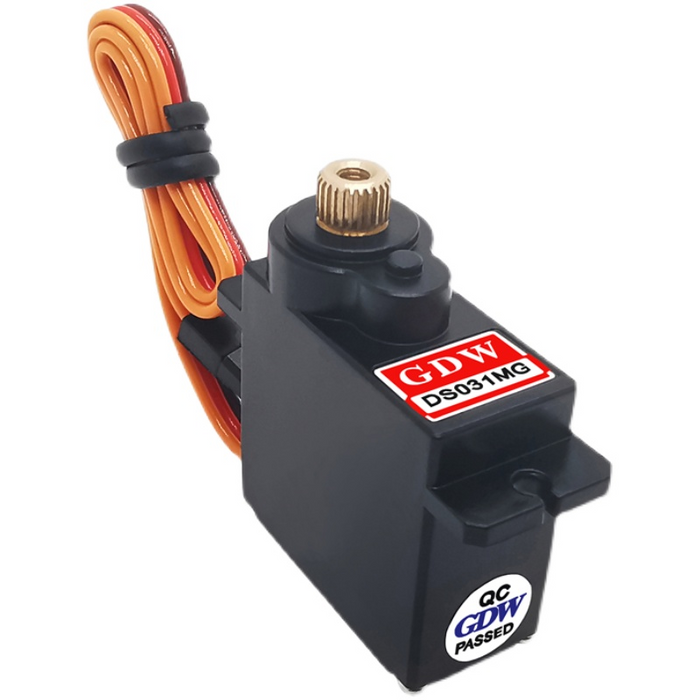

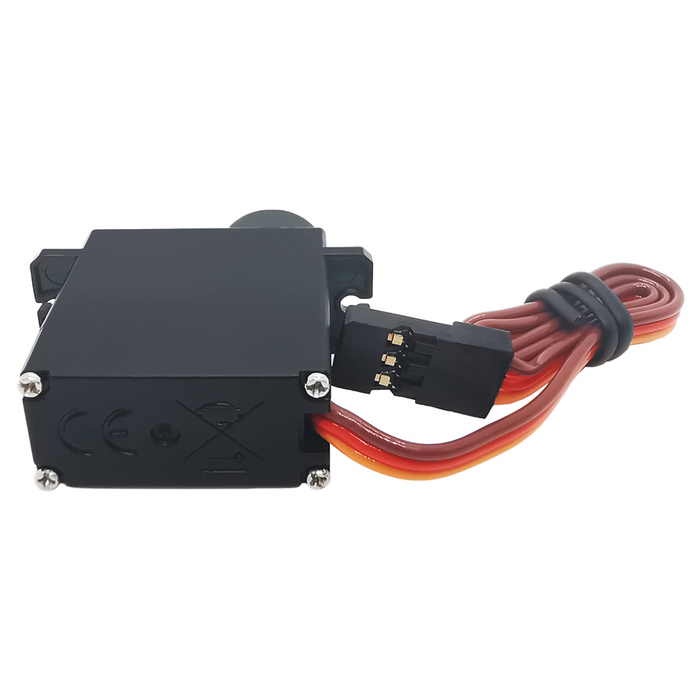

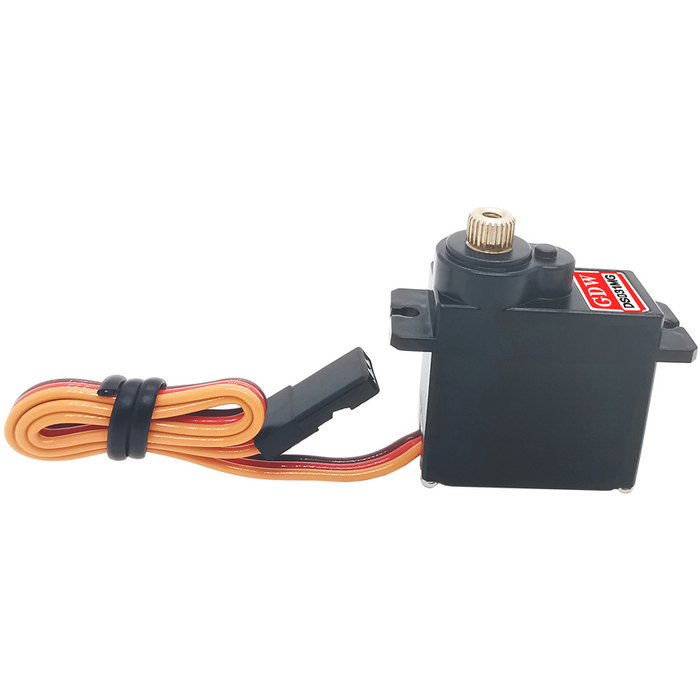

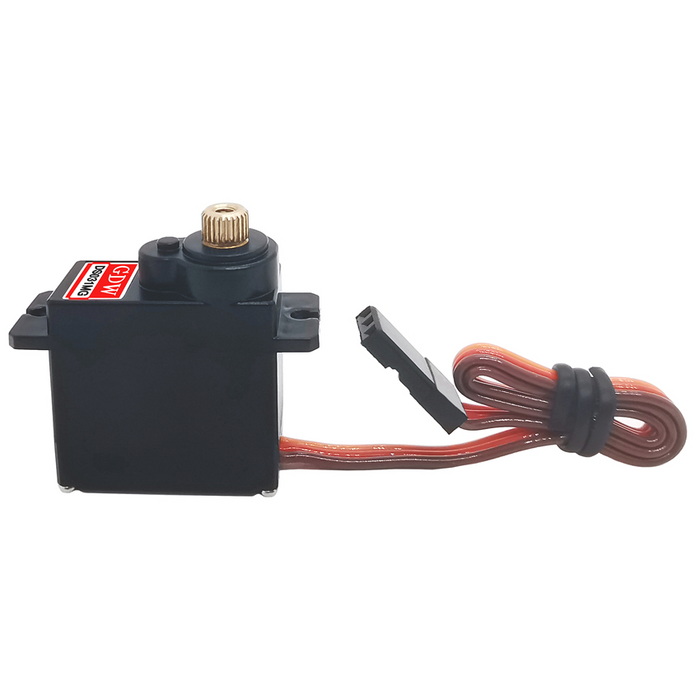

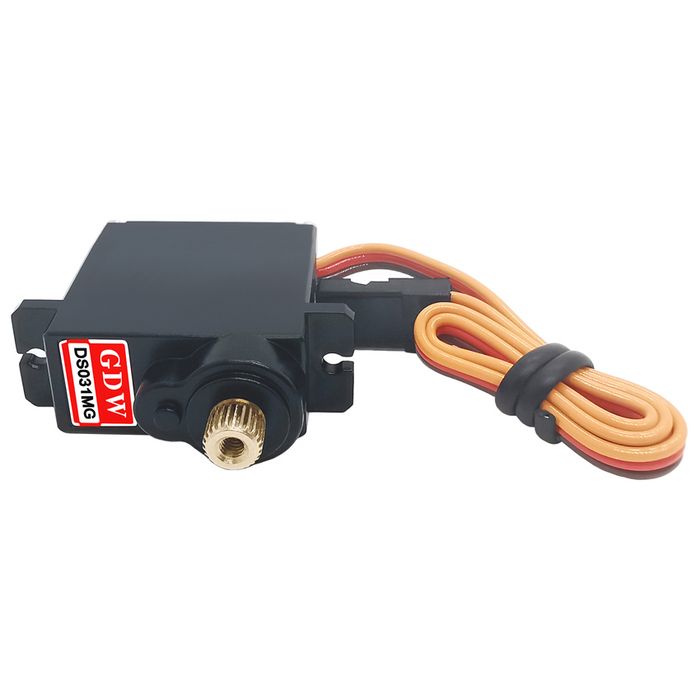

Name: GDW DS031MG Metal Gear Micro Digital Servo
Brand: UAVMODEL
SKU: tzj1789781615357
Price: 3.30 USD
Availability: InStock

GDW DS031MG Metal Gear Micro Digital Servo

$3.30

$3.30 $5.50

$3.30

$3.30 $5.50

Default angle of RC servo monitoring: ≈60°

Pulse width range: 1000-2000μs; Controllable angle: 90°
Pulse width range: 900-2100μs; Controllable angle: 120°

Applicable to: RC cars, RC boats, RC aircraft, helicopters, fixed-wing aircraft, etc.
Pulse width range: 500-2500μs; Controllable angle: 180°

Applicable to: Robot joints, industrial development, etc.

Note: Technical communication, 2D/3D diagrams are supported.

For VAT invoices, please contact customer service; 13% VAT invoices can be provided.

Gliding World Electronic Technology Co., Ltd. (Dongguan)

— DIGITAL SERVO —

Specification	Details	Specification	Details
Rated Voltage	DC 4.8-7.4V	Gear Material	Carbon Steel C3604
Communication Protocol	PWM	Shell Material	Nylon + 30% Glass Fiber
Operating Temperature	-20° — +60°	Motor Type	Core Motor (10*12mm)
Pulse Width Range	500μs-1500μs-2500μs	Wire Length	306mm (185mm Core Wire)
Working Frequency	333Hz	External Dimensions	23.612mm26.8mm
Operation Angle	180° ±5°	Bearing Quantity	2BB
Operation Direction	Clockwise/Counterclockwise (Optional: CW/CCW/CCW 32 Option1)	Net Weight	14g ±5%

Parameter	4.8V	6.0V	7.4V
Operating Voltage	4.8V	6.0V	7.4V
Idle Current	8mA	10mA	15mA
No-Load Current	220mA	280mA	350mA
Stall Current	1.2A	1.4A	1.7A
Dead Band	3μs	3μs	3μs
No-Load Speed	0.13sec/60°	0.11sec/60°	0.09sec/60°
Rated Torque	2.25kg	2.7kg	3.2kg
	(0.68kg.cm)	(0.86kg.cm)	(0.98kg.cm)
Signal Level	HIGH: min 2.3V-max 5V; LOW: min 0V-max 0.99V

The product list is as follows:
