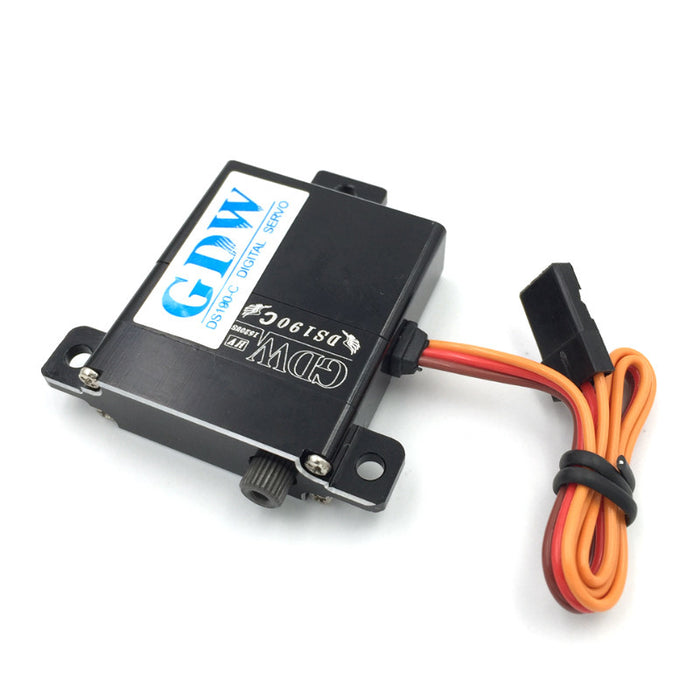

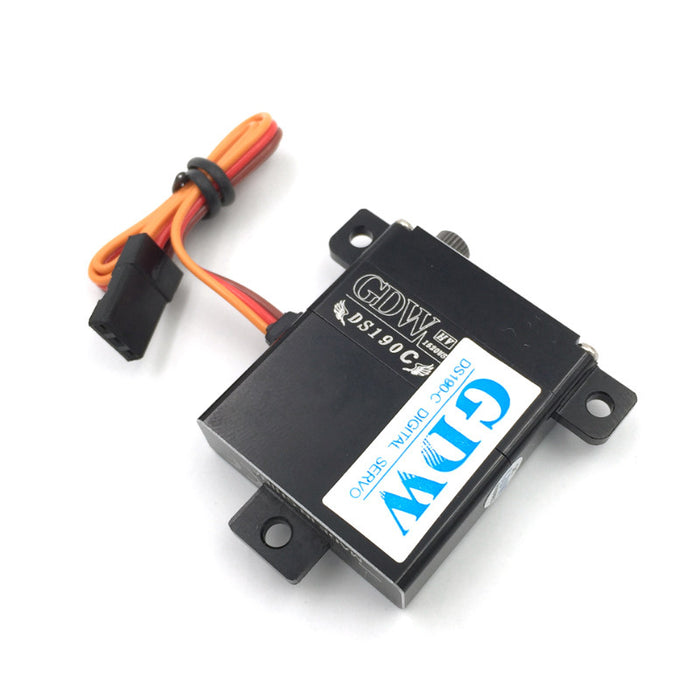

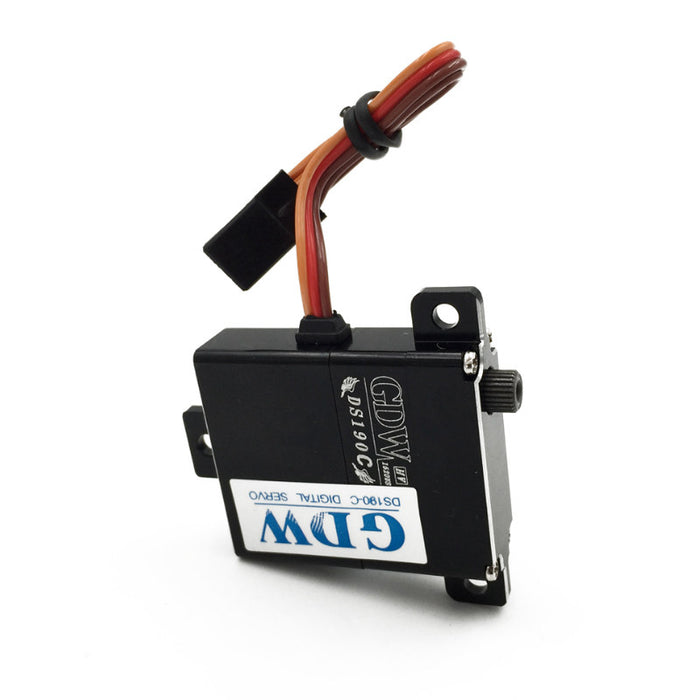

GDW DS190C Servo for Fixed Wing RC Aircraft
$29.40
Sale price
$29.40
Regular price
$42.00
DS190C Specification Sheet
1. General Specs
| Parameter | Specification |
| Operating Voltage Range | 4.8V to 8.4V |
| Operating Temperature Range | -20°C to +60°C |
| Working Frequency | 1520µs / 333Hz |
2. Bench Test Reported Values
| Parameter | @ 6.0V | @ 7.4V | @ 8.4V |
| Speed | 0.11 sec/60° | 0.09 sec/60° (corrected from '0.9sec') | 0.07 sec/60° |
| Torque | 7.0 kg.cm | 8.0 kg.cm | 9.0 kg.cm |
| Fast Continuous Operating Current | 200mA | 300mA | 4000mA |
| Stall Current | 1100mA | 1300mA | 1500mA |
| Dead Band Width | 2µs |
Note: The original image lists the 7.4V speed as "0.9sec/60°", which is likely a typographical error in the original document. It has been corrected to 0.09 sec/60° in the table above to maintain logical consistency.
3. General Data
| Parameter | Specification |
| Motor Type | Coreless motor (10*20mm) |
| Potentiometer Type | Japan Noble 220° |
| Chip Type | Digital |
| Weight | 28 ± 1g |
| Gear Material | Titanium-plated (Surface treatment of titanium) |
| Horn Gear Spline | 25T / φ 4.9mm |
| Wire Length | 220 ± 5mm |
| Wire Diameter | 0.15mm² |
| Number of Wire Cores | 30 |
