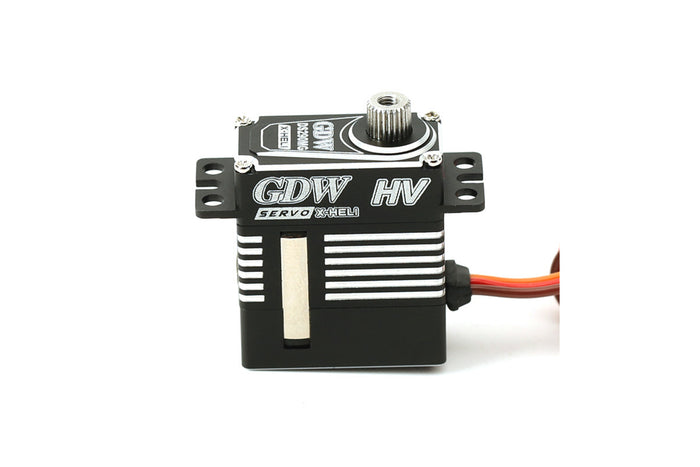

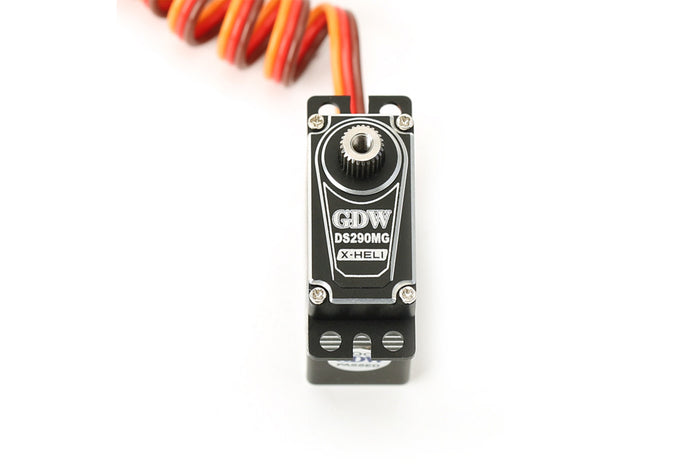

KST DS290MG Digital Metal Gear Servo
General Specifications
| Operating Voltage Range | 4.8V up to 8.4V |
| Operating Temp. Range | -20°C up to +60°C |
| Working Frequency | 1520us / 333Hz |
| Dead Band Width | 2 μs |
Bench Test Performance
| Test Voltage | 4.8V | 6.0V | 7.4V |
|---|---|---|---|
| Speed (60°) | 0.084 sec | 0.072 sec | 0.065 sec |
| Torque | 4.1 kg·cm | 4.8 kg·cm | 5.6 kg·cm |
| Continuous Current | 350 mA | 400 mA | 450 mA |
| Stall Current | 1100 mA | 1200 mA | 1300 mA |
Hardware Specifications
| Motor Type | Coreless Motor (12 x 15 mm) |
| Potentiometer Type | Japan Noble 220° |
| Chip Type | Digital |
| Weight | 20 ± 1g |

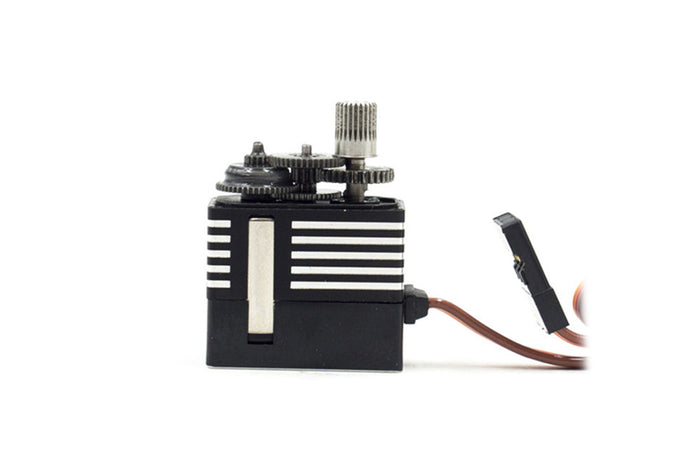

| Gear Material | Titanium Surface Treated Gears |
| Horn Gear Spline | 25T (Φ4.9 mm) |

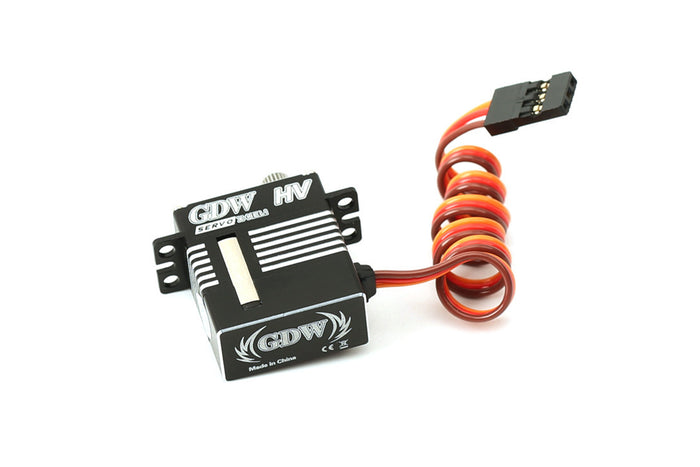

| Wire Specifications | Length: 220 ± 5 mm Diameter: 0.15 mm² (30 Cores) |
KST DS595MG Digital Metal Gear Servo
⚠️ IMPORTANT NOTICE: This is a narrow-band servo. It cannot be connected directly to a standard receiver. It must be configured and operated through a gyroscope (gyro) with the 760us setting selected!
General Specifications
| Operating Voltage Range | 4.8V up to 8.4V |
| Operating Temp. Range | -20°C up to +60°C |
| Working Frequency | 760us / 333Hz (Narrow Band) |
| Dead Band Width | 2 μs |
Bench Test Performance
| Test Voltage | 6.0V | 7.4V | 8.4V |
|---|---|---|---|
| Speed (60°) | 0.04 sec | 0.035 sec | 0.03 sec |
| Torque | 4.5 kg·cm | 5.0 kg·cm | 5.5 kg·cm |
| Continuous Current | 1000 mA | 1200 mA | 1500 mA |
| Stall Current | 2000 mA | 2200 mA | 2500 mA |
Hardware Specifications
| Motor Type | Coreless Motor (17 x 15 mm) |
| Potentiometer Type | Japan Noble 220° |
| Chip Type | Digital |
| Weight | 46 ± 1g |
| Gear Material | Titanium Surface Treated Gears |
| Horn Gear Spline | 25T (Φ5.9 mm) |
| Wire Specifications |
Length: 220 ± 5 mm Diameter: 0.15 mm² (30 Cores) |
