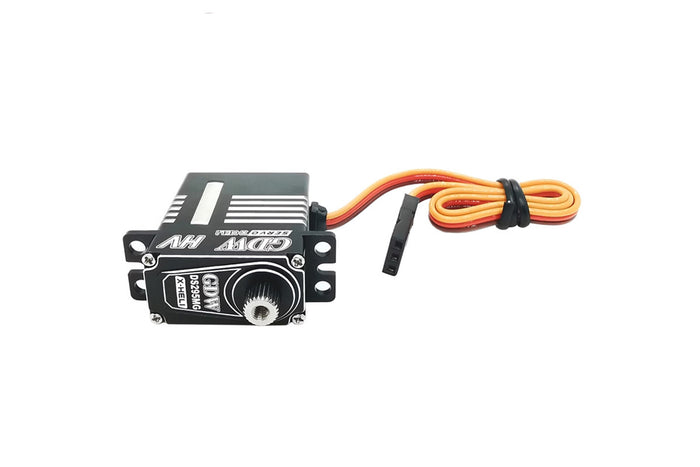

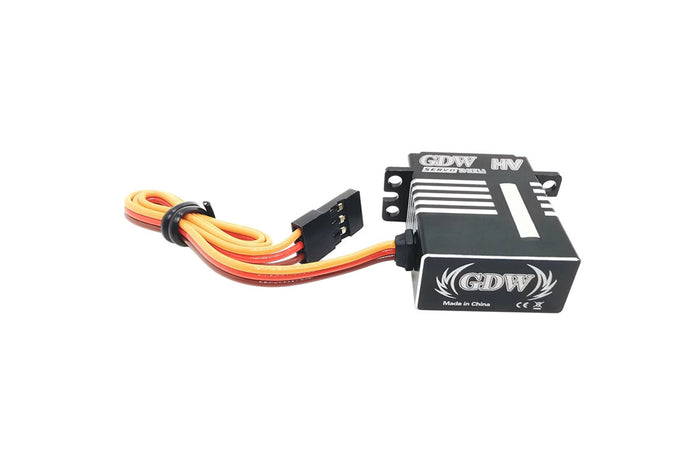

GDW DS295MG Metal Gear Narrow Band Tail Lock Micro Servo
$26.88
Sale price
$26.88
Regular price
$42.00
Skip to product information
GDW DS295MG Metal Gear Narrow Band Tail Lock Micro Servo
$26.88
Sale price
$26.88
Regular price
$42.00
DS295MG Datasheet
General Specs
-
Operation Voltage Range: 4.8V to 8.4V
-
Operation Temperature Range: -20°C to +60°C
-
Working Frequency: 760µs / 333Hz
Bench Test Reported Values
| Parameter | @ 6.0V | @ 7.4V | @ 8.4V |
| Speed | 0.06 sec/60° | 0.05 sec/60° | 0.04 sec/60° |
| Torque | 2.8 kg·cm | 3.5 kg·cm | 4.0 kg·cm |
| Fast Continuous Operating Current | 300mA | 400mA | 500mA |
| Stall Current | 1100mA | 1200mA | 1300mA |
-
Dead Band Width: 2µs
General Data
-
Motor Type: Coreless motor (12mm × 15mm)
-
Potentiometer Type: Japan Noble 220°
-
Chip Type: Digital
-
Weight: 20g ± 1g
-
Gear Material: Titanium surface treatment
-
Horn Gear Spline: 25T (Φ 4.9mm)
-
Wire Length: 220mm ± 5mm
-
Wire Diameter: 0.15mm²
-
Number of Wire Cores: 30
Physical Dimensions (from Diagram)
-
Overall Length: 32mm (including mounting tabs)
-
Mounting Hole Spacing: 28mm (lengthwise), 7mm (widthwise)
-
Mounting Hole Diameter: 4 × Φ2.5mm
-
Body Width: 12mm
-
Overall Height: 27.4mm (including the output shaft)
-
Main Shaft Thread: M2.3
