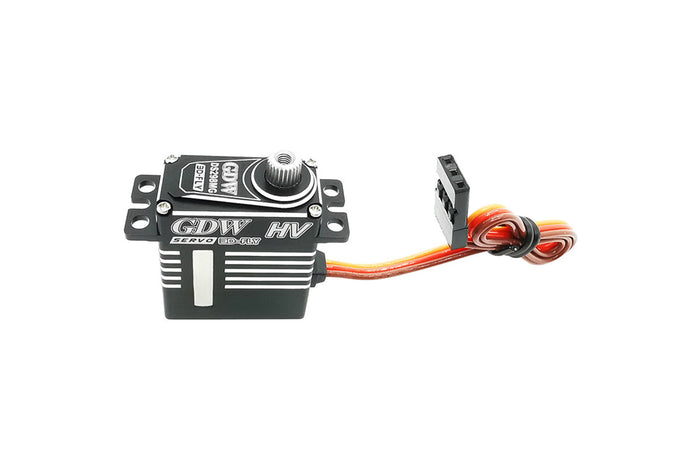

GDW DS298MG Compact High Torque Fixed Wing Servo
DS298MG - Cable length 220mm
$32.37
Sale price
$32.37
Regular price
$41.50
Skip to product information
GDW DS298MG Compact High Torque Fixed Wing Servo
$32.37
Sale price
$32.37
Regular price
$41.50
DS289MG Specification Sheet
1. General Specs
| Parameter | Specification |
| Operation Voltage Range | 4.8V up to 8.4V |
| Operation Temperature Range | -10°C up to +60°C |
| Working Frequency | 1520µs / 333Hz |
2. Bench Tests Reported Values
| Parameter | @ 6.0V | @ 7.4V | @ 8.4V |
| Speed | 0.12 sec/60° | 0.10 sec/60° | 0.085 sec/60° |
| Torque | 6.5 kg.cm | 8.0 kg.cm | 9.1 kg.cm |
| Fast Continuous Operating Current | 350mA | 400mA | 450mA |
| Stall Current | 1300mA | 1900mA | 2400mA |
| Dead Band Width | 3µs |
3. General Data
| Parameter | Specification |
| Motor Type | Coreless motor (12*15mm) |
| Potentiometer Type | Japan Noble 220° |
| Chip Type | Digital |
| Weight | 20 ± 1g |
| Gear Material | Titanium-plated (The surface treatment of titanium) |
| Horn Gear Spline | 25T / φ 4.9mm |
| Wire Length | 220 ± 5mm |
| Wire Diameter | 0.15mm² |
| Number of Wire Cores | 30 |
