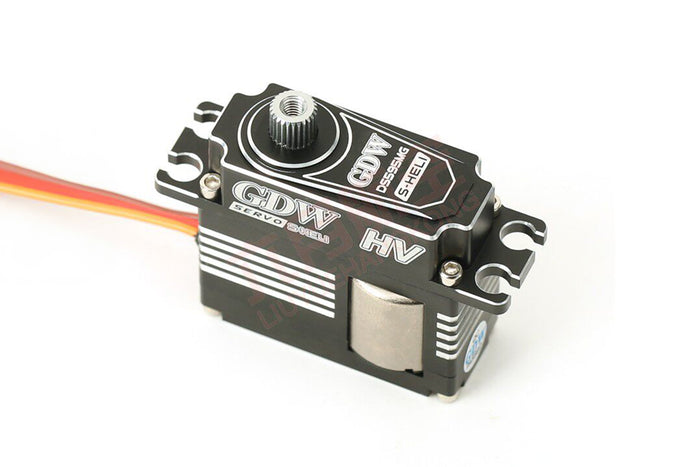

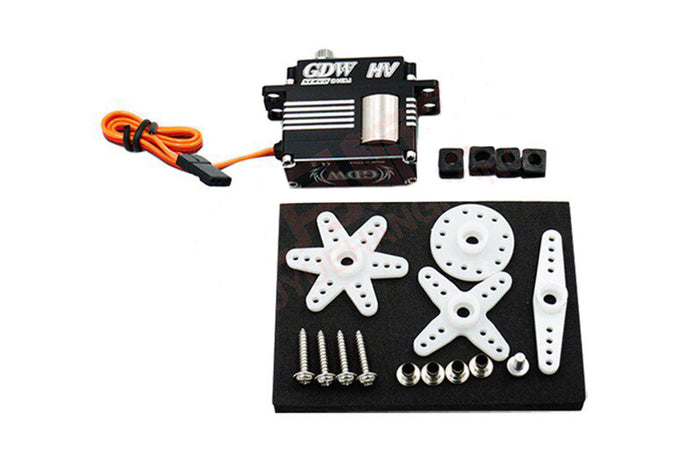

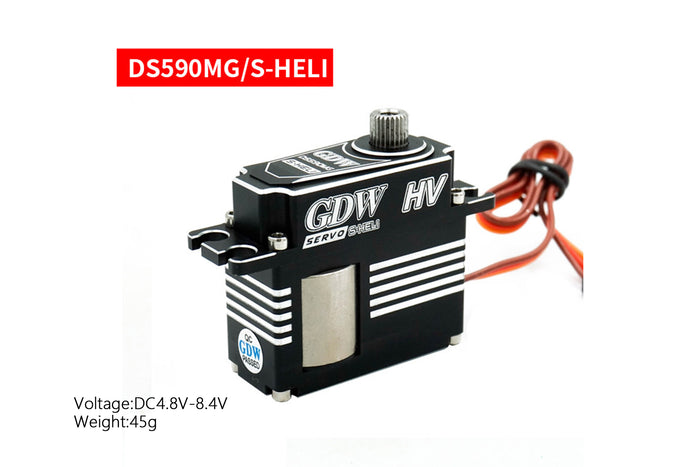

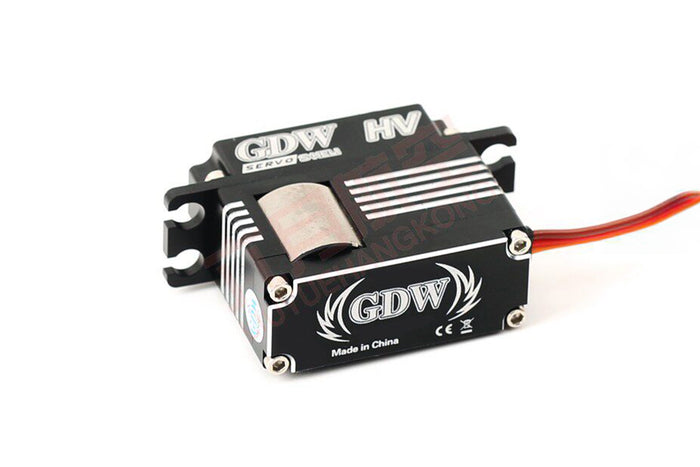

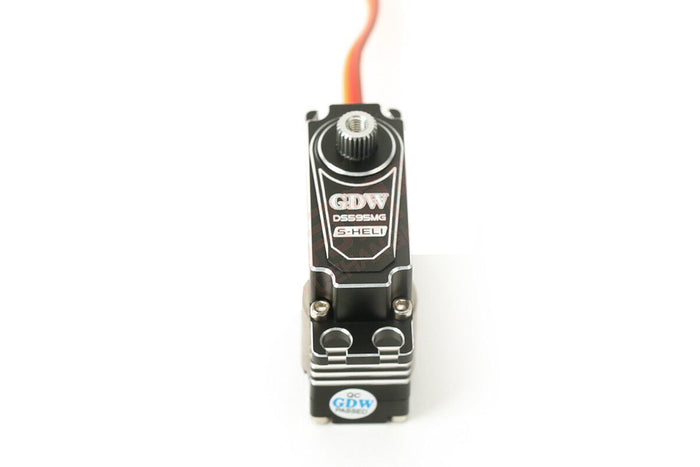

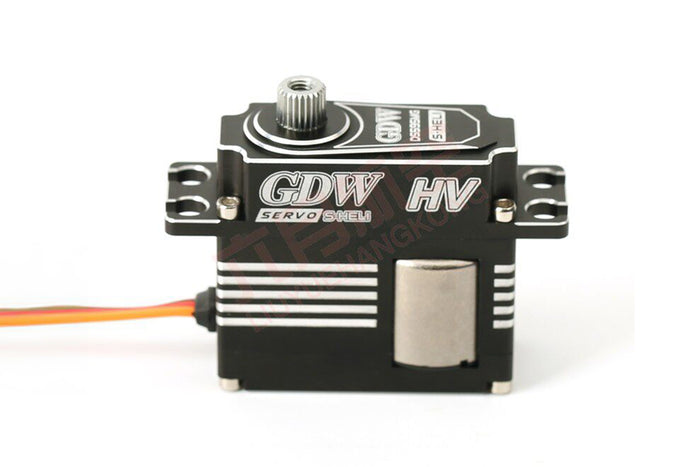

GDW DS590MG Mid size Metal Gear Swashplate Servo
DS590MG
$55.30
Sale price
$55.30
Regular price
$70.00
Skip to product information
GDW DS590MG Mid size Metal Gear Swashplate Servo
$55.30
Sale price
$55.30
Regular price
$70.00
Product Specifications Comparison: DS590MG vs. DS595MG
1. General Specs
| Parameter | DS590MG | DS595MG |
| Operation Voltage Range | 4.8V to 8.4V | 4.8V to 8.4V |
| Operation Temperature Range | -20°C to +60°C | -20°C to +60°C |
| Working Frequency | 1520µs / 333Hz | 760µs / 333Hz |
2. Bench Tests Reported Values
| Test Voltage | Parameter | DS590MG | DS595MG |
| @ 6.0V | Speed | 0.09 sec/60° | 0.04 sec/60° |
| Torque | 9.0 kg·cm | 4.5 kg·cm | |
| Fast Continuous Operating Current | 1000mA | 1000mA | |
| Stall Current | 2000mA | 2000mA | |
| @ 7.4V | Speed | 0.08 sec/60° | 0.035 sec/60° |
| Torque | 10.5 kg·cm | 5.0 kg·cm | |
| Fast Continuous Operating Current | 1200mA | 1200mA | |
| Stall Current | 2200mA | 2200mA | |
| @ 8.4V | Speed | 0.07 sec/60° | 0.03 sec/60° |
| Torque | 12.0 kg·cm | 5.5 kg·cm | |
| Fast Continuous Operating Current | 1500mA | 1500mA | |
| Stall Current | 2500mA | 2500mA | |
| Any Voltage | Dead Band Width | 2µs | 2µs |
3. General Data
| Parameter | DS590MG | DS595MG |
| Motor Type | Coreless motor (17mm × 15mm) | Coreless motor (17mm × 15mm) |
| Potentiometer Type | Japan Noble 220° | Japan Noble 220° |
| Chip Type | Digital | Digital |
| Weight | 46g ± 1g | 46g ± 1g |
| Gear Material | Titanium surface treatment | Titanium surface treatment |
| Horn Gear Spline | 25T (Φ 5.9mm) | 25T (Φ 5.9mm) |
| Wire Length | 220mm ± 5mm | 220mm ± 5mm |
| Wire Diameter | 0.15mm² | 0.15mm² |
| Number of Wire Cores | 30 | 30 |
