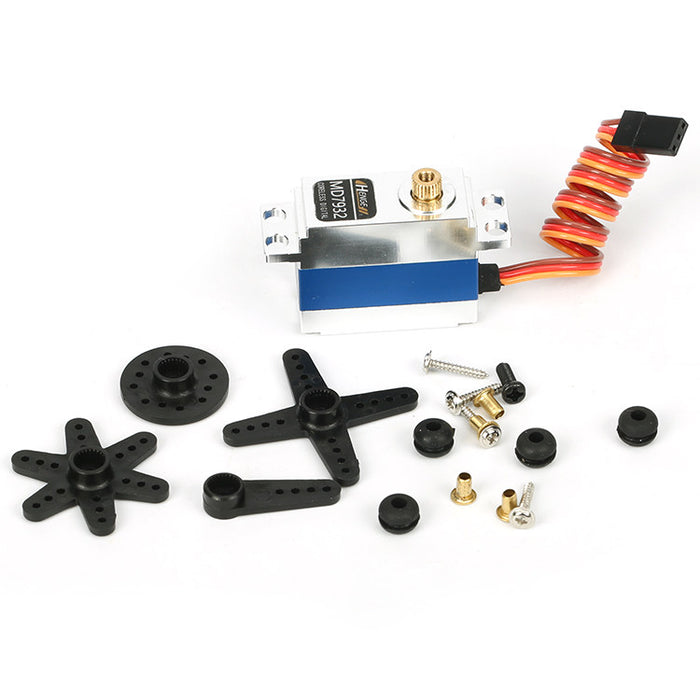

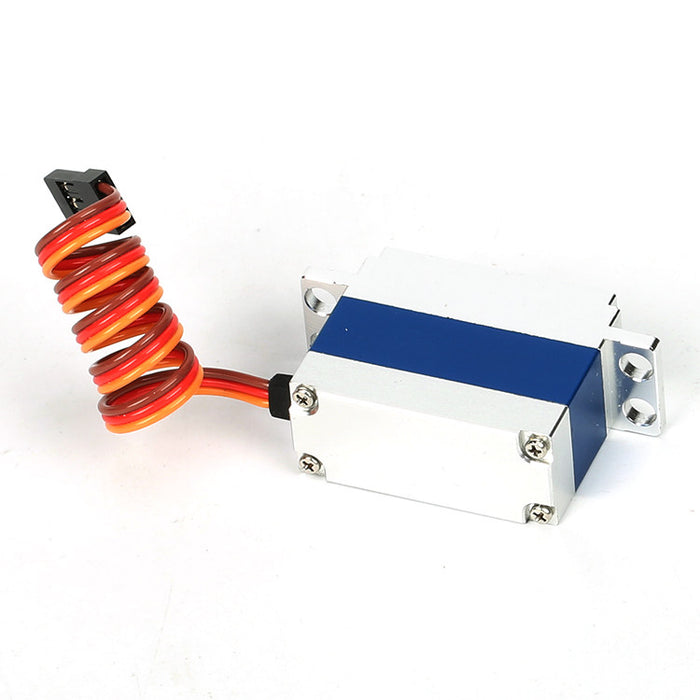

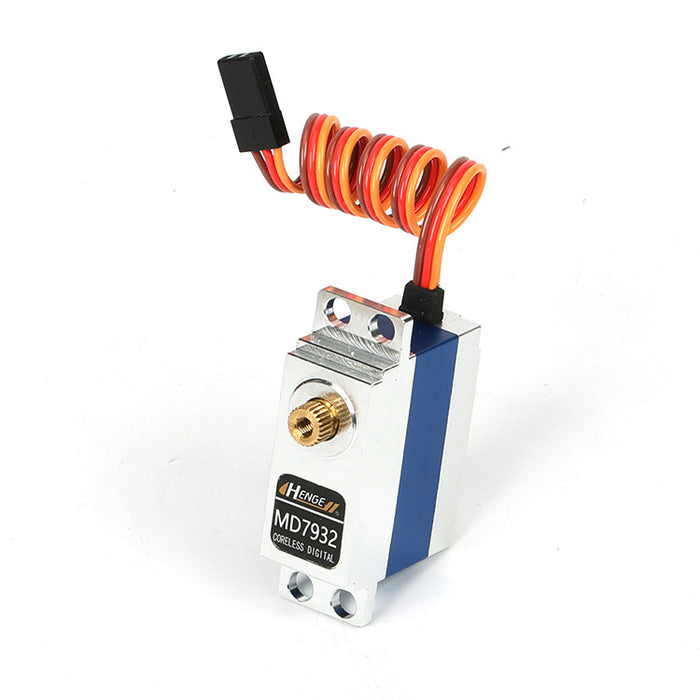

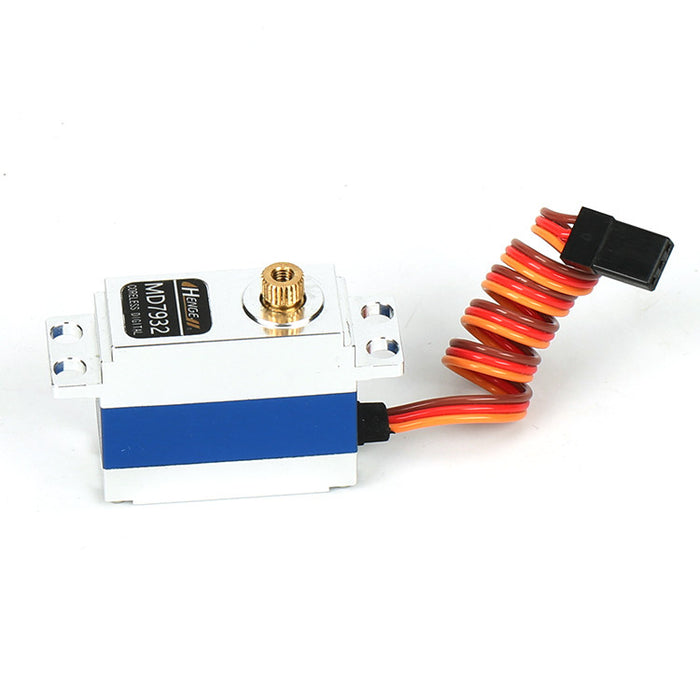

Hengji MD7932 Metal-Cased Servo with Metal Gears
$29.93
Sale price
$29.93
Regular price
$41.00
Features
| Description |
| Name: MD7932 Metal Gear Digital Servo |
| High-precision CNC machined metal housing. |
| Adopts high-strength, high-precision, and wear-resistant metal gears, ensuring the servo output error remains exceptionally small even after long-term operation. |
| MD7932 utilizes a high-quality coreless motor to improve the servo's efficiency and lifespan. |
| MD7932 adopts an imported Japanese potentiometer of the same quality and model as Futaba servos, with a lifespan of up to 1 million cycles. |
| MD7932 is used for tail-lock control on 450 and 500 helicopters. |
Specifications
| Specifications | MD7932 Value |
| Operating Voltage (V) | 4.5 ~ 6.0V |
| Operating Temperature (°C) | -20 ~ 60 |
| Operating Speed |
0.09 sec/60° @ 4.8V 0.07 sec/60° @ 6.0V |
| Torque |
3.5 Kg·cm @ 4.8V 4.1 Kg·cm @ 6.0V |
| Dead Band Width (usec) | ≤ 3usec |
| Neutral Pulse | 1520us Wide Band |
| MAX Rotation Angle | +or-65° |
| Motor | 5-Pole Coreless |
| Potentiometer | Imported from Japan |
| Dimensions (mm) | 35.0 x 15 x 29.2mm |
| Weight (g) | 37g |
| Gears | 6 Metal Gears |
| Wire Length (cm) | 21 |
