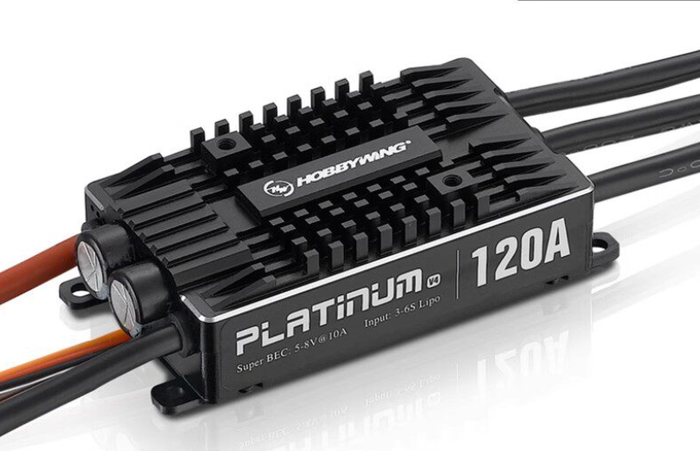

Hobbywing Platinum 120A ESC for Fixed-Wing Aircraft and Helicopters
$91.52
Sale price
$91.52
Regular price
$143.00
Skip to product information
Hobbywing Platinum 120A ESC for Fixed-Wing Aircraft and Helicopters
$91.52
Sale price
$91.52
Regular price
$143.00
| Category | Specification |
| Battery Cells | 3–6S |
| Continuous Current | 120A |
| Peak Current | 150A |
| UBEC Output | 5/8V-10A |
| Output Connector | 4.0mm Banana Plug (Female) |
| Input Connector | None |
| Dimensions | 84.3 * 38 * 20.4 mm |
| Weight | 107g |
| Motor Type | Brushless |
| Application | Helicopter |
|
Category |
Item | Specification |
| General | Product Name | Platinum 120A V5 |
| Product Number | 30203402 | |
| Type | Motor Type | Brushless |
| Voltage Type | Regular | |
| Electrical | Continuous/Peak Current | 120A / 150A |
| Supported Battery | 3–8S LiPo | |
| BEC Output | Switch mode: 5–12V, 10A continuous, 30A peak | |
| Connectivity | Input Wires | Red-10AWG-150mm1, Black-10AWG-150mm1 |
| Output Wires | Black-12AWG-100mm*3 | |
| Input Connectors | None | |
| Output Connectors | 4.0mm Gold Connectors (Female) |
