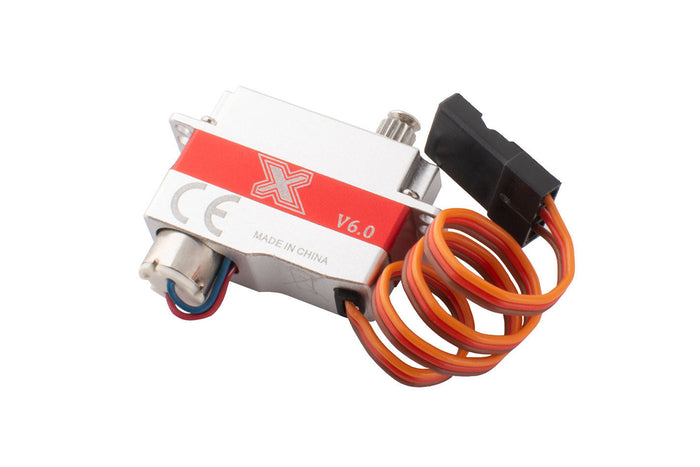

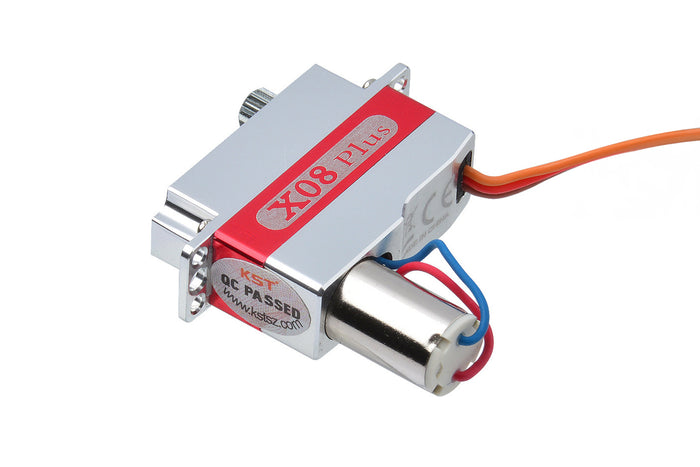

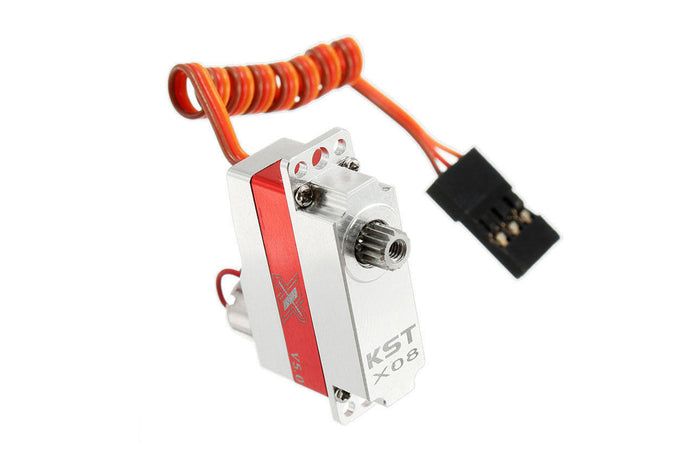

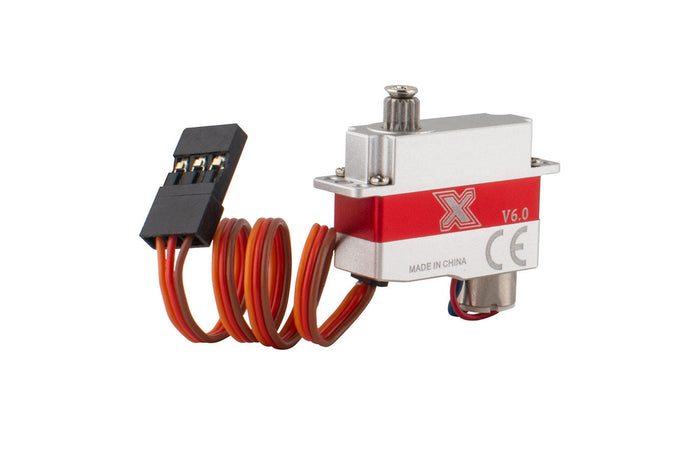

KST X08 X08H PLUS Micro Metal Gear Digital Servo
X08 PLUS Vertical Mount
$47.60
Sale price
$47.60
Regular price
$68.00
Skip to product information
KST X08 X08H PLUS Micro Metal Gear Digital Servo
$47.60
Sale price
$47.60
Regular price
$68.00

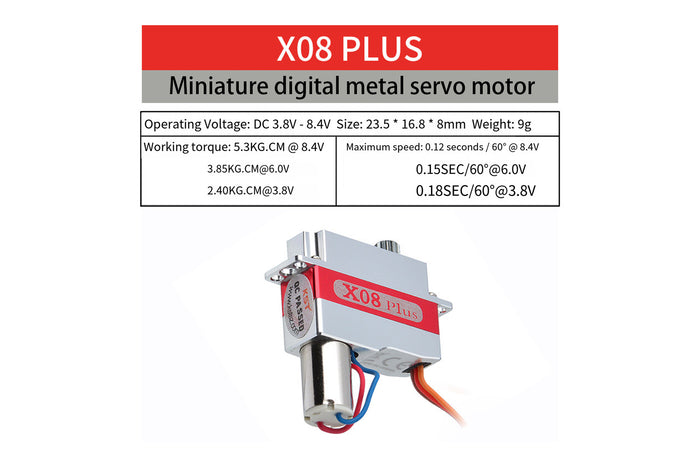

X08 PLUS Specifications
| Parameter | Value |
| Rated Voltage | DC 7.4V |
| Operating Voltage Range | DC 3.8V–8.4V |
| Stall Torque | 4.8 kg·cm @ 7.4V |
| Rated Torque | 1.3 kg·cm @ 7.4V |
| Stall Current | 0.95A |
| Rated Current | 0.24A |
| No-Load Speed | 526°/sec |
| Rated Speed | 375°/sec |
| Travel / Stroke | ±60° @ 1000–2000 µs |
| Operating Temperature | -10°C to +55°C |
| Storage Temperature | -20°C to +65°C |
PWM Pulse Signal
| Parameter | Value |
| Pulse Voltage |
TTL-Level: HIGH: min. 3.3V, max VCC TTL-Level: LOW: min. 0.0V, max 1.5V |
| Pulse Width Range | 1000–2000 µs |
| Angle Corresponding to Pulse Width (-60° / 0° / +60°) | 1000 µs / 1500 µs / 2000 µs |
| Resolution | < 2 µs |
Material Performance & Mechanical Specs
| Parameter | Value |
| Case Material | Aluminum Alloy |
| Motor Type | Coreless Motor |
| Gear Material | Metal |
| Position Sensor | Potentiometer |
| Angle Feedback | Optional |
| Wire Gauge | 28AWG |
| Case Dimensions | 23.5 × 8 × 16.8 mm |
| Weight | 9g |

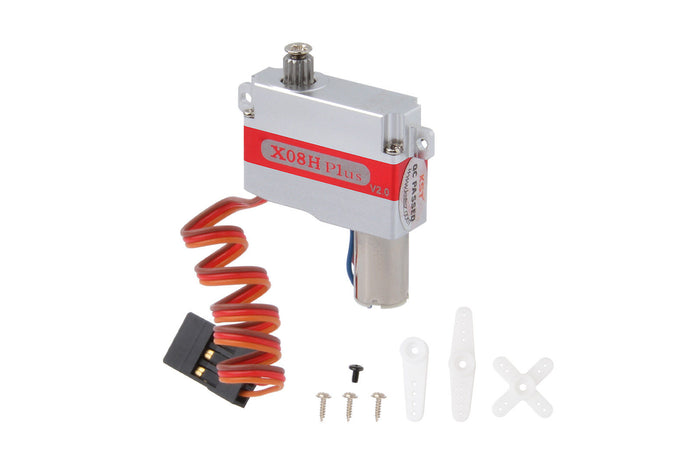

X08H PLUS PWM Pulse Signal
| Parameter | Value |
| Pulse Voltage |
TTL-Level: HIGH: min. 3.3V, max VCC TTL-Level: LOW: min. 0.0V, max 1.5V |
| Pulse Width Range | 1000–2000 µs |
| Angle Corresponding to Pulse Width (-60° / 0° / +60°) | 1000 µs / 1500 µs / 2000 µs |
| Resolution | < 2 µs |
Material Performance & Mechanical Specs
| Parameter | Value |
| Case Material | Aluminum Alloy |
| Motor Type | Coreless Motor |
| Gear Material | Metal |
| Position Sensor | Potentiometer |
| Angle Feedback | Optional |
| Wire Gauge | 28AWG |
| Case Dimensions | 23.5 × 8 × 16.8 mm |
| Weight | 9g |
Specifications
| Parameter | Value |
| Rated Voltage | DC 7.4V |
| Operating Voltage Range | DC 3.8V–8.4V |
| Stall Torque | 4.8 kg·cm @ 7.4V |
| Rated Torque | 1.3 kg·cm @ 7.4V |
| Stall Current | 0.95A |
| Rated Current | 0.24A |
| No-Load Speed | 526°/sec |
| Rated Speed | 375°/sec |
| Travel / Stroke | ±60° @ 1000–2000 µs |
| Operating Temperature | -10°C to +55°C |
| Storage Temperature | -20°C to +65°C |
