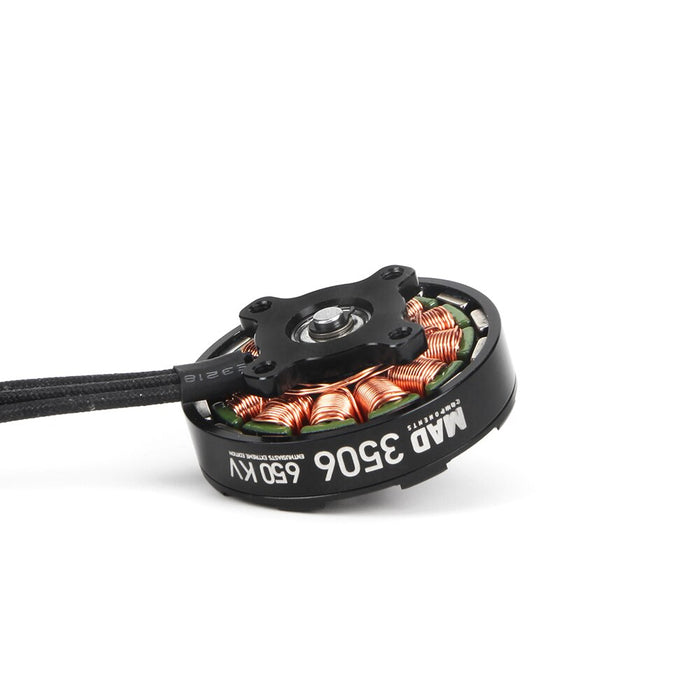

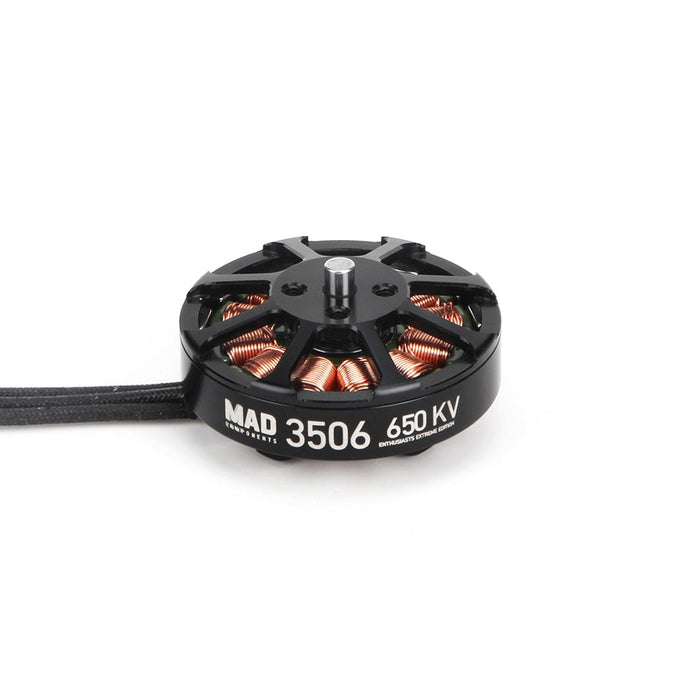

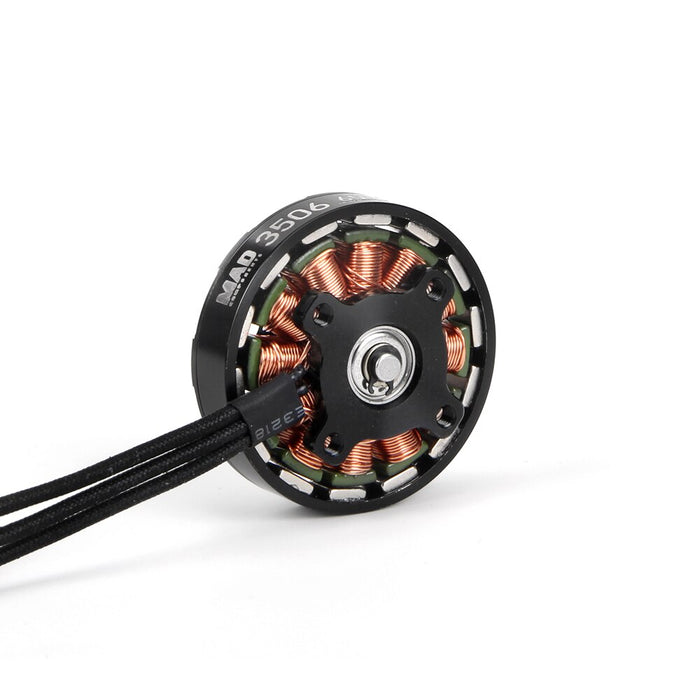

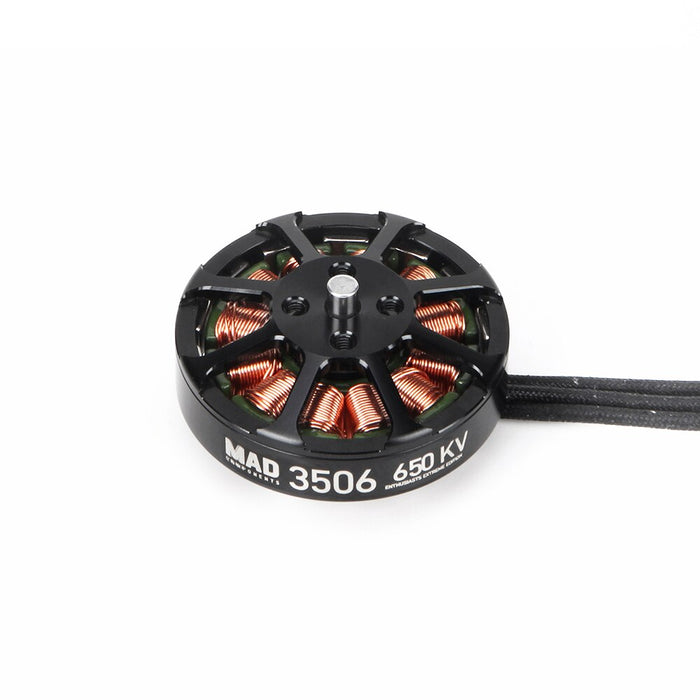

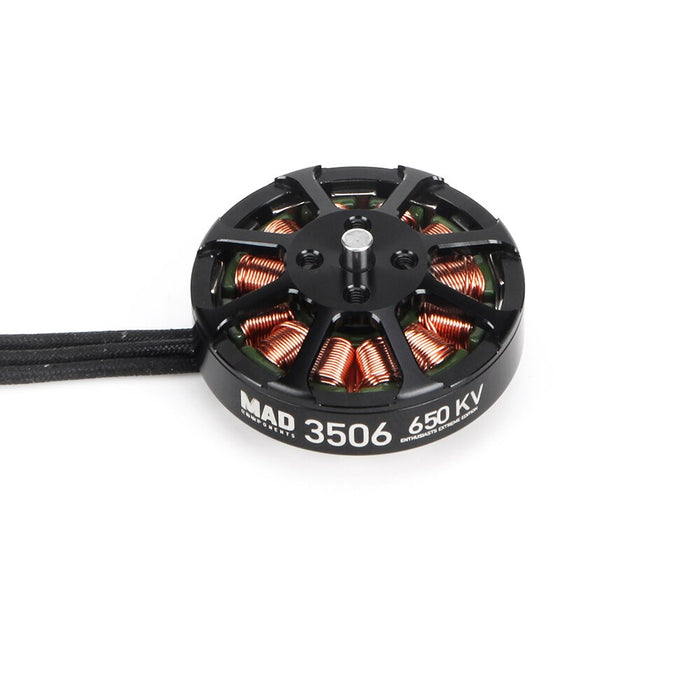

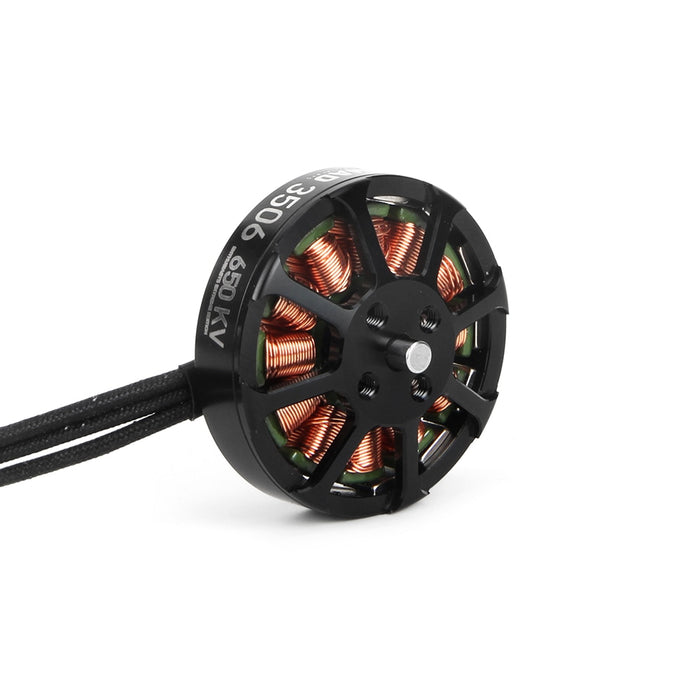

MAD 3506 400KV 460KV 650KV EEE Brushless Motor For RC Quadcopter Spare Part FPV Racing w/ NSK bearing
MAD 3506 400KV 460KV 650KV EEE Brushless Motor For RC Quadcopter Spare Part FPV Racing w/ NSK bearing
Products Description
Product Overview:
Designed for single-axis payloads of 320–720g
Optimized for 11–14" carbon fiber propellers
Delivers a maximum thrust of 1600g per motor
Ultra-lightweight at only 72.3g per motor
| Motor Model | MAD 3506 EEE V1.0 | Number of pole pairs | 7 |
| Stator | Anticorrosive | Varnished wire Degree | 150°C |
| Motor Size | D:42.5 × 23.8 mm | Magnet Degree | 150°C |
| Degree of Protection | Rain protection | Cable Length | 150 mm 18# Awg(Black) silicone |
| Centrifugal Heat Dissipation | Independent | Rotor Balance | ≤5 mg |
| Propeller Mounting Holes | D:12 M3×4 | Motor Balance | ≤10 mg |
| Shaft Diameter | IN: 4 mm | Motor Mounting Holes | D:25 M3×4 |
| Bearing | 694ZZ*2 | Disruptive test | 500 V |
Key Features:
✔ High thrust-to-weight ratio for agile performance
✔ Precision-balanced for smooth, efficient operation
✔ Ideal for heavy-lift drones, cinematography, and industrial applications
Applicable Models:
Professional aerial photography
High-efficiency payload delivery
Demanding industrial UAV platforms
Recommended Accessories:
– ESC: AMPX 40A PRO (2-6S)
– Propellers: FLUXER PRO 13x4.4 MATT, FLUXER PRO 14x4.8 MATT
Selection and Installation Notes:
• Propeller size and pitch should match your aircraft configuration – unsuitable propellers will reduce efficiency or cause motor/ESC overload.
• Use an appropriately sized ESC and ensure the wiring harness can handle continuous and peak current.
• Ensure the structural support and connectors can withstand torque and dynamic loads.
• Perform balance checks and routine inspections before each manned flight.
• Local aviation and manned flight regulations must be followed.
Frequently Asked Questions:
Q: Which propellers should I use?
A: – Propellers: FLUXER PRO 13x4.4 MATT, FLUXER PRO 14x4.8 MATT
Q: Which ESCs are compatible?
A: Please use the model provided by the manufacturer: – ESC: AMPX 40A PRO (2-6S)
Q: What is the delivery time?
A: Delivery time is usually 7-14 days, but please confirm current stock and delivery time at checkout.
Motor Test Benshmarks

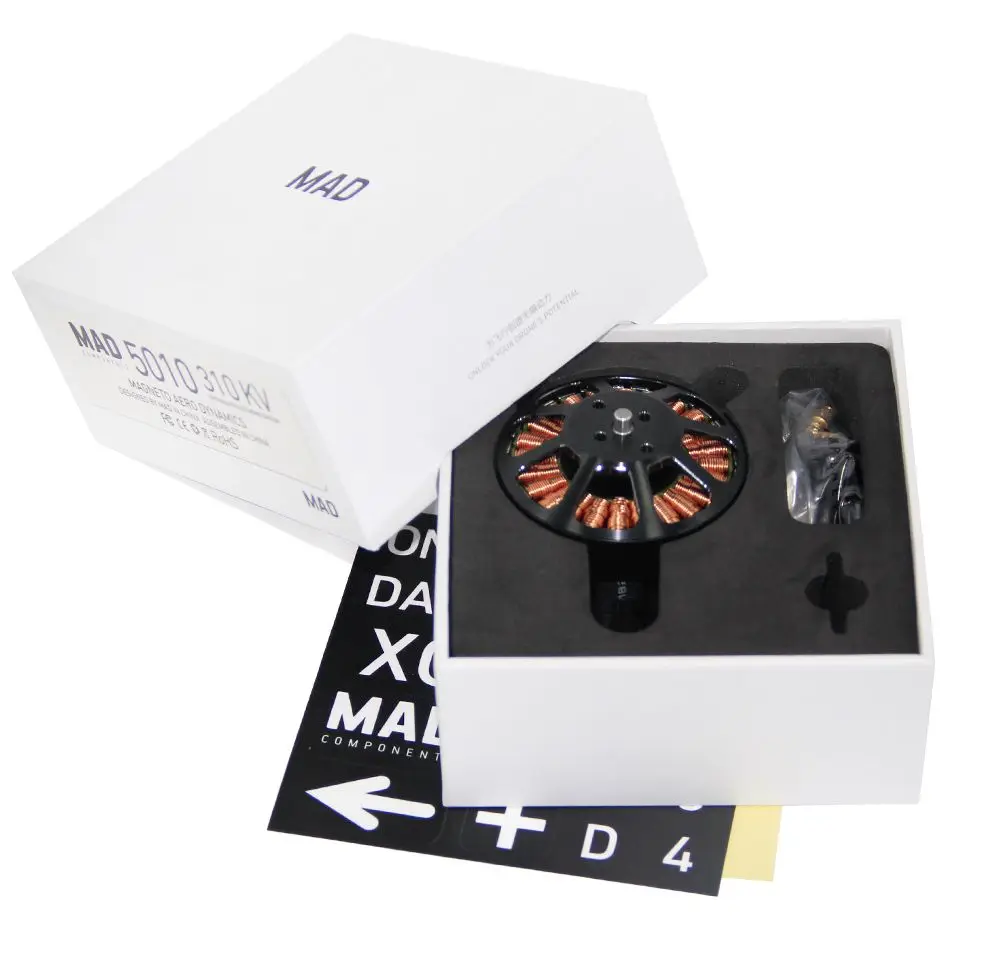

Product Packaging
