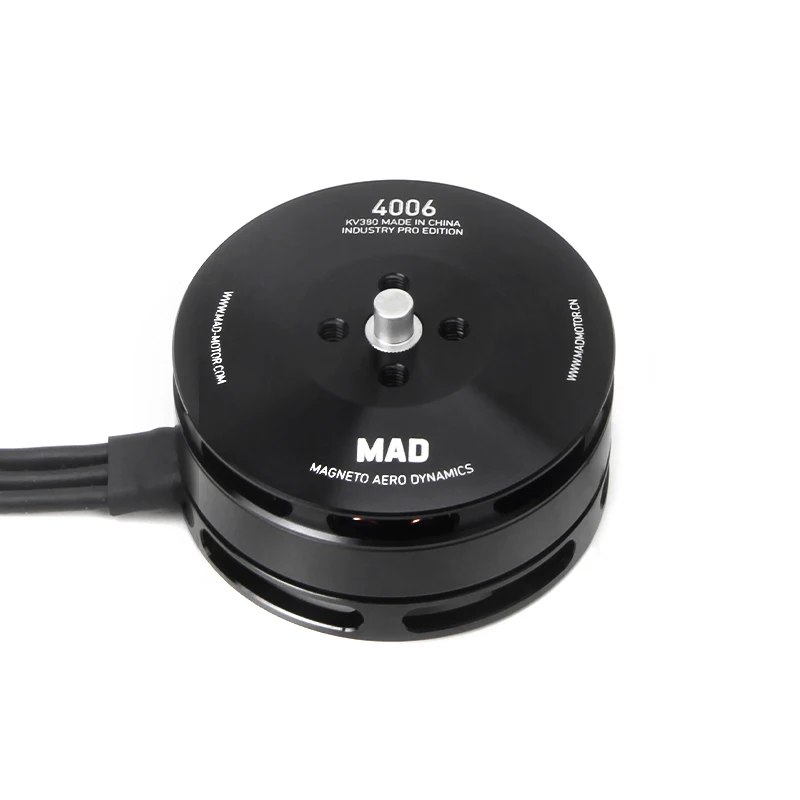

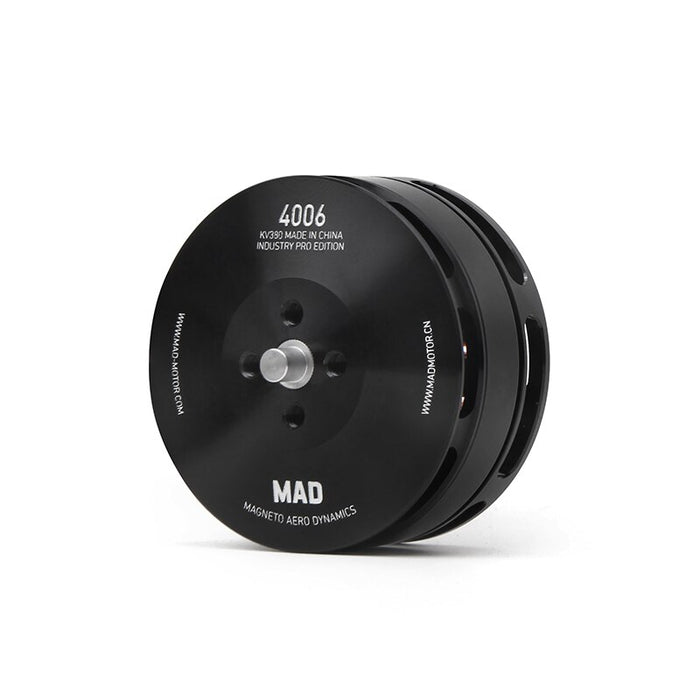

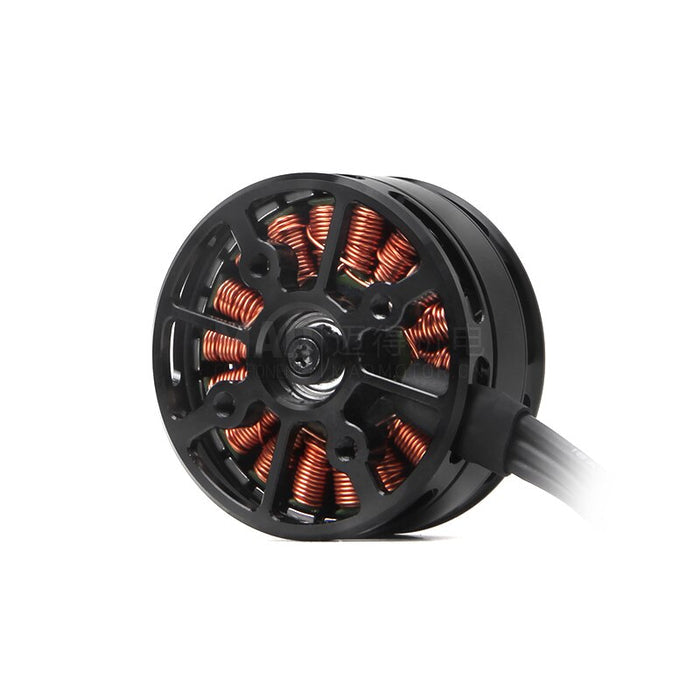

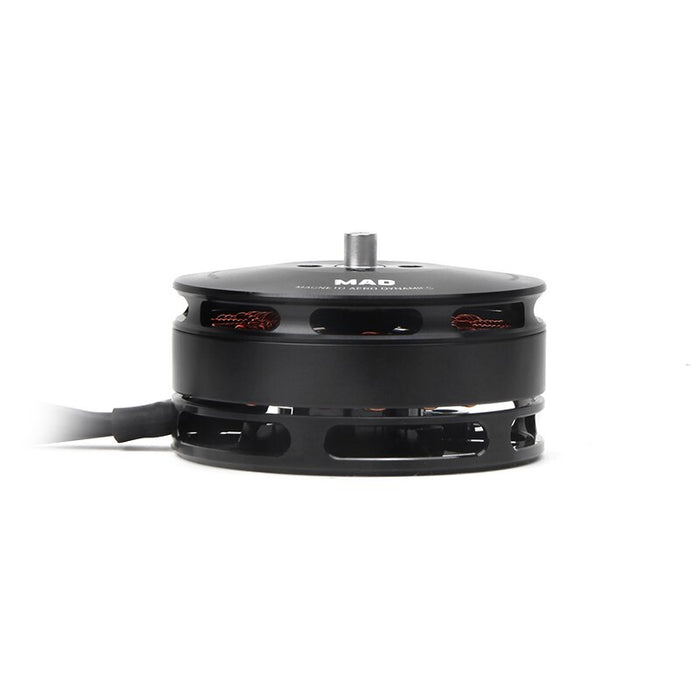

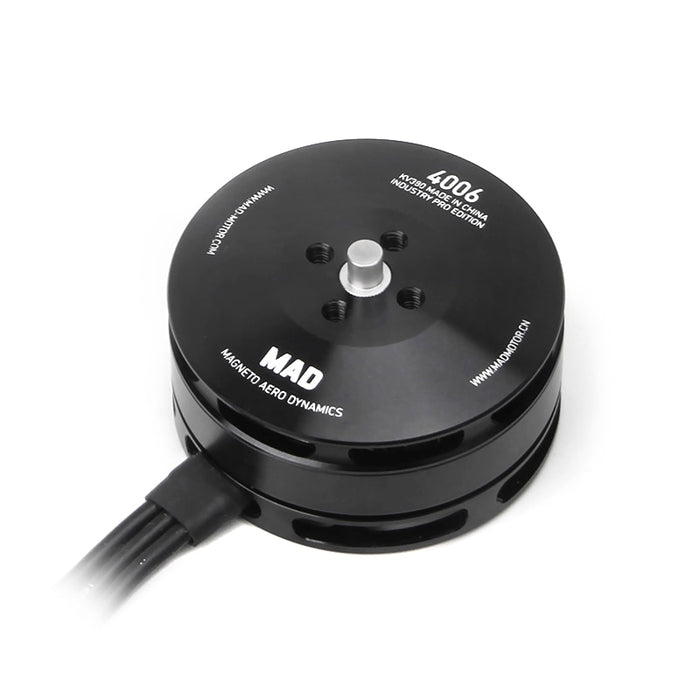

MAD 4006 KV380 KV740 IPE Motor For RC Quadcopter Spare Part FPV Racing w/ EZO bearing Brushless
MAD 4006 KV380 KV740 IPE Motor For RC Quadcopter Spare Part FPV Racing w/ EZO bearing Brushless
Products Description
Product Overview:
The MAD4006IPE is designed for single-axis loads of 550-1100g and is compatible with 13-16 inch propellers. It delivers a maximum thrust of 2200g per motor, while weighing only 79g. The MAD4006 PE is a high-performance brushless motor suitable for professional aerial photography and industrial applications. With its high thrust, high efficiency, lightweight design, and exceptional reliability, the MAD4006 PE provides powerful support for various industrial applications and professional aerial photography, suitable for educational, surveying, inspection, and other professional aerial photography fields. Key Features:
Effective Payload Range: 550–1100g/rotor
Propeller Compatibility: 13–16" high-performance carbon fiber
Maximum Thrust: 2200g (2.2kg) per motor
Weight: 79g
Motor Data |
|||
| Motor Model | MAD 4006 IPE V1.0 | Number of pole pairs | 12 |
| Stator | Anticorrosive | Varnished wire Degree | 150°C |
| Motor Size | D:44.5 × 24.5mm | Magnet Degree | 150°C |
| Degree of Protection | IP35 | Cable Length | 150 mm 18# Awg(Black) silicone |
| Centrifugal Heat Dissipation | YES | Rotor Balance | ≤5 mg |
| Propeller Mounting Holes | D:12 M3×4 | Motor Balance | ≤10 mg |
| Shaft Diameter | IN: 4 mm | Motor Mounting Holes | D:25 M3×4 |
| Bearing | 694ZZ*2 | Disruptive test | 500 V |
Key Features:
Payload Range: 550–1100g/rotor
Propeller Match: 13–16" high-performance carbon fiber
Max Thrust: 2200g (2.2kg) per motor
Weight: 79g
Applicable Models:
Cinematic Heavy Lifters
▶ Supports ARRI Mini LF + O3 Air Unit (total 1.8kg)
▶ Ultra-low vibration (0.005mm RMS)
Industrial Mission Platforms
▶ 200h maintenance-free operation
▶ Compatible with 4S-6S power systems
Defense & Security
▶ EMI-shielded version available
Recommended Accessories:
– ESC: AMPX 40A PRO (2-6S)
– Propellers: FLUXER PRO 16x5.8 MATT, FLUXER PRO 13x4.4 MATT, FLUXER PRO 14x4.8 MATT, FLUXER PRO 15x5.0 MATT
Selection and Installation Notes:
• Propeller size and pitch should match your aircraft configuration – unsuitable propellers will reduce efficiency or cause motor/ESC overload. • Use an appropriately sized electronic speed controller (ESC) and ensure the wiring can handle both continuous and peak currents.
• Ensure that the structural supports and connectors can withstand torque and dynamic loads.
• Perform a balance check and routine inspection before each manned flight.
• Local aviation and manned flight regulations must be followed.
Frequently Asked Questions:
Q: Which propellers should I use?
A: – Propellers: FLUXER PRO 16x5.8 MATT, FLUXER PRO 13x4.4 MATT, FLUXER PRO 14x4.8 MATT, FLUXER PRO 15x5.0 MATT
Q: Which ESCs are compatible?
A: Please use the model provided by the manufacturer: – ESC: AMPX 40A PRO (2-6S)
Q: What is the delivery time?
A: Delivery time is typically 7-14 days, but please confirm current stock and delivery time at checkout.
Products Packaging

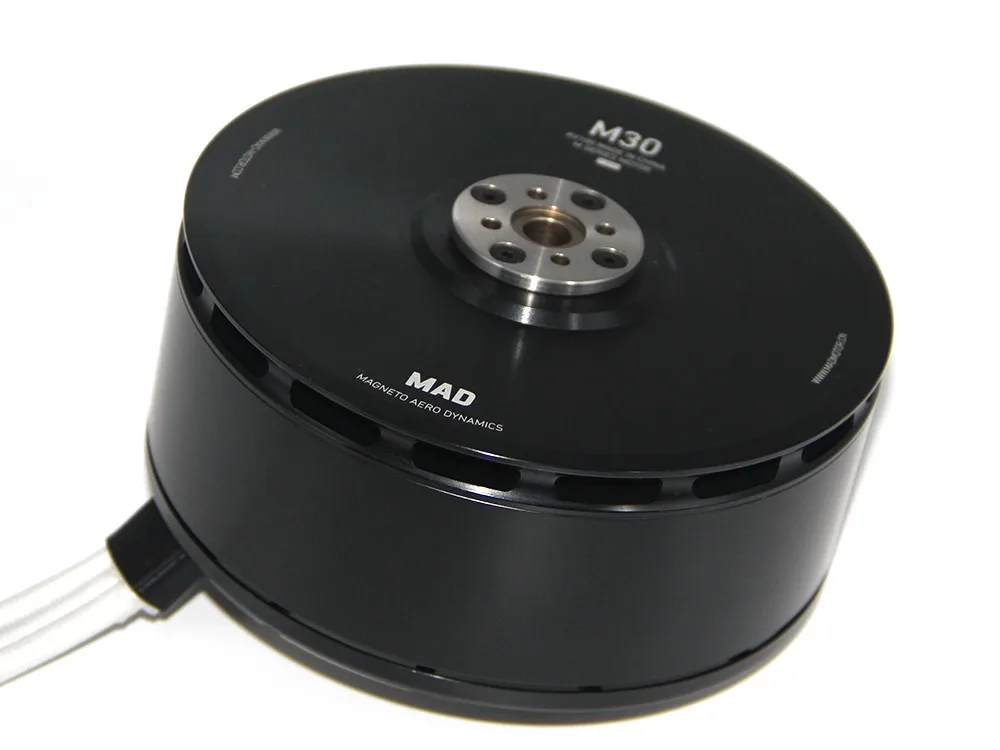

MAD M30 PRO IPE
