MAD 4012 EEE 430KV 340KV 400KV 480KV Efficient BLDC Brushless UAV Quadcopter Drone Motor for Endurance Flight
MAD 4012 EEE 430KV 340KV 400KV 480KV Efficient BLDC Brushless UAV Quadcopter Drone Motor for Endurance Flight
Product Overview:

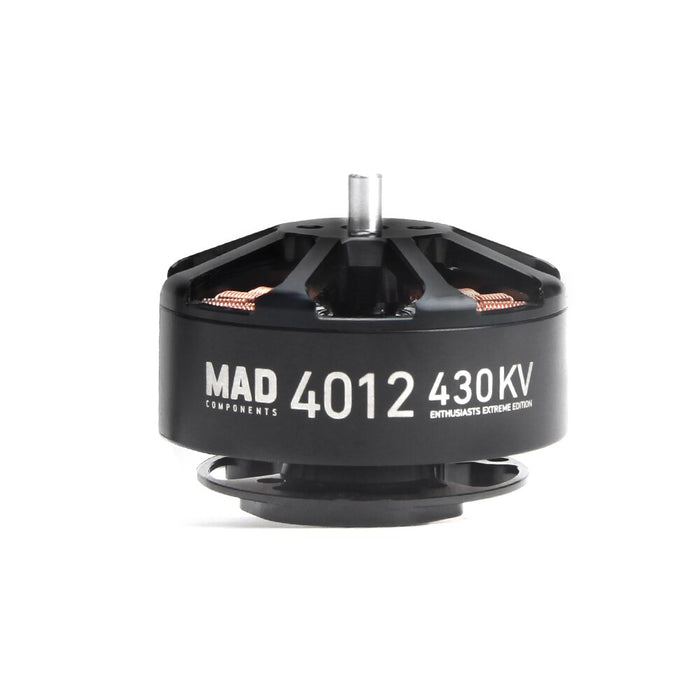

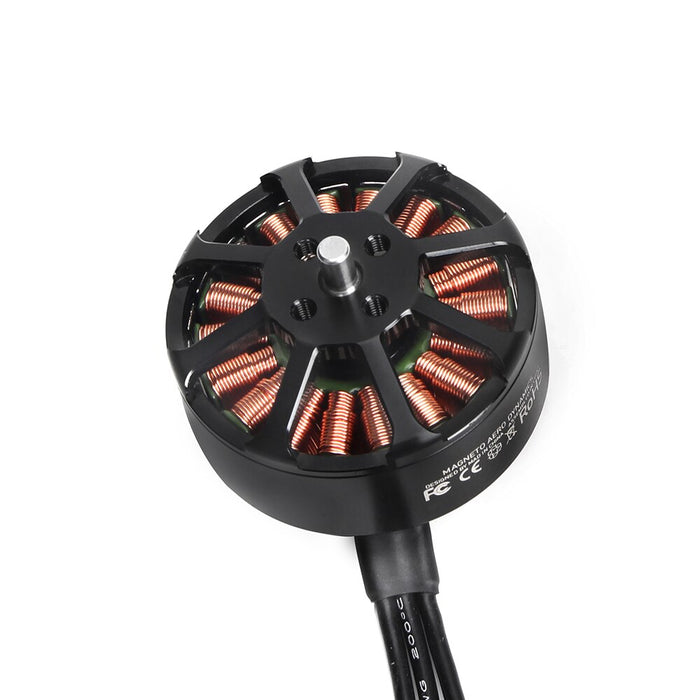

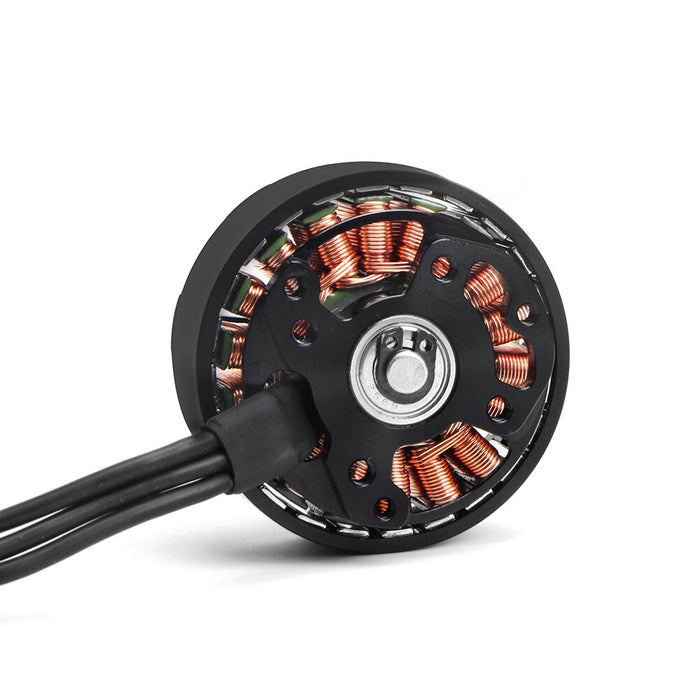

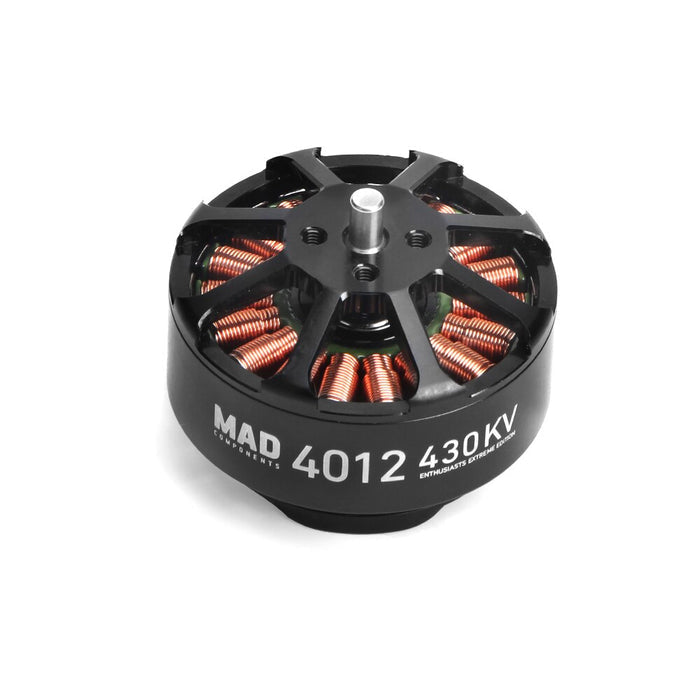

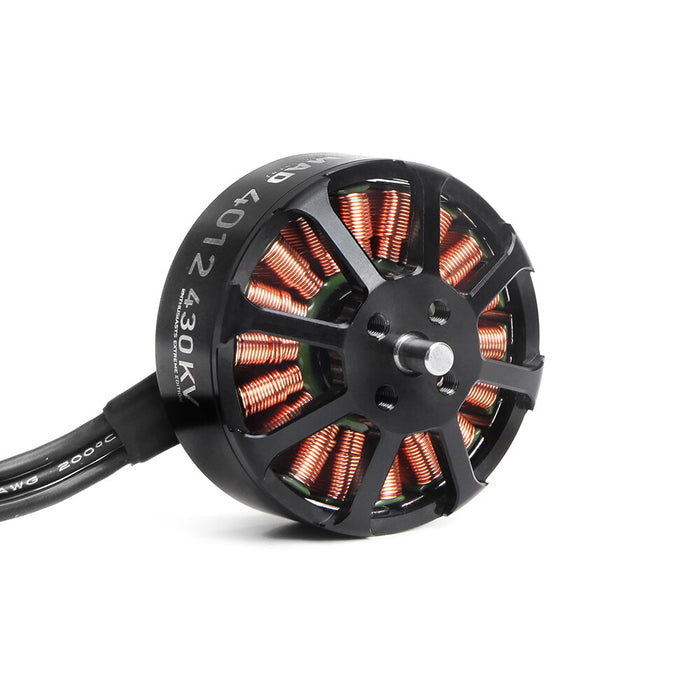

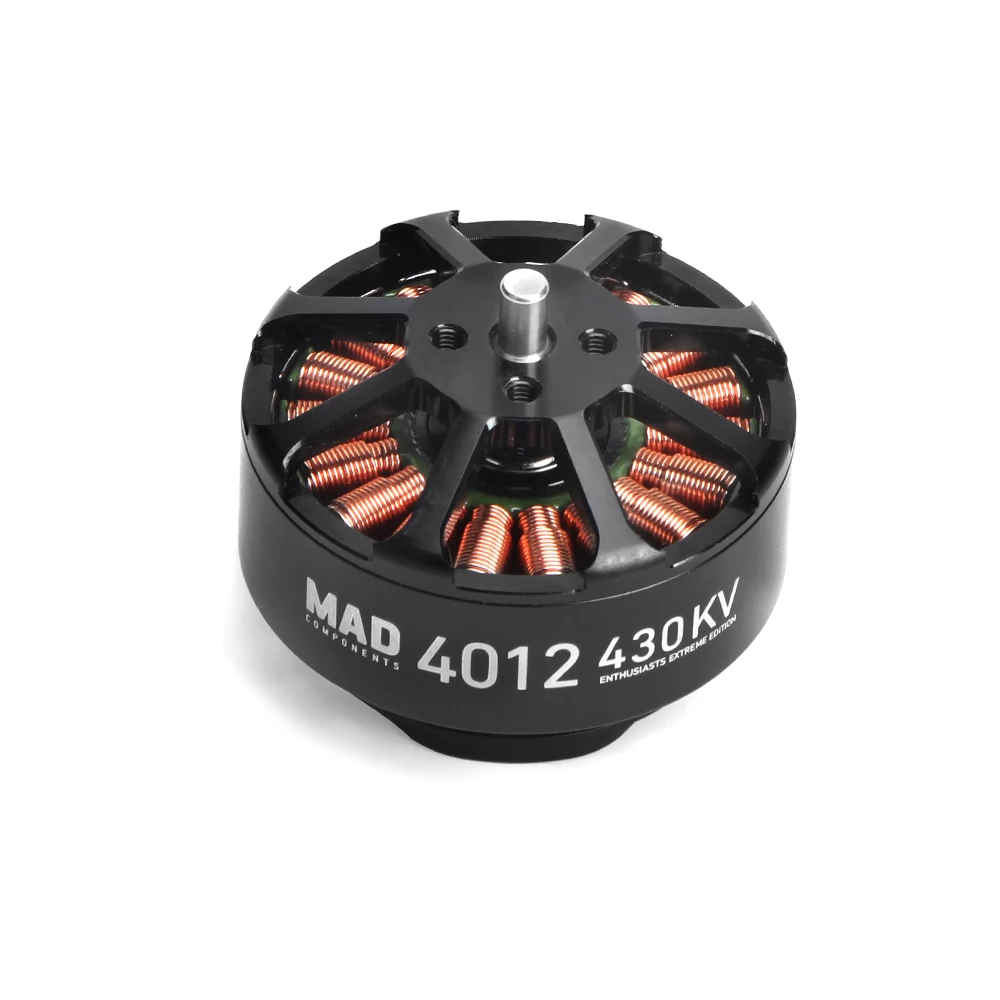

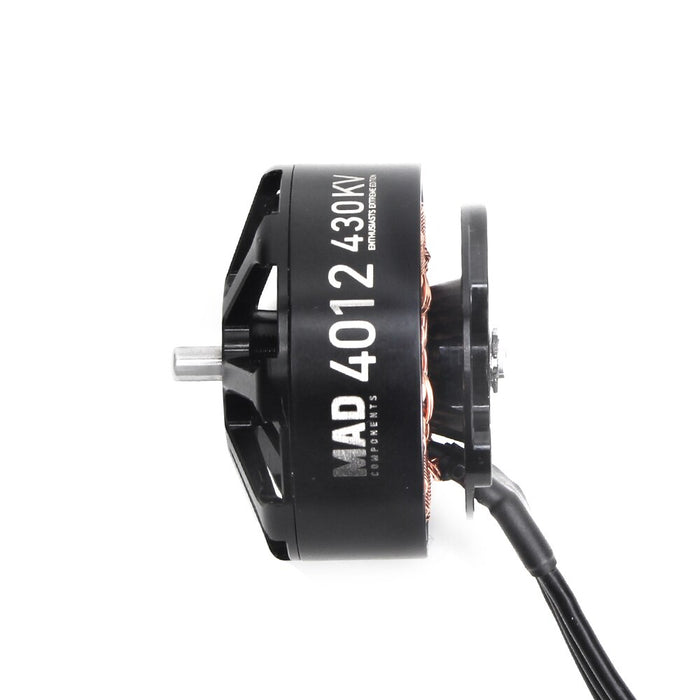

The MAD 4012EEE is designed for single-axis loads of 980-1300g, used with 13-15 inch carbon fiber propellers, and delivers a maximum thrust of 2938g per motor. Each motor weighs 142g. The MAD 4012EEE is a brushless motor for multi-rotor aircraft models, designed for professional aerial photography and industrial applications. With its high thrust, high efficiency, light weight, and excellent reliability, the MAD 4012EEE provides reliable power support for various industrial applications and professional aerial photography, suitable for search and rescue, surveying, inspection, and other professional aerial photography fields.
Motor Data |
|||
| Motor Model | MAD 4012 EEE V1.0 | Number of pole pairs | 12 |
| Stator | Anticorrosive | Varnished wire Degree | 150°C |
| Motor Size | D:44.9 × 37.9 mm | Magnet Degree | 150°C |
| Degree of Protection | Rain protection | Cable Length | 600 mm 18# Awg(Black) silicone |
| Centrifugal Heat Dissipation | Independent | Rotor Balance | ≤5 mg |
| Propeller Mounting Holes | D:12 M3×4 | Motor Balance | ≤10 mg |
| Shaft Diameter | IN: 5 mm | Motor Mounting Holes | D:25 M3×4, D:32 M2.5×3 |
| Bearing | 685ZZ*1 / 695ZZ*1 | Disruptive test | 500 V |
Main Features:
Payload Capacity: 1000-1500g/rotor
Propeller Compatibility: 13-15" high-efficiency carbon fiber
Max Thrust: 2938g (2.94kg) per motor
Weight: 142g
Applicable Models:
Cinematic drones – Smooth footage with heavy camera setups
Industrial UAVs – Long-endurance missions with payloads
Agricultural drones – Efficient spraying and crop monitoring
Recommended Accessories:
– ESC: AMPX 40A PRO (2-6S)
– Propellers: FLUXER PRO 15x5.0 MATT, FLUXER PRO 14x4.8 MATT, FLUXER PRO 13x4.4 MATT
Selection and Installation Notes:
• Propeller size and pitch should match your aircraft configuration – unsuitable propellers will reduce efficiency or cause motor/ESC overload.
• Use an appropriately sized ESC and ensure the wiring can handle continuous and peak current.
• Ensure the structural support and connectors can withstand torque and dynamic loads.
• Perform balance checks and routine inspections before each manned flight.
• Local aviation and manned flight regulations must be followed.
Frequently Asked Questions:
Q: Which propellers should I use? A: Propellers: FLUXER PRO 15x5.0 MATT, FLUXER PRO 14x4.8 MATT, FLUXER PRO 13x4.4 MATT
Q: Which ESCs are compatible?
A: Please use the model provided by the manufacturer: ESC: AMPX 40A PRO (2-6S)
Q: What is the delivery time?
A: Delivery time is usually 7-14 days, but please confirm current stock and specific delivery time at checkout.
