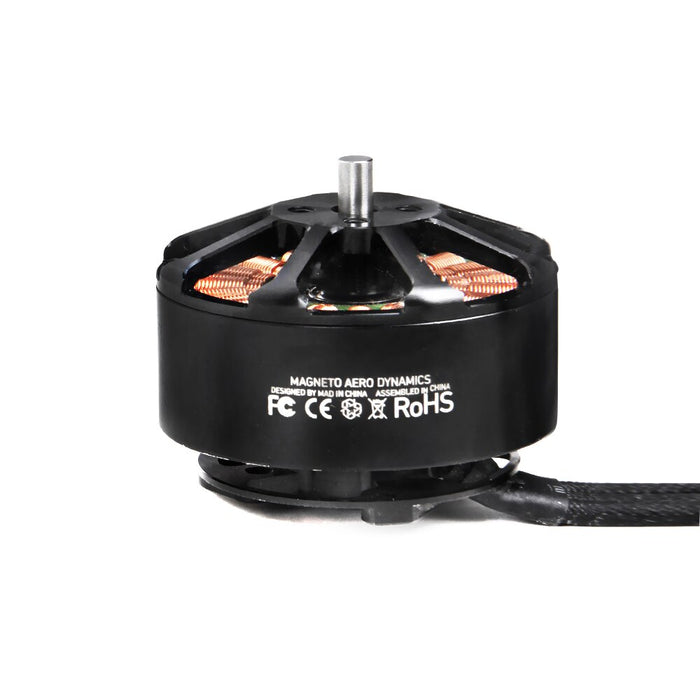

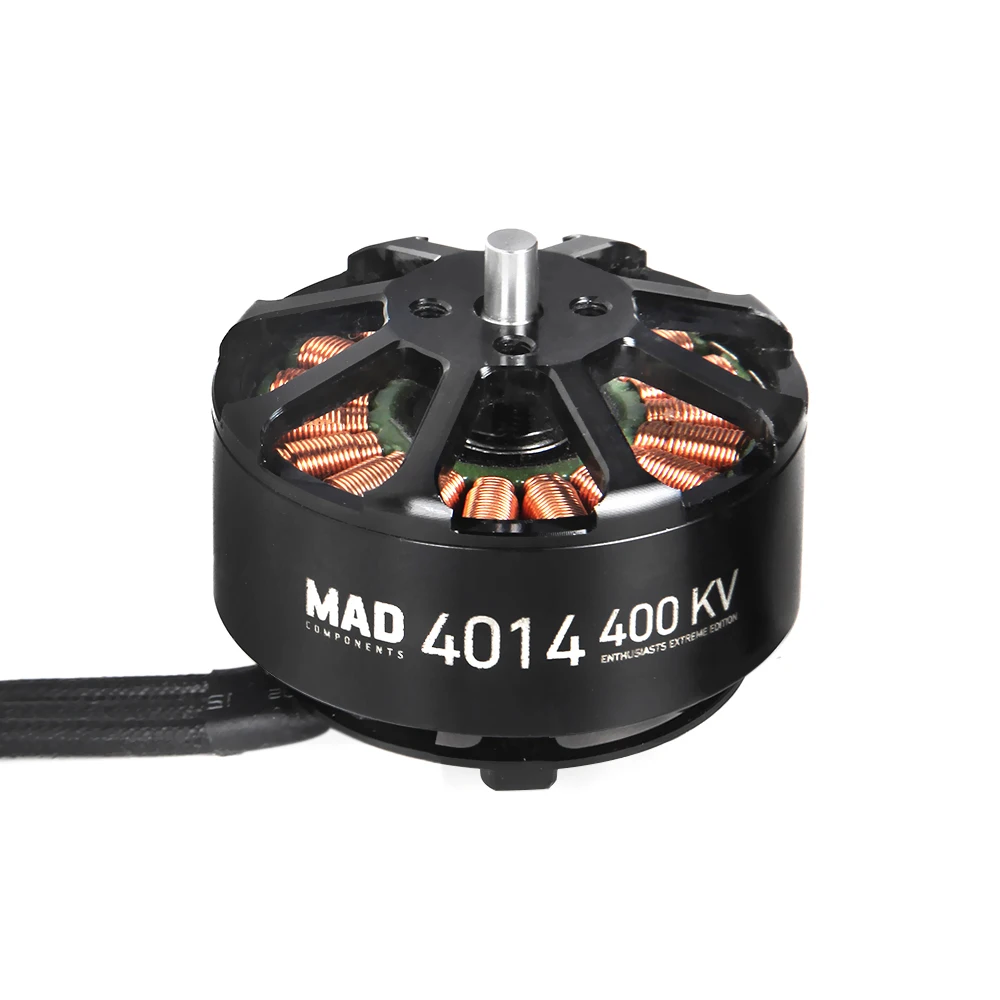

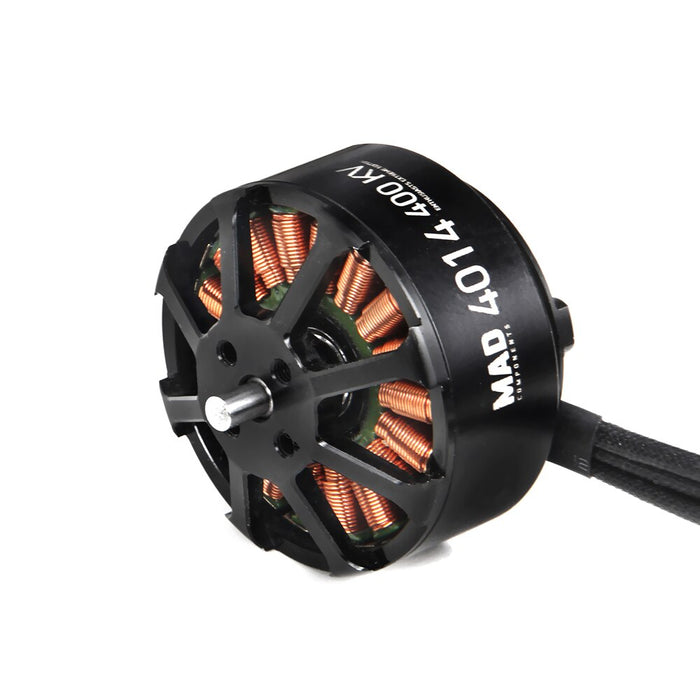

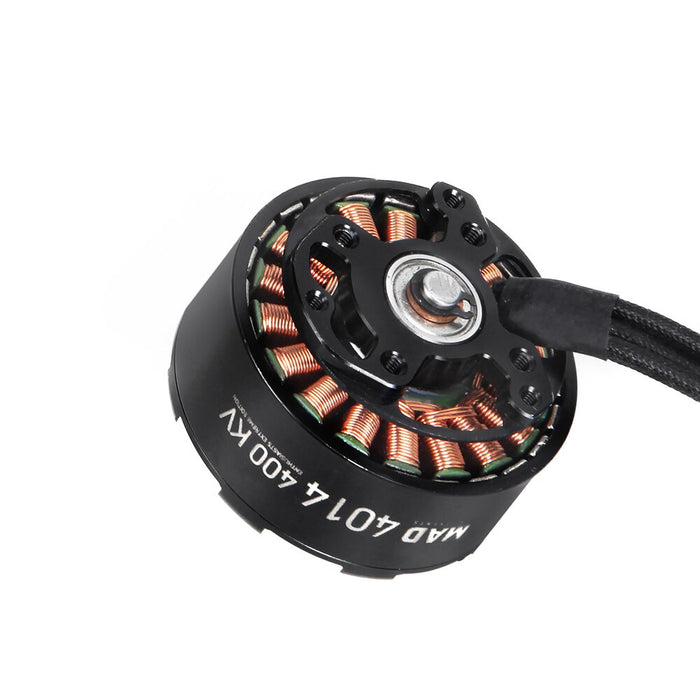

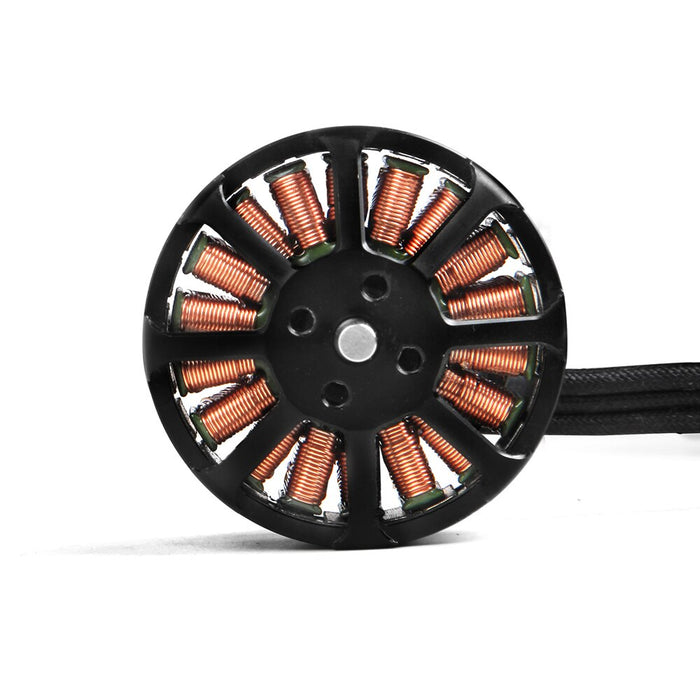

MAD 4014 EEE KV370 KV400 Brushless Quadcopter Motor For Endurance Flight UAV Drone Quadcopter Hexcopter Octcopter
MAD 4014 EEE KV370 KV400 Brushless Quadcopter Motor For Endurance Flight UAV Drone Quadcopter Hexcopter Octcopter
Product Overview:
The MAD4014 EEE is a brushless motor designed for professional aerial photography and industrial applications. With its high thrust, high efficiency, lightweight design, and excellent reliability, the MAD4014 EEE provides reliable power support for various industrial applications and professional aerial photography, suitable for search and rescue, surveying, inspection, and other professional aerial photography fields.
| Specification |
|||||||||
| Motor Model |
MAD 4014 EEE V1.0 |
Number of pole pairs |
12 | ||||||
| Stator |
Anticorrosive |
Varnished wire Degree |
150°C | ||||||
| Motor Size |
D:44.9 × 39.9 mm |
Magnet Degree |
150°C |
||||||
| Degree of Protection |
Rain protection | Cable Length |
600 mm 18# Awg(Black) silicone |
||||||
| Centrifugal Heat Dissipation |
Independent | Rotor Balance |
≤5 mg |
||||||
| Propeller Mounting Holes |
D:12 M3×4 |
Motor Balance |
≤10 mg |
||||||
| Shaft Diameter |
IN: 5 mm |
Motor Mounting Holes |
D:25 M3×4, D:32 M2.5×3 | ||||||
| Bearing | EZO 685ZZ*1 / EZO 695ZZ*1 |
Disruptive test |
500 V | ||||||
Main Features:
▸ Payload Capacity: 950-1600g/rotor
▸ Propeller Optimization: 15-17" high-performance carbon fiber
▸ Max Thrust: 3400g (3.4kg) per rotor
▸ Weight: 143g
Applicable Models:
1. Heavy-Lift Cinematography
Safely carries Sony Venice 2 + DJI Ronin 4D (3.2kg payload)
Ultra-smooth operation for 8K video stabilization
2. Industrial Logistics
8km delivery range with 2kg cargo (VTOL compatible)
Shock-resistant design for urban environments
3. Defense & Surveillance
Radar-absorbent coating option available
Need a customized solution? Contact us for KV options and bulk order discounts!
Recommended Accessories:
– ESC: AMPX 40A PRO (2-6S)
– Propellers: FLUXER PRO 15x5.0 MATT, FLUXER PRO 14x4.8 MATT, FLUXER PRO 13x4.4 MATT, FLUXER PRO 16x5.4 MATT, FLUXER PRO 17x5.8 MATT
Selection and Installation Notes:
• Propeller size and pitch should match your aircraft configuration – unsuitable propellers will reduce efficiency or cause motor/ESC overload.
• Use an appropriately sized ESC and ensure wiring can handle continuous and peak currents.
• Ensure structural support and connectors can withstand torque and dynamic loads.
• Perform balance checks and routine inspections before each manned flight.
• Local aviation and manned flight regulations must be followed.
Frequently Asked Questions:
Q: Which propellers should I use? A: Propellers: FLUXER PRO 15x5.0 MATT, FLUXER PRO 14x4.8 MATT, FLUXER PRO 13x4.4 MATT, FLUXER PRO 16x5.4 MATT, FLUXER PRO 17x5.8 MATT
Q: Which ESCs are compatible?
A: Please use the models provided by the manufacturer: ESC: AMPX 40A PRO (2-6S)
Question: What is the delivery time?
Answer: The delivery time is usually 7-14 days, but please confirm current stock and specific delivery time during checkout.
