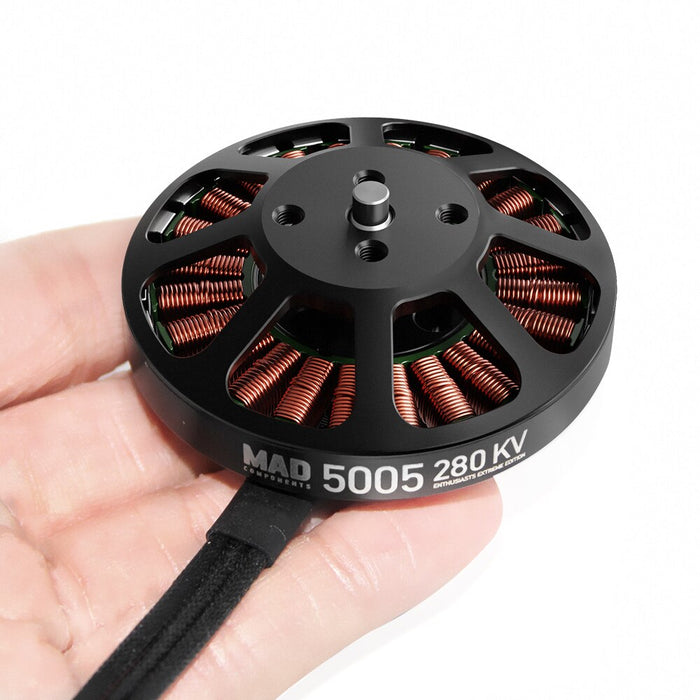

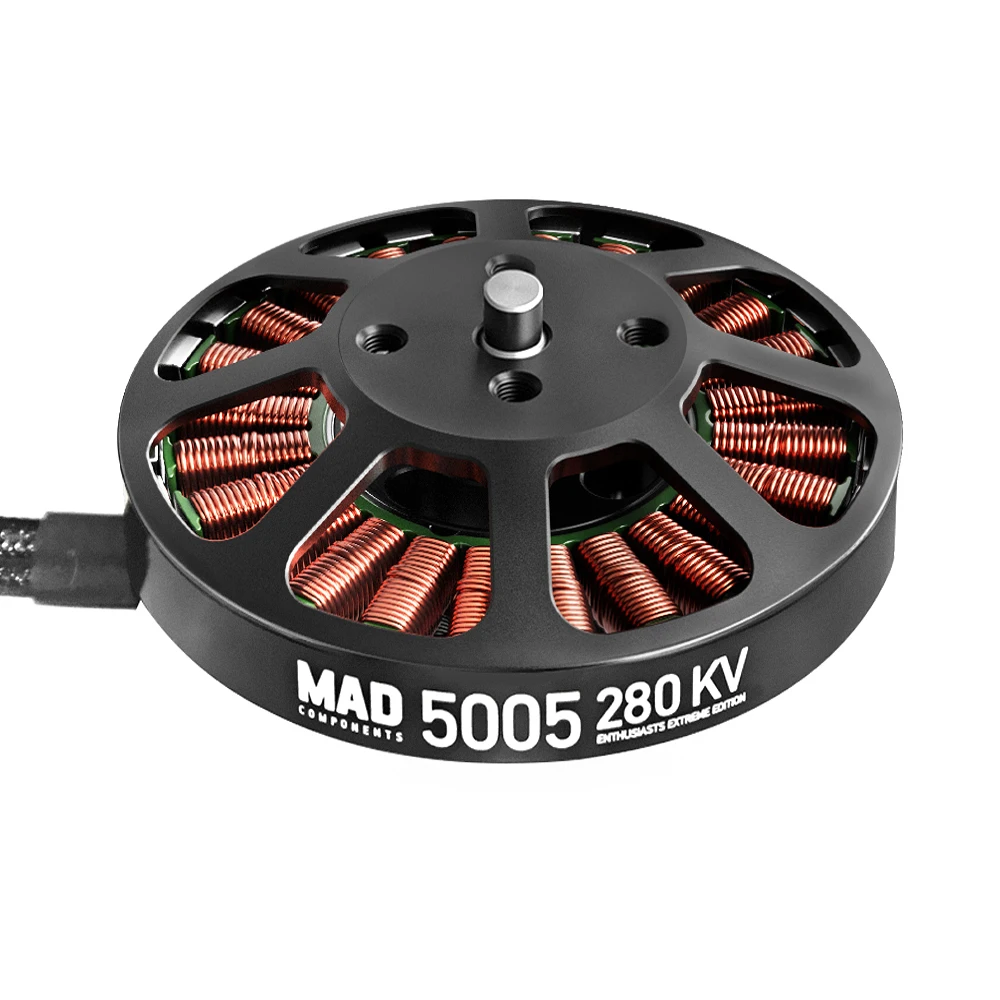

MAD 5005 EEE KV280 KV350 KV440 Motor For RC Aircraft Plane Multi-copter Brushless Outrunner Motor
MAD 5005 EEE KV280 KV350 KV440 Motor For RC Aircraft Plane Multi-copter Brushless Outrunner Motor
Product Overview:
Ultralight Design: Just 92g/motor (Reduces dead weight without sacrificing power)
Aerospace-Grade Materials: Precision bearings, reinforced alloy housing
Thermal Resilience: Optimized for sustained high-load operation
Why Professionals Trust the MAD5005 EEE
✔ Predictable Power Delivery – Stable thrust curves for precise flight control
✔ Mission-Adaptive – Reconfigure propeller sizing for efficiency vs. speed priorities
✔ Overbuilt for Reliability – Withstands vibration, dust, and moisture in harsh environments
| Specification |
|||||||||
| Motor Model |
MAD 5005 EEE V2.0 |
Number of pole pairs |
14 | ||||||

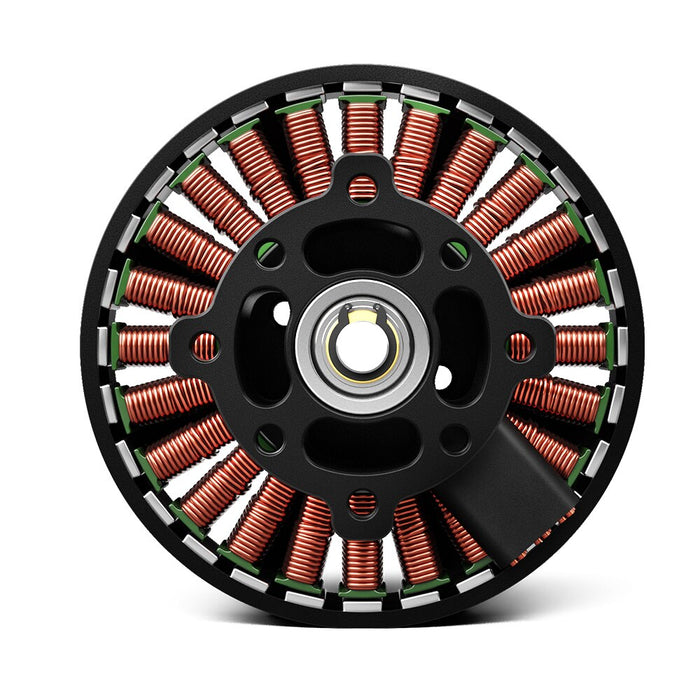

| Stator |
Anticorrosive |
Varnished wire Degree |
180°C | ||||||
| Motor Size |
D:56 × 27.7 mm |
Magnet Degree |
150°C |
||||||
| Degree of Protection |
Rain protection | Cable Length |
150 mm 18# Awg(Black) silicone |
||||||
| Centrifugal Heat Dissipation |
Independent | Rotor Balance |
≤5 mg |
||||||
| Propeller Mounting Holes |
D:12 M3×2, D:18 M3×2 |
Motor Balance |
≤10 mg |
||||||
| Shaft Diameter |
IN: 5 mm |
Motor Mounting Holes |
D:25 M3×4, D:30 M3×4 | ||||||
| Bearing | EZO 685ZZ*1 / EZO 695ZZ*1 |
Disruptive test |
500 V | ||||||
Main Features:
Sustained thrust: 0.5~1.5kg
Max thrust: 3kg
Support voltage: 4S; 6S
Weight: 88g; 90g; 92g
Applicable Models:
Heavy-payload cinematography drones
Industrial inspection UAVs
Agricultural spray systems
Search-and-rescue operations
Recommended Accessories:
– ESC: AMPX 40A PRO (2-6S)
– Propellers: FLUXER PRO 15x5.0 MATT, FLUXER PRO 14x4.8 MATT, FLUXER PRO 13x4.4 MATT, FLUXER PRO 16x5.4 MATT, FLUXER PRO 17x5.8 MATT, FLUXER PRO 18X6.1 MATT, HAVOC 18x5.7 folding propeller, CFFLUXER-VTOL 16.1*6.4
Selection and Installation Notes:
• Propeller size and pitch should match your aircraft configuration – unsuitable propellers will reduce efficiency or cause motor/ESC overload.
• Use an appropriately sized ESC and ensure the wiring can handle continuous and peak currents.
• Ensure structural support and connectors can withstand torque and dynamic loads.
• Perform balance checks and routine inspections before each manned flight.
• Local aviation and manned flight regulations must be followed.
Frequently Asked Questions:
Q: Which propeller should I use? A: Propellers: FLUXER PRO 15x5.0 MATT, FLUXER PRO 14x4.8 MATT, FLUXER PRO 13x4.4 MATT, FLUXER PRO 16x5.4 MATT, FLUXER PRO 17x5.8 MATT
Q: Which ESCs are compatible?
A: Please use the model provided by the manufacturer: ESC: AMPX 40A PRO (2-6S)
Q: What is the delivery time?
A: Delivery time is usually 7-14 days, but please confirm current stock and specific delivery time at checkout.
