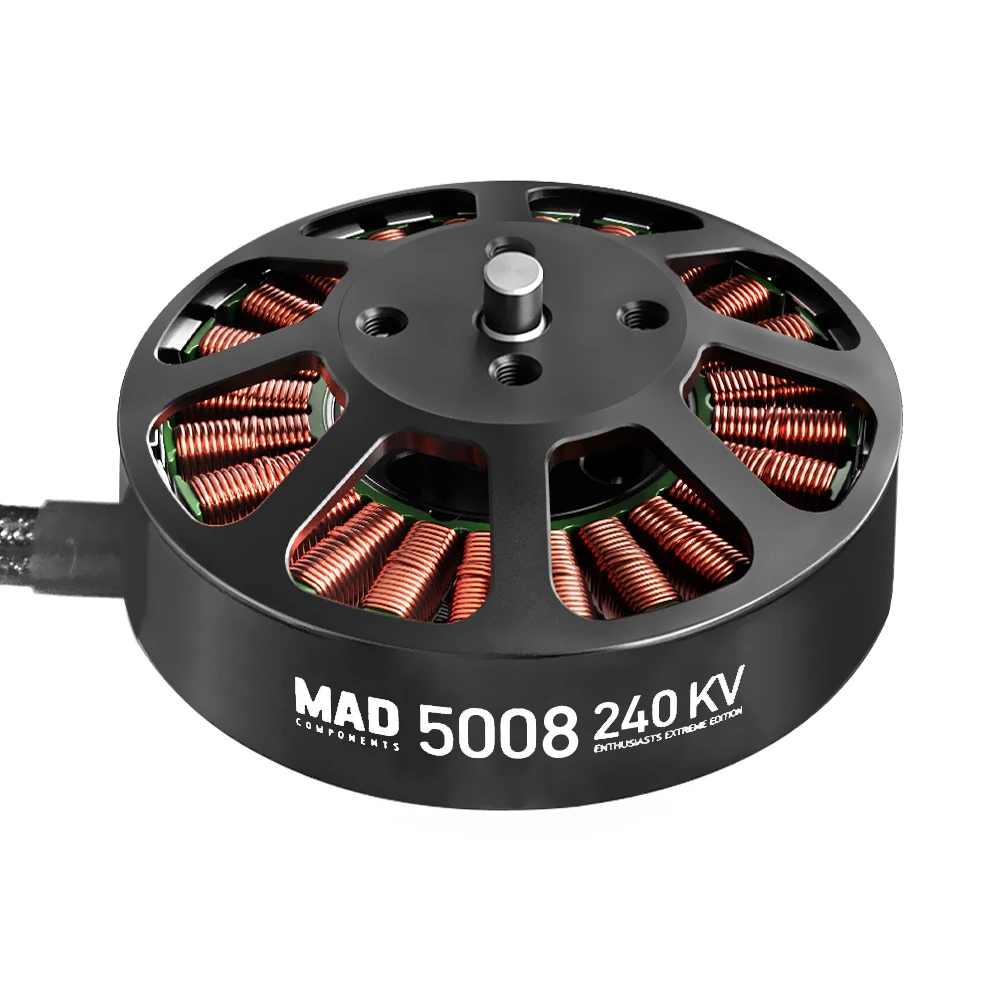

MAD 5008 EEE V2.0 KV170 240 300 400 For Brushless Motor for Agricultural Protection Drone
MAD 5008 EEE V2.0 KV170 240 300 400 For Brushless Motor for Agricultural Protection Drone
Products Description
Product Overview:
⚡ Thrust-Optimized Performance
-
Continuous Thrust: 500–1500g per motor (Ideal for stable, efficient operation)
-
Peak Burst Thrust: 92g per rotor (For critical maneuvers or emergency recovery)
-
Propeller Range: 14–18" carbon fiber or polymer
-
18" Props: Max efficiency for heavy lifting
-
14" Props: Agile response for high-speed applications
-
🛡️ Built for Industrial Durability
-
Ultralight Design: Just 92g/motor (Reduces dead weight without sacrificing power)
-
Aerospace-Grade Materials: Precision bearings, reinforced alloy housing
-
Thermal Resilience: Optimized for sustained high-load operation
| Specification |
|||||||||
| Motor Model |
MAD 5005 EEE V2.0 |
Number of pole pairs |
14 | ||||||
| Stator |
Anticorrosive |
Varnished wire Degree |
180°C | ||||||
| Motor Size |
D:56 × 27.7 mm |
Magnet Degree |
150°C |
||||||
| Degree of Protection |
Rain protection | Cable Length |
150 mm 18# Awg(Black) silicone |
||||||
| Centrifugal Heat Dissipation |
Independent | Rotor Balance |
≤5 mg |
||||||
| Propeller Mounting Holes |
D:12 M3×2, D:18 M3×2 |
Motor Balance |
≤10 mg |
||||||
| Shaft Diameter |
IN: 5 mm |
Motor Mounting Holes |
D:25 M3×4, D:30 M3×4 | ||||||
| Bearing | EZO 685ZZ*1 / EZO 695ZZ*1 |
Disruptive test |
500 V | ||||||
Main Features:
✔ Predictable Power Delivery – Stable thrust curves for precise flight control
✔ Mission-Adaptive – Reconfigure propeller sizing for efficiency vs. speed priorities
✔ Overbuilt for Reliability – Withstands vibration, dust, and moisture in harsh environments
Applicable Models:
-
Heavy-payload cinematography drones
-
Industrial inspection UAVs
-
Agricultural spray systems
-
Search-and-rescue operations
Recommended Accessories:
– ESC: AMPX 40A PRO (2-6S), AMPX 40A (5-14S) HV
– Propellers: FLUXER PRO 21X6.3 MATT, FLUXER PRO 20X6.0 MATT, FLUXER PRO 22X6.6 MATT, HAVOC 22x7.0 folding propeller, FLUXER PRO 17X5.8 MATT, FLUXER PRO 18x6.1 MATT, HAVOC 18x5.7 folding propeller, FLUXER PRO 19x5.7 MATT, FLUXER PRO 16X5.4 MATT
Selection and Installation Precautions:
• Propeller size and pitch should match your aircraft configuration – unsuitable propellers will reduce efficiency or cause motor/ESC overload.
• Use an appropriately sized ESC and ensure the wiring can handle continuous and peak currents.
• Ensure the structural support and connectors can withstand torque and dynamic loads.
• Perform balance checks and routine inspections before each manned flight.
• Local aviation and manned flight regulations must be followed.
Frequently Asked Questions:
Q: Which propeller should I use? A: Propellers: FLUXER PRO 21X6.3 MATT, FLUXER PRO 2OX6.0 MATT, FLUXER PRO 22X6.6 MATT, HAVOC 22x7.0 folding propeller, FLUXER PRO 17X5.8 MATT, FLUXER PRO 18x6.1 MATT, HAVOC 18x5.7 folding propeller, FLUXER PRO 19x5.7 MATT, FLUXER PRO 16X5.4 MATT
Q: Which ESCs are compatible?
A: Please use the model provided by the manufacturer: ESC: AMPX 40A PRO (2-6S)
Q: What is the delivery time?
A: Delivery time is usually 7-14 days, but please confirm current stock and specific delivery time at checkout.
