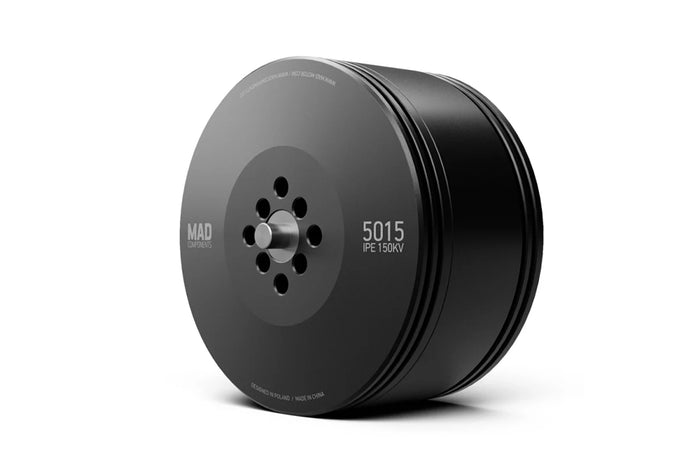

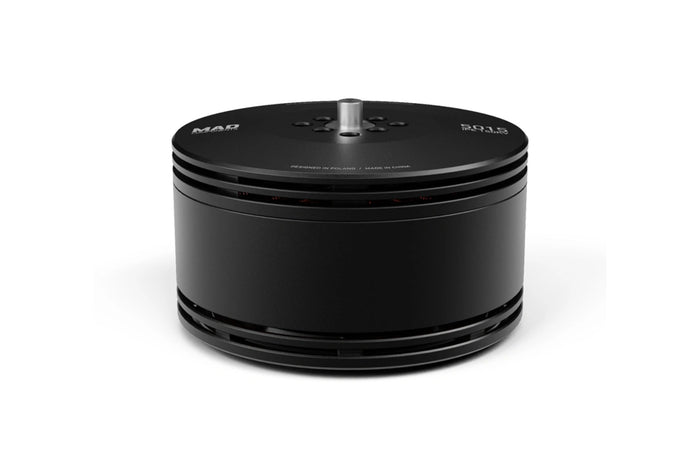

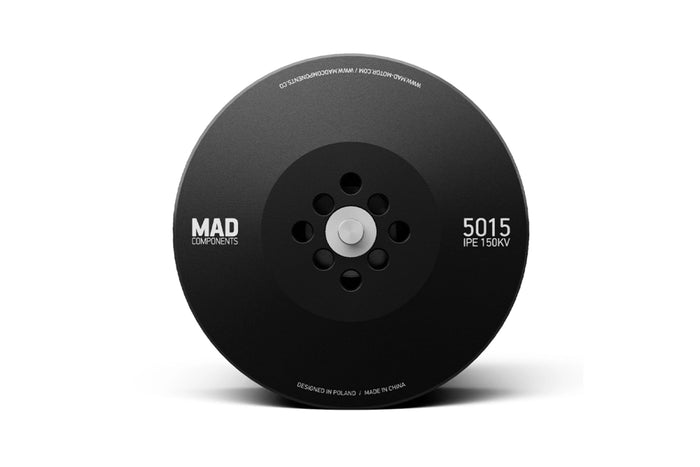

MAD 5015 IPE V3.0 EVTOL Drone Motor
MAD 5015 IPE V3.0 EVTOL Drone Motor
Product overview:
Powering the Future of Drones & eVTOLs
Unmatched Performance for Demanding Applications
🚀 Thrust-Optimized KV Options
270KV/320KV – The go-to motors for 8-16kg eVTOLs, balancing efficiency and power
150KV – Ideal for heavy quadcopters (8-14kg takeoff weight) with smooth, controlled lift
⏱️Long-Range Endurance
Optimized electromagnetic design reduces power consumption by 15% vs. competitors
Low-RPM high-torque operation extends flight times for inspection and mapping missions
🛠️ Built for Industrial-Grade Reliability
High-temp windings – Sustain peak performance in continuous operation
Precision-balanced rotors – Minimize vibration for stabilized camera/sensor payloads
Corrosion-resistant construction – Reliable performance in harsh environments
| Specification |
|||||||||
| Motor Model |
MAD 5015 IPE V3.0 |
Number of pole pairs |
14 | ||||||
| Stator |
Anticorrosive |
Varnished wire Degree |
180°C | ||||||
| Motor Size |
D:56 × 36.3 mm |
Magnet Degree |
150°C |
||||||
| Degree of Protection |
IP45 | Cable Length |
150 mm 16# Awg(Black) silicone |
||||||
| Centrifugal Heat Dissipation |
YES | Rotor Balance |
≤5 mg |
||||||
| Propeller Mounting Holes |
D:12 M3×4, D:15 M3×4 |
Motor Balance |
≤10 mg |
||||||
| Shaft Diameter |
IN: 6 mm |

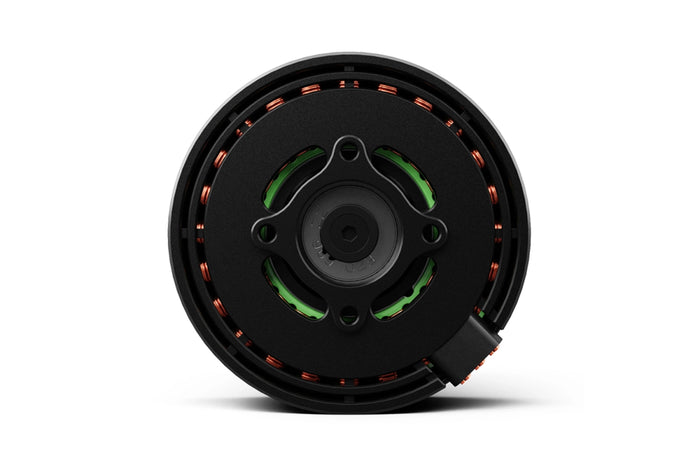

Motor Mounting Holes |
D:25 M3×4 | ||||||
| Bearing | EZO 696ZZ*2 |
Disruptive test |
500 V | ||||||
Main highlights:
✔Proven With over 10,000 flight hours across commercial and industrial applications, this drone is compatible with 6S-12S ESCs.
✔ Adaptable to any multirotor configuration – quads, hexacopters, octocopters, and custom eVTOL designs.
Applicable Models:
• VTOL Drones
• Multirotor Drones
• Fixed-wing Drones
Recommended Accessories:
– ESCs: AMPX 40A (5-14S) HV, AMPX 80A (5-14S), AMPX 60A (5-14S), XROTOR Pro 60A (4-6S)
– Propellers: CF FLUXER 18.1x7.2 VTOL, FLUXER PRO 18x6.1 MATT, FLUXER PRO 18x6.1 MATT, FLUXER PRO 22x6.6 MATT, FLUXER PRO 20x6.0 MATT, HAVOC 22*7.0in folding propeller, FLUXER PRO 17X5.8 MATT
Selection and Installation Considerations:
• The propeller size and pitch should be matched to your aircraft configuration—an incorrect propeller can reduce efficiency or cause motor/ESC overload.
• Use an appropriately sized ESC and ensure the wiring harness can withstand continuous and peak motor current.
• Ensure structural supports and couplings can withstand torque and dynamic loads.
• Perform a balance check and routine inspection before each manned flight.
• Local aviation and manned flight regulations must be followed.
Frequently Asked Questions:
Q: Which propeller should I use?
A: – Propellers: CF FLUXER 18.1x7.2 VTOL, FLUXER PRO 18x6.1 MATT, FLUXER PRO 18x6.1 MATT, FLUXER PRO 22x6.6 MATT, FLUXER PRO 20x6.0 MATT, HAVOC 22*7.0in folding propeller, FLUXER PRO 17X5.8 MATT
Q: Which ESCs are compatible?
A: Please use the models provided by the manufacturer: – ESCs: AMPX 40A (5-14S) HV, AMPX 80A (5-14S), AMPX 60A (5-14S), XROTOR Pro 60A (4-6S)
Q: What is the delivery time?
A: Delivery time is typically 7-14 days, but please confirm current stock and delivery time at checkout.
150KV：
170KV：
270KV：
320KV：
380KV：
420KV：
