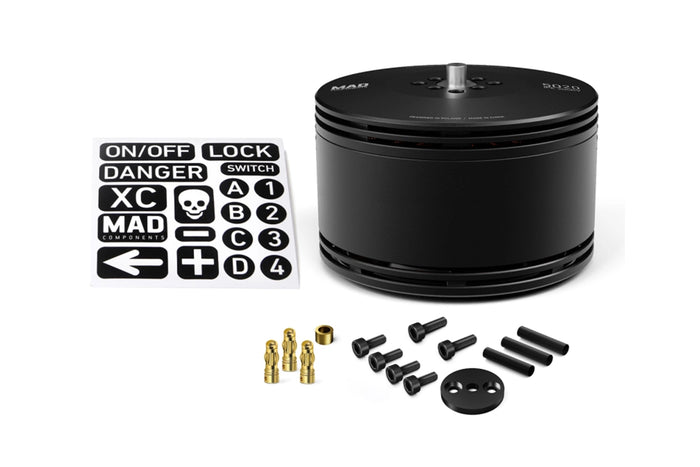

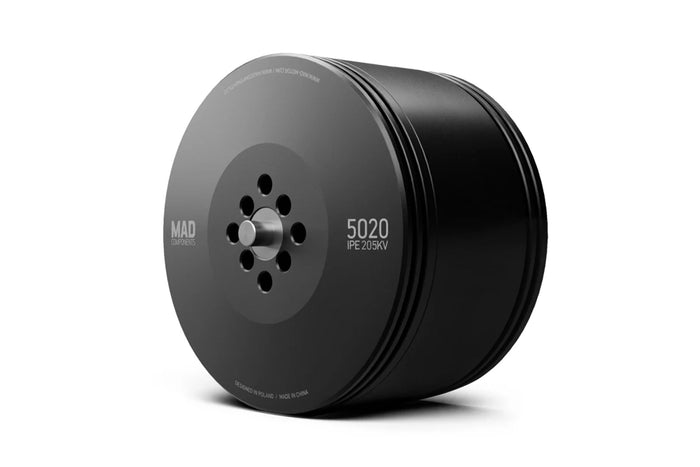

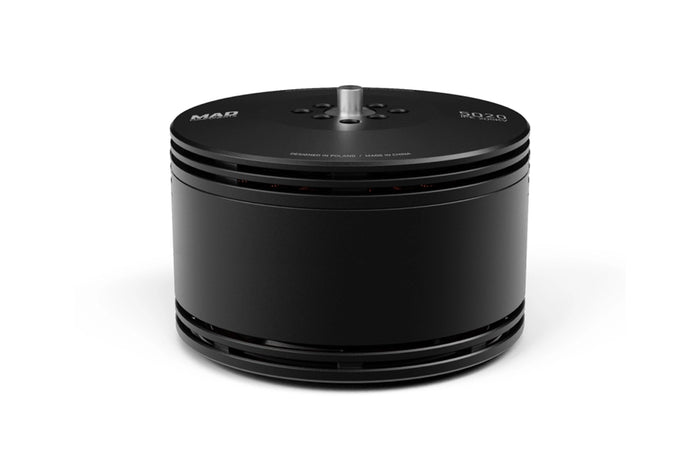

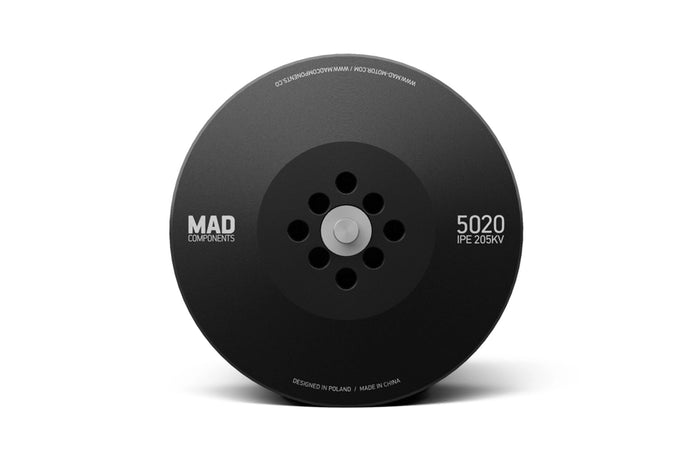

MAD 5020 IPE V3.0 EVTOL Drone Motor
MAD 5020 IPE V3.0 EVTOL Drone Motor
Product Overview:
Hand-wound motor with high slot fill rate and clean appearance.

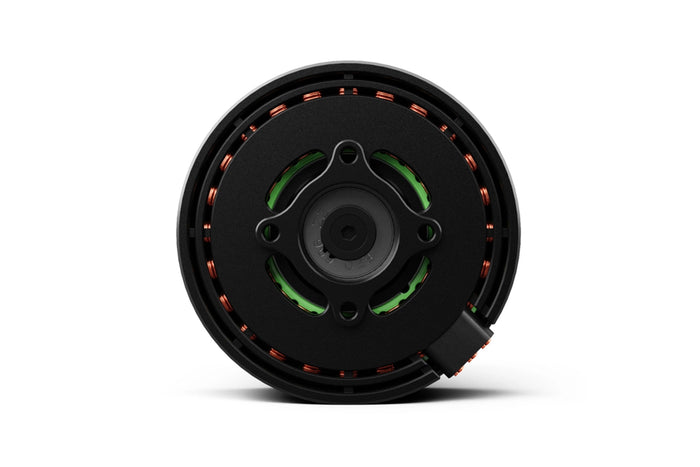

Unique motor structure design, 24N28P multi-slot multi-stage.
Maximum enclosed design, ultra-lightweight.
Open design for maximum heat dissipation.
Standardized motor mounting holes for high versatility and adaptability to various rack mountings.
Uses extremely durable, high-quality imported bearings for more stable rotation and greater impact resistance.
| Specification |
|||||||||
| Motor Model |
MAD 5020 IPE V3.0 |
Number of pole pairs |
14 | ||||||
| Stator |
Anticorrosive |
Varnished wire Degree |
180°C | ||||||
| Motor Size |
D:56 × 41.3 mm |
Magnet Degree |
150°C |
||||||
| Degree of Protection |
IP45 | Cable Length |
150 mm 16# Awg(Black) silicone |
||||||
| Centrifugal Heat Dissipation |
YES | Rotor Balance |
≤5 mg |
||||||
| Propeller Mounting Holes |
D:12 M3×4, D:15 M3×4 |
Motor Balance |
≤10 mg |
||||||
| Shaft Diameter |
IN: 6 mm |
Motor Mounting Holes |
D:25 M3×4 | ||||||
| Bearing | EZO 696ZZ*2 |
Disruptive test |
500 V |
||||||
Key Highlights:
Sustained thrust: 2~3.4kg
Max thrust: 8kg
Support voltage: 12S
Weight: 290g
Applicable Models:
• VTOL UAVs
• Multi-rotor UAVs
Recommended Accessories:
– ESC: AMPX 60A (5-14S)
– Propellers: APC 18x8, APC 16x8, APC 17x10
Selection and Installation Notes:
• The propeller size and pitch should match your aircraft configuration—incorrect propellers can reduce efficiency or cause motor/ESC overload. • Use an ESC with appropriate power and ensure the wiring harness can withstand continuous and peak motor current.
Ensure structural supports and couplings can withstand torque and dynamic loads.
Perform a balance check and routine inspection before each manned flight.
Local aviation and manned flight regulations must be followed.
Frequently Asked Questions:
Q: Which propeller should I use?
A: – Propellers: APC 18x8, APC 16x8, APC 17x10
Q: Which ESC is compatible?
A: Please use the model provided by the manufacturer: – ESC: AMPX 60A (5-14S)
Q: What is the delivery time?
A: Delivery time is typically 7-14 days, but please confirm current stock and delivery time at checkout.
205KV：
