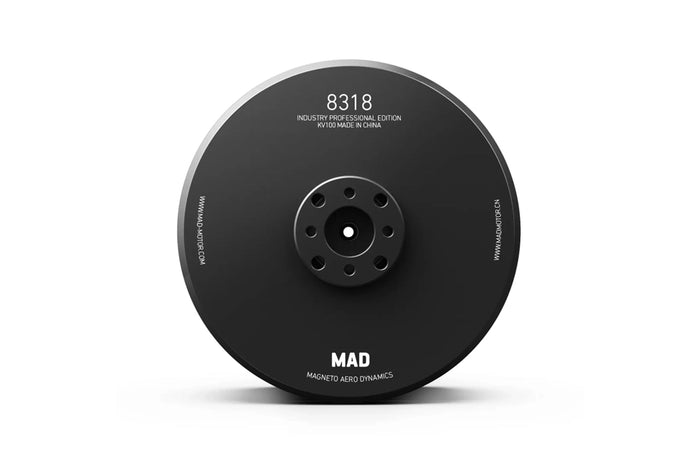

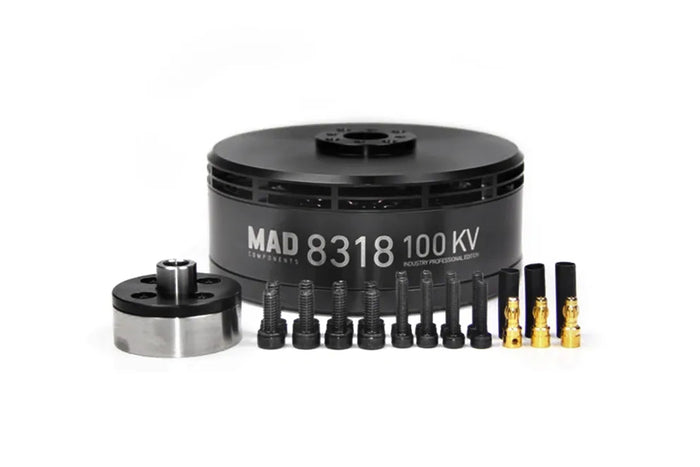

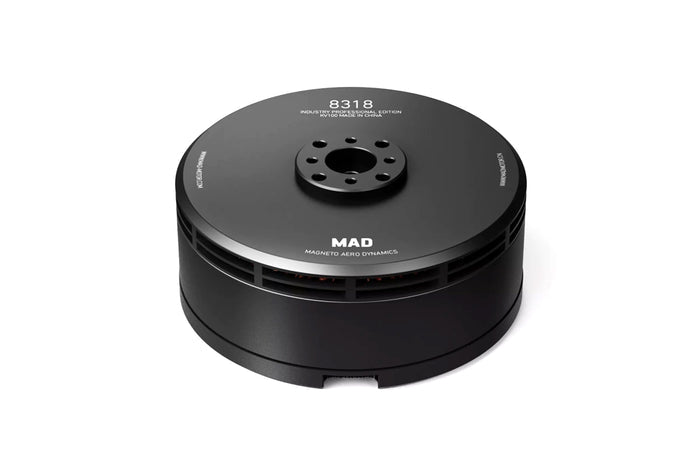

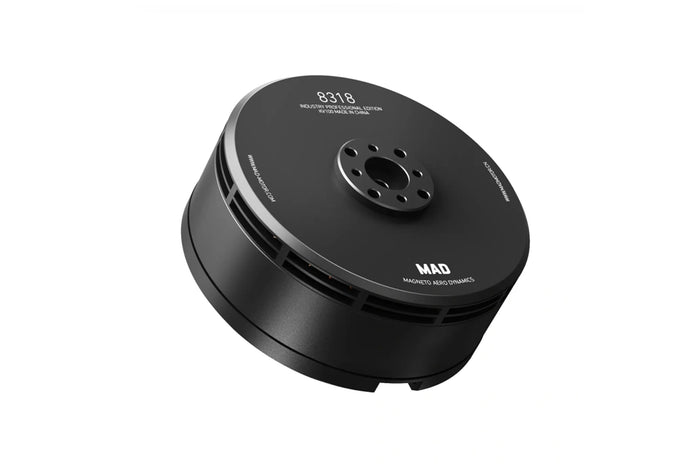

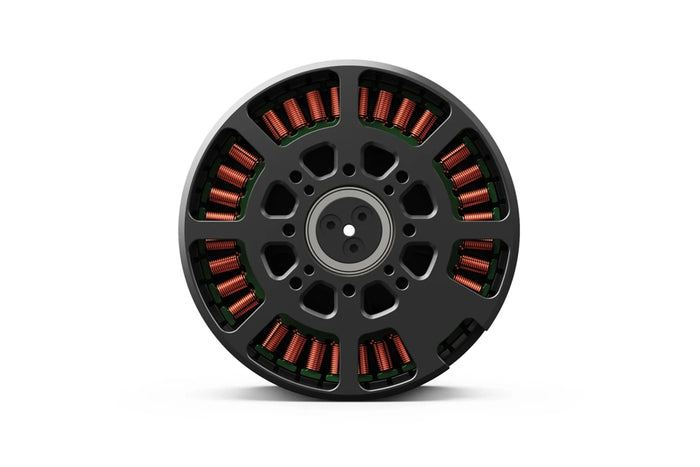

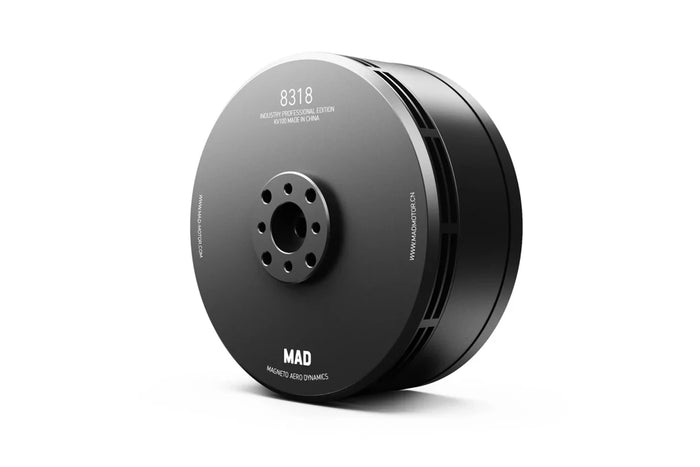

MAD 8318 IPE Agriculture Drone Motor
MAD 8318 IPE Agriculture Drone Motor
Product introduction
• Designed for heavy-lift agricultural drones in harsh environments
• Optimized for 28–32" propellers with maximum thrust of 17.5kg
• Built for high efficiency and long-term durability
• IP35-rated for water and dust resistance
Motor Data |
|||
| Motor Model | MAD 8318 IPE V1.0 black | Number of pole pairs | 21 |
| Stator | Anticorrosive | Varnished wire Degree | 180°C |
| Motor Size | D:91.5 × 41 mm | Magnet Degree | 150°C |
| Degree of Protection | IP35 | Cable Length | 150 mm 16# Awg(Black) silicone |
| Centrifugal Heat Dissipation | YES | Rotor Balance | ≤10 mg |
| Propeller Mounting Holes | D:20 M3×4, D:23 M4×4 | Motor Balance | ≤20 mg |
| Shaft Diameter | IN: 15 mm | Motor Mounting Holes | D:30 M3×4, D:32 M4x4, D:40 M4x4 |
| Bearing | 6802ZZ*2 | Disruptive test | 500 V |
Key Highlights
✔ High thrust and load capacity tailored for agricultural operations
✔ Rugged construction with extended lifespan for field use
✔ IP35 protection ensures reliable performance in challenging conditions.
Applicable objects
• Agricultural spraying and seeding drones.
• Cost-effective UAV platforms requiring consistent heavy lift.
• Dusty, humid, or variable outdoor environments.
Recommended accessories
Paddles: FLUXER PRO 32x9.6 MATT, FLUXER PRO 30x10.0 MATT, FLUXER PRO 32x9.6 MATT, HAVOC 32x10.5in folding propeller, FLUXER PRO 29x8.7 MATT, FLUXER PRO 28x8.4 MATT ESCs: AMPX 80A (5-14S), AMPX 120A (5-14S)
Notes:
* The propeller size and pitch should be matched to your aircraft configuration—an incorrect propeller will reduce efficiency or overload the motor/ESC.
* Use an ESC with appropriate power rating and wiring harnesses capable of handling continuous and peak motor current.
Ensure that the structural support and couplings can withstand torque and dynamic loads.
Perform a balance check and routine checks before each manned flight.
Comply with local aviation and manned flight regulations.
Frequently Asked Questions:
Q: Which propeller should I use?
A: – Propellers: FLUXER PRO 32x9.6 MATT, FLUXER PRO 30x10.0 MATT, FLUXER PRO 32x9.6 MATT, HAVOC 32x10.5in folding propeller, FLUXER PRO 29x8.7 MATT, FLUXER PRO 28x8.4 MATT
Q: Which ESC is compatible?
A: Please use the models provided by the manufacturer: AMPX 80A(5-14S), AMPX 120A(5-14S)
Q: What is the delivery time?
A: The delivery time is usually 7-14 days, but please confirm the current stock and delivery time at checkout.
100KV:
120KV:
260KV：
