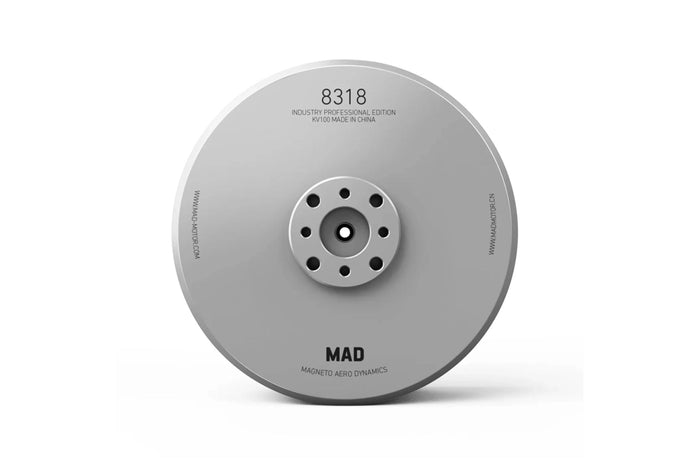

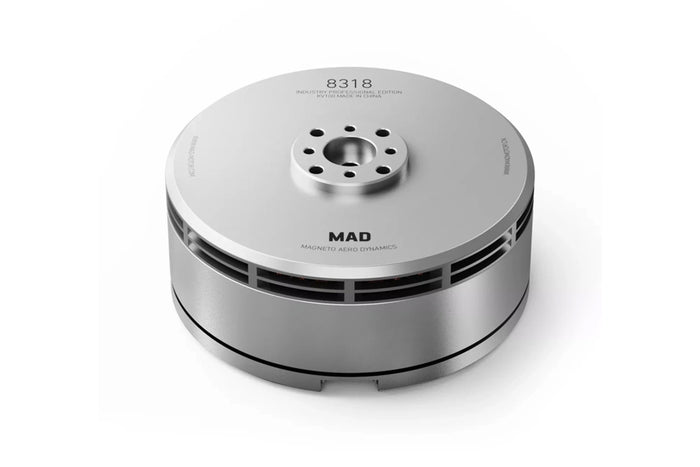

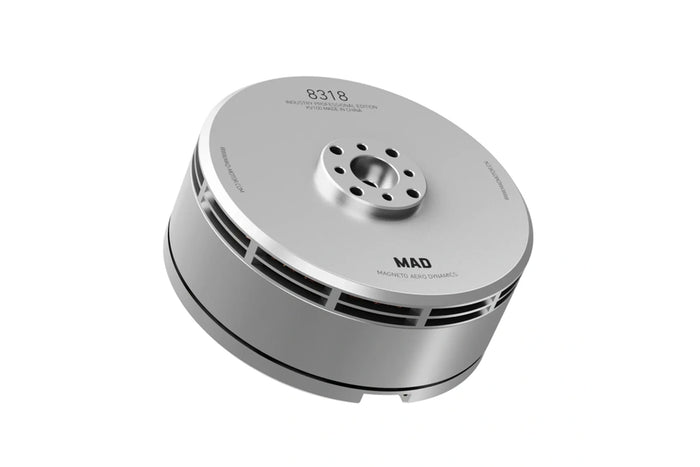

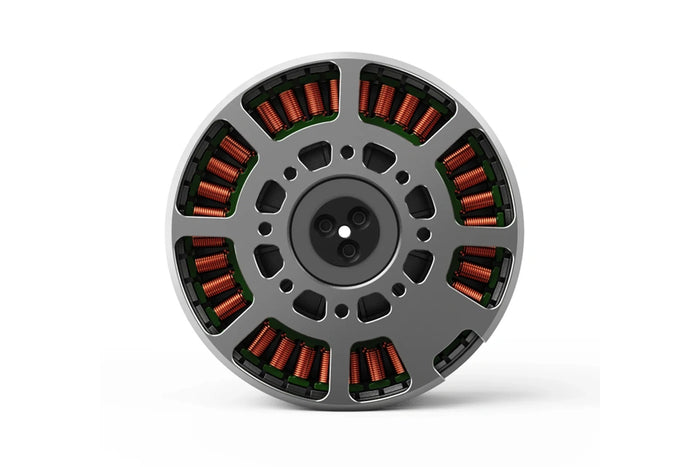

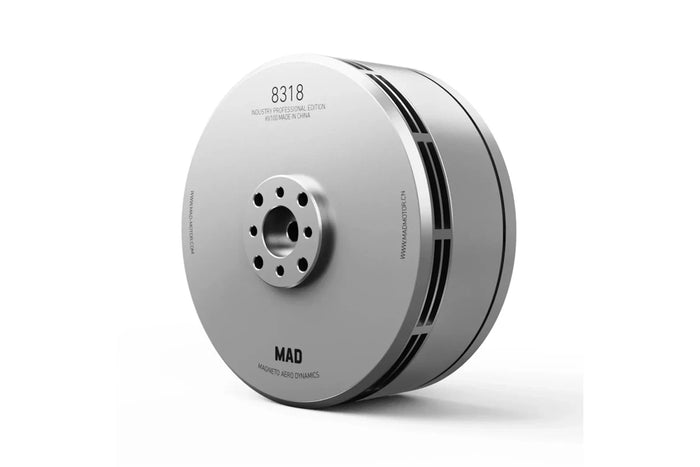

MAD 8318 IPE Agriculture Drone Motor(Silver)
MAD 8318 IPE Agriculture Drone Motor(Silver)
Product introduction
• Designed for heavy-duty agricultural drones operating in rugged environments
• Optimized for 28–32" propellers to support large-scale payloads
• Delivers a maximum thrust of 17.5kg per motor
• Silver version runs 5°C cooler than black, ideal for sun-exposed applications
Motor Data |
|||
| Motor Model | MAD 8318 IPE V1.0 silver | Number of pole pairs | 21 |
| Stator | Anticorrosive | Varnished wire Degree | 180°C |
| Motor Size | D:91.5 × 41 mm | Magnet Degree | 150°C |
| Degree of Protection | IP35 | Cable Length | 150 mm 16# Awg(Black) silicone |
| Centrifugal Heat Dissipation | YES | Rotor Balance | ≤10 mg |
| Propeller Mounting Holes | D:20 M3×4, D:23 M4×4 | Motor Balance | ≤20 mg |
| Shaft Diameter | IN: 15 mm | Motor Mounting Holes | D:30 M3×4, D:32 M4x4, D:40 M4x4 |
| Bearing | 6802ZZ*2 | Disruptive test | 500 V |
Key Highlights
✔ High thrust capacity for demanding agricultural tasks
✔ Enhanced durability with larger, longer-lasting bearings
✔ Cooler operation improves efficiency and motor lifespan in high-temperature conditions.
Applicable objects
• Agricultural spraying drones and crop monitoring platforms
• Long-duration outdoor drone missions under strong sunlight
• Cost-effective high-performance UAVs for rural operations
Recommended accessories
Paddle: FLUXER PRO 32x9.6 MATT, FLUXER PRO 30x10.0 MATT, FLUXER PRO 32x9.6 MATT, HAVOC 32x10.5in folding propeller, FLUXER PRO 29x8.7 MATT, FLUXER PRO 28x8.4 MATT
ESC: AMPX 80A (5-14S)
Notes:
· The propeller size and pitch should be matched to your aircraft configuration—an incorrect propeller will reduce efficiency or overload the motor/ESC.
· Use an ESC with appropriate power rating and wiring harnesses capable of handling continuous and peak motor current.
Ensure that the structural support and couplings can withstand torque and dynamic loads.
Perform a balance check and routine checks before each manned flight.
Comply with local aviation and manned flight regulations.
Frequently Asked Questions:
Q: Which propeller should I use?
A: – Propellers: FLUXER PRO 32x9.6 MATT, FLUXER PRO 30x10.0 MATT, FLUXER PRO 32x9.6 MATT, HAVOC 32x10.5in folding propeller, FLUXER PRO 29x8.7 MATT, FLUXER PRO 28x8.4 MATT
Q: Which ESC is compatible?
A: Please use the model provided by the manufacturer: AMPX 80A(5-14S)
Q: What is the delivery time?
A: The delivery time is usually 7-14 days, but please confirm the current stock and delivery time at checkout.
100KV：
120KV：
