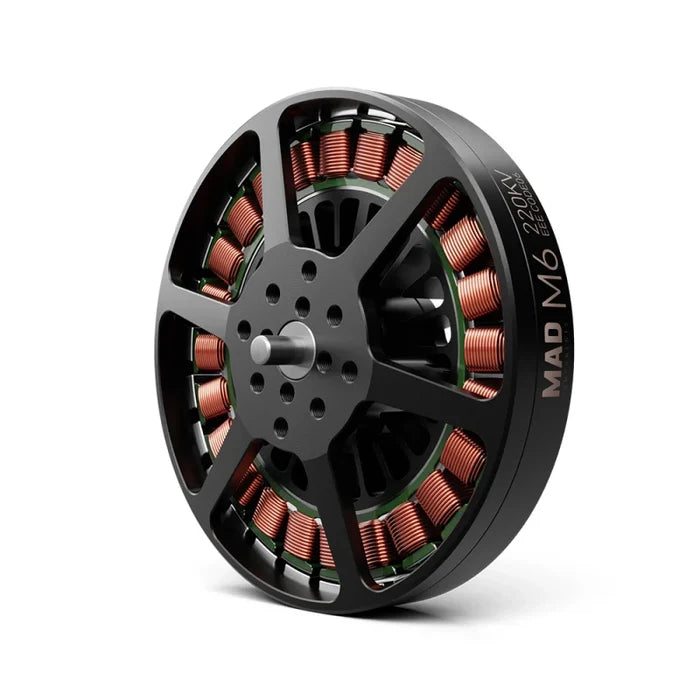

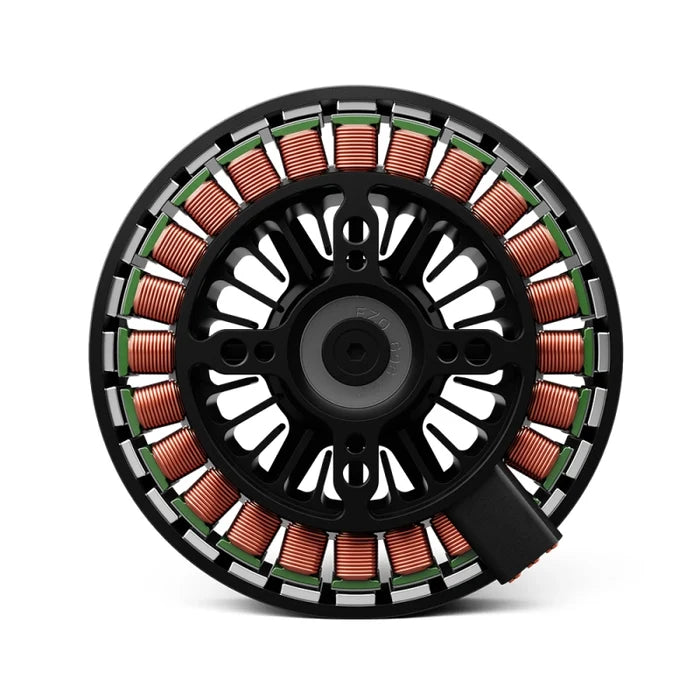

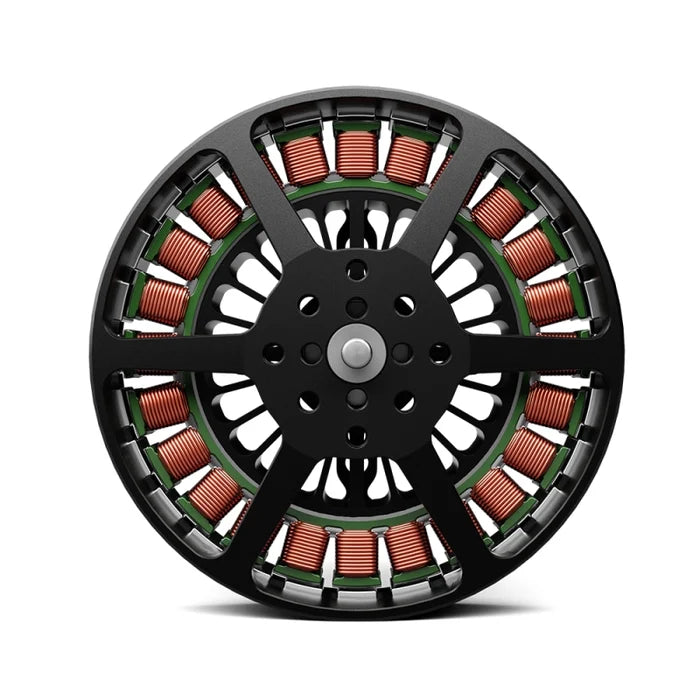

MAD Antimatter M6C06 EEE Brushless Drone Motor
MAD Antimatter M6C06 EEE Brushless Drone Motor
Product overview:
• A high-efficiency, ultra-lightweight motor built for 2–3 kg single-axis payloads
• Tailored for 21–24 inch carbon propellers, offering up to 5.4 kg of thrust per axis
• Part of the ENTHUSIASTS EXTREME EDITION series—engineered for extreme weight reduction without sacrificing performance
| Specification |
|||||||||
| Motor Model |
MAD M6C06 EEE V2.0 |
Number of pole pairs |
14 | ||||||
| Stator |
Anticorrosive |
Varnished wire Degree |
180°C | ||||||
| Motor Size |
D:72 × 27.4 mm |
Magnet Degree |
150°C |
||||||
| Degree of Protection |
Rain protection | Cable Length |
60 mm 16# Awg(Black) silicone |
||||||
| Centrifugal Heat Dissipation |
Independent | Rotor Balance |
≤5 mg |
||||||
| Propeller Mounting Holes |
D:12 M3×4,D:18 M3×4,D:22 M3×4 |
Motor Balance |
≤10 mg |
||||||
| Shaft Diameter |
IN: 6 mm |
Motor Mounting Holes |
D:25 M3×4, D:32 M4×4 | ||||||
| Bearing | EZO 696ZZ*2 |
Disruptive test |
500 V | ||||||
Main highlights:
✔ Supports 6S, 8S, and 12S voltage configurations for flexible builds
✔Weighs only 163g with a maximum hollow design for rapid heat dissipation
✔ Advanced 24N28P stator structure ensures high torque output and smooth operation
✔ Optimized magnetic flux density through simulation testing for energy-efficient performance
Applicable models:
• High-performance drones requiring lightweight yet powerful propulsion
• Aerial platforms carrying 1.5–2.5 kg payloads on each axis
• Builders pushing for endurance and stability without excess motor Weight
Recommended Accessories:
– ESCs: AMPX 40A (5-14S) HV, XROTOR Pro 60A (4-6S)
– Propellers: CF FLUXER 22.1x7.4 VTOL, FLUXER PRO 22x6.6 MATT, FLUXER PRO 21x6.3 MATT, HAVOC 22x7.0 folding, FLUXER PRO 24x7.2 MATT
Selection and Installation Considerations:
• The propeller size and pitch should be matched to your aircraft configuration—an incorrect propeller can reduce efficiency or cause motor/ESC overload.
• Use an appropriately sized ESC and ensure the wiring harness can withstand continuous and peak motor current.
Ensure structural supports and couplings can withstand torque and dynamic loads.
Perform a balance check and routine checks before each manned flight.
Local aviation and manned flight regulations must be followed.
Frequently Asked Questions (FAQs):
Q: Which propeller should I use?
A: – Propellers: CF FLUXER 22.1x7.4 VTOL, FLUXER PRO 22x6.6 MATT, FLUXER PRO 21x6.3 MATT, HAVOC 22x7.0 folding, FLUXER PRO 24x7.2 MATT
Q: Which ESC is compatible?
A: Please use the models provided by the manufacturer: – ESCs: AMPX 40A (5-14S) HV, XROTOR Pro 60A (4-6S)
Q: What is the delivery time?
A: Delivery time is typically 7-14 days, but please confirm current stock and delivery time at checkout.
140KV:
220KV:
320KV:
