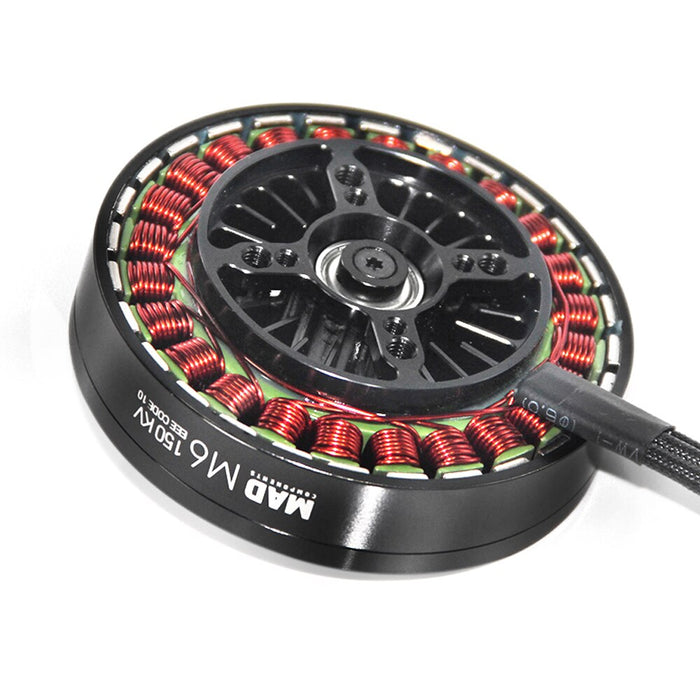

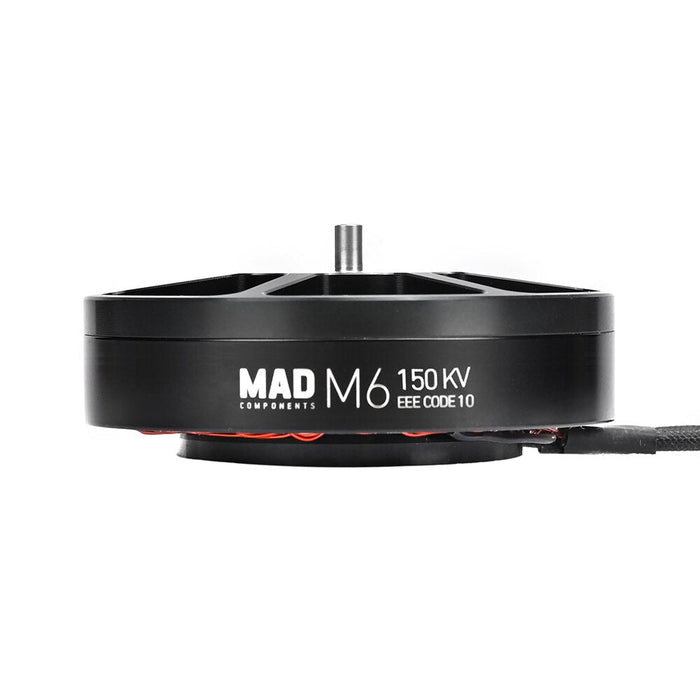

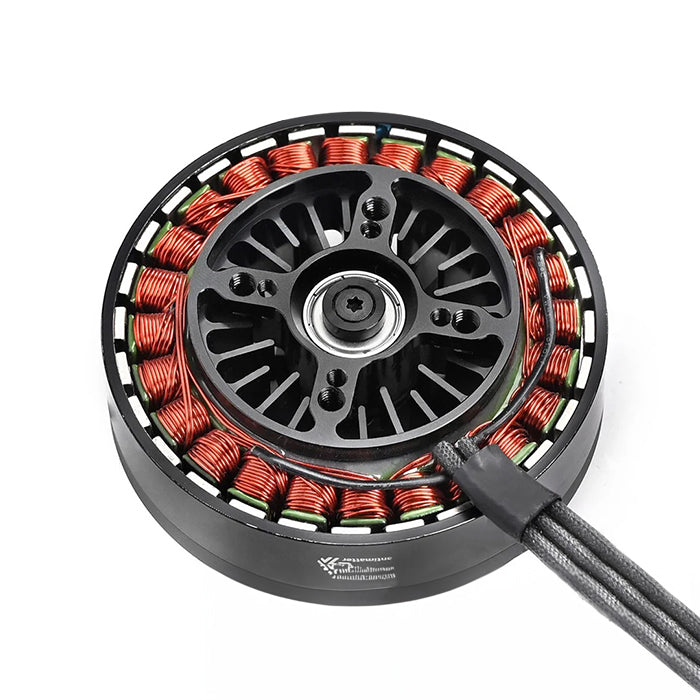

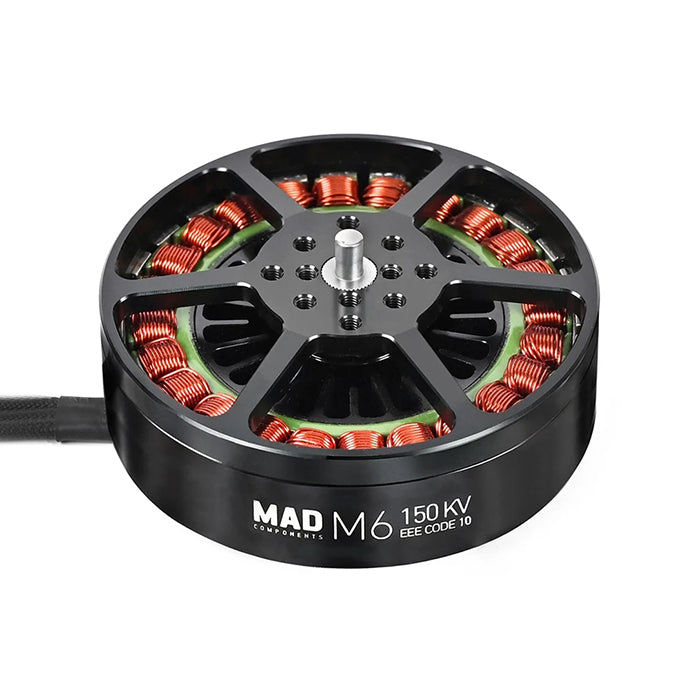

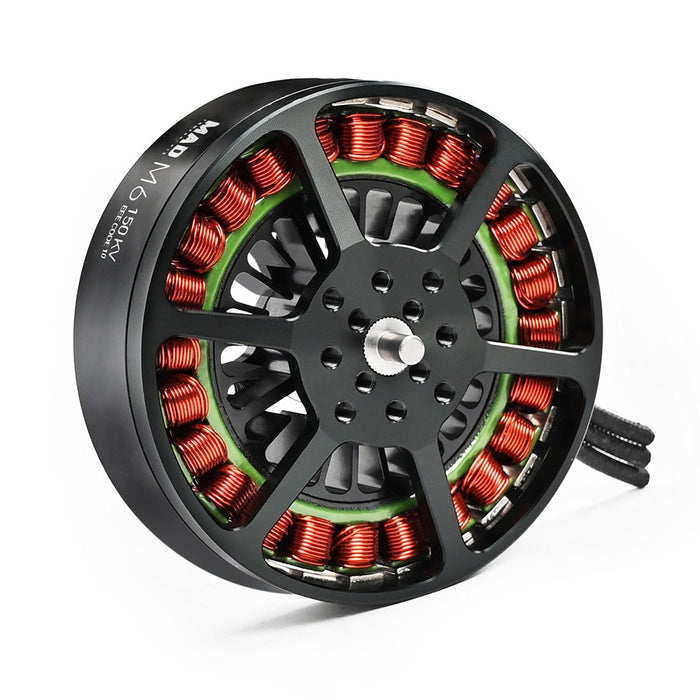

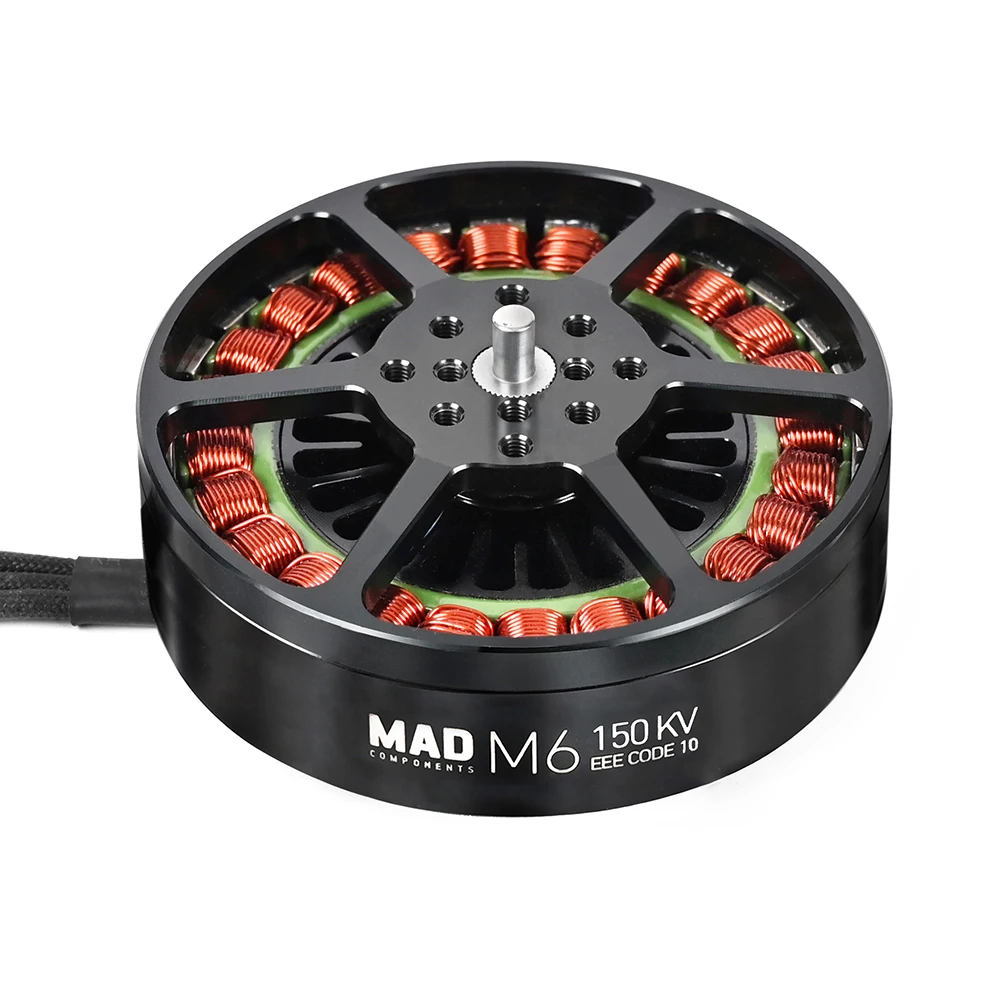

MAD M6C10 EEE 150KV 200KV 250KV 300KV High Efficient Drone Quadcopter Multi-copter Brushless Outrunner Motor
MAD M6C10 EEE 150KV 200KV 250KV 300KV High Efficient Drone Quadcopter Multi-copter Brushless Outrunner Motor
Product Overview:
Engineered for 2.5–5 kg single-axis payloads
• Optimized for use with 18–24 inch carbon fiber propellers
• Supports a broad voltage range from 6S to 12S
| Specification |
|||||||||
| Motor Model |
MAD M6C10 EEE V2.0 |
Number of pole pairs |
14 | ||||||
| Stator |
Anticorrosive |
Varnished wire Degree |
180°C | ||||||
| Motor Size |
D:72 × 31.4 mm |
Magnet Degree |
150°C |
||||||
| Degree of Protection |
Rain protection | Cable Length |
60 mm 16# Awg(Black) silicone |
||||||
| Centrifugal Heat Dissipation |
Independent | Rotor Balance |
≤5 mg |
||||||
| Propeller Mounting Holes |
D:12 M3×4,D:18 M3×4,D:22 M3×4 |
Motor Balance |
≤10 mg |
||||||
| Shaft Diameter |
IN: 6 mm |
Motor Mounting Holes |
D:25 M3×4, D:32 M4×4 | ||||||
| Bearing | EZO 696ZZ*2 |
Disruptive test |
500 V | ||||||
Main Features:
Sustained thrust: 2.5~5kg
Max thrust: 10.4kg
Supported voltage: 150KV/12S; 200KV/12S; 250KV/12S; 300KV/6S
Weight: 209g, 210g, 220g, 213g
Applicable Models:
• Medium to heavy-lift multi-rotor drones requiring 2.5–5 kg payload capacity per motor
• Builders focused on efficiency and power in the ANTIMATTER motor lineup
Recommended Accessories:
– ESC: AMPX 40A (5-14S) HV, AMPX 60A (5-14S), XROTOR Pro 60A (4-6S)
– Propellers: FLUXER PRO 22x6.6 MATT, FLUXER PRO 21X6.3 MATT, CF FLUXER 22.1X7.4 VTOL, HAvOC 22x7.0 folding, FLUXER PRO 24X7.2 MATT, FLUXER PRO 2OX6.0 MATT, FLUXER PRO 19X5.7 MATT, FLUXER PRO 18X6.1 MATT, CF FLUXER 18.1X7.2 VTOL
Selection and Installation Precautions:
• Propeller size and pitch should match your aircraft configuration – unsuitable propellers will reduce efficiency or cause motor/ESC overload.
• Use an appropriately sized ESC and ensure the wiring can handle continuous and peak currents.
• Ensure the structural support and connectors can withstand torque and dynamic loads.
• Perform balance checks and routine inspections before each manned flight.
• Local aviation and manned flight regulations must be followed. Frequently Asked Questions:
Q: Which propeller should I use? A: Propellers: FLUXER PRO 22x6.6 MATT, FLUXER PRO 21X6.3 MATT, CF FLUXER 22.1X7.4 VTOL, HAvOC 22x7.0 folding, FLUXER PRO 24X7.2 MATT, FLUXER PRO 2OX6.0 MATT, FLUXER PRO 19X5.7 MATT, FLUXER PRO 18X6.1 MATT, CF FLUXER 18.1X7.2 VTOL
Q: Which ESCs are compatible?
A: Please use the models provided by the manufacturer: ESCs: AMPX 40A(5-14S)HV, AMPX 60A(5-14S), XROTOR Pro 60A(4-6S)
Q: What is the delivery time?
A: Delivery time is usually 7-14 days, but please confirm current stock and specific delivery time at checkout.
