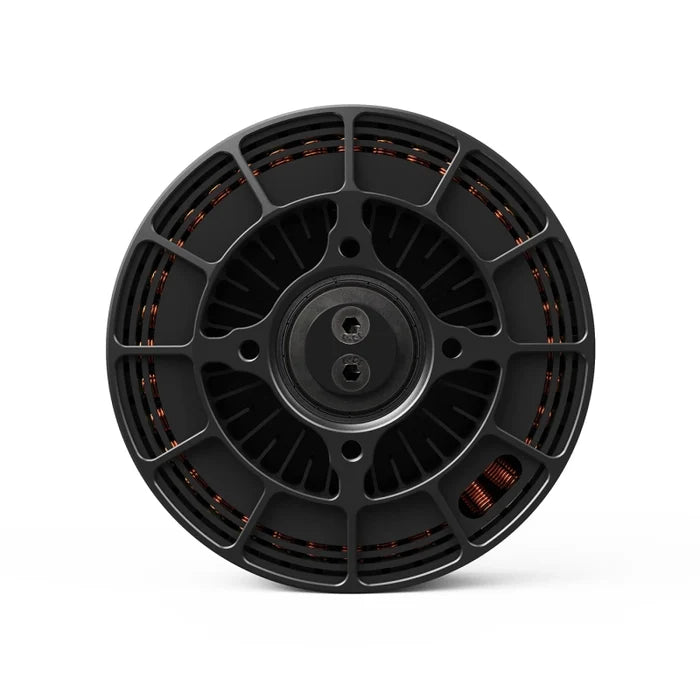

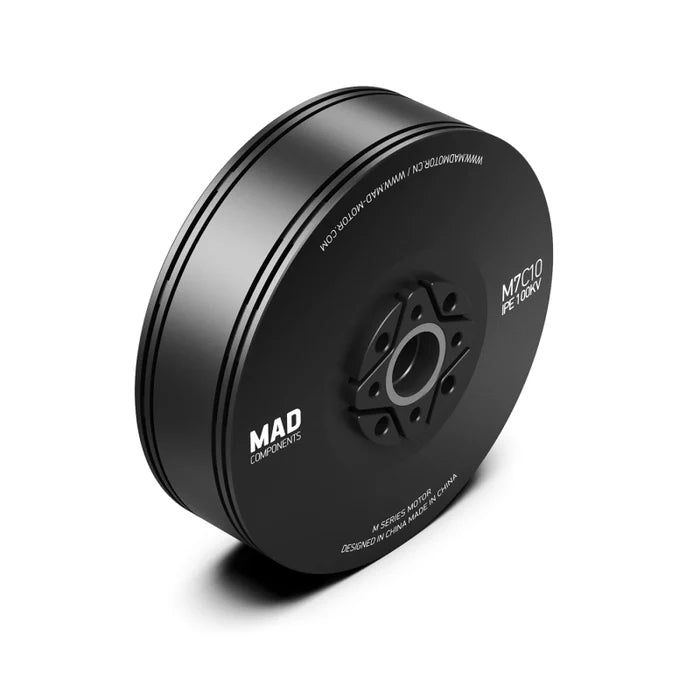

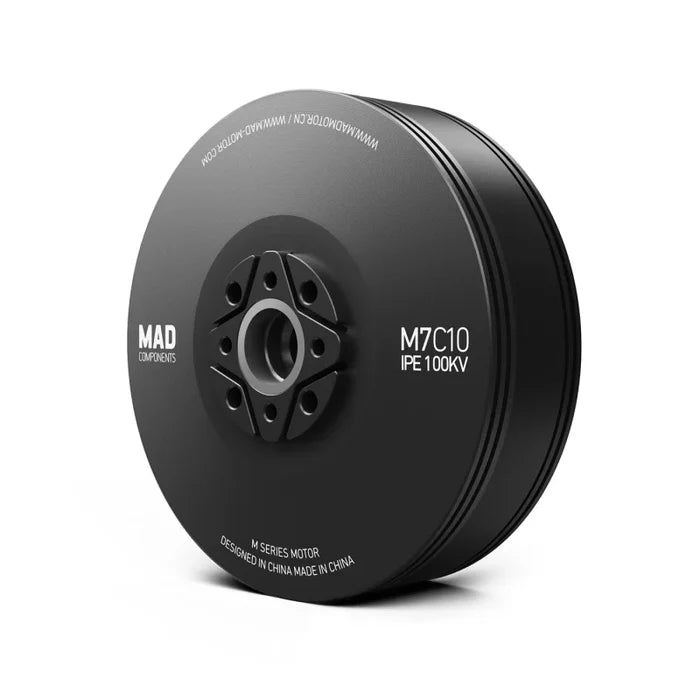

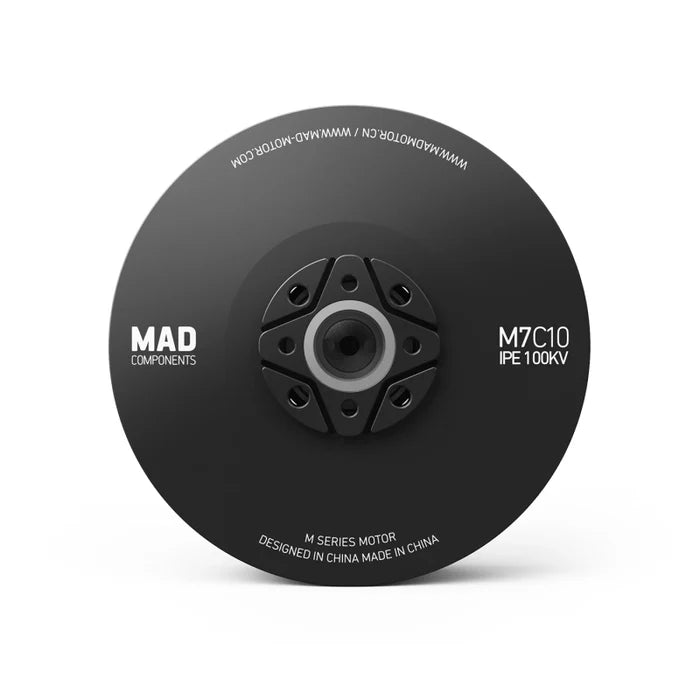

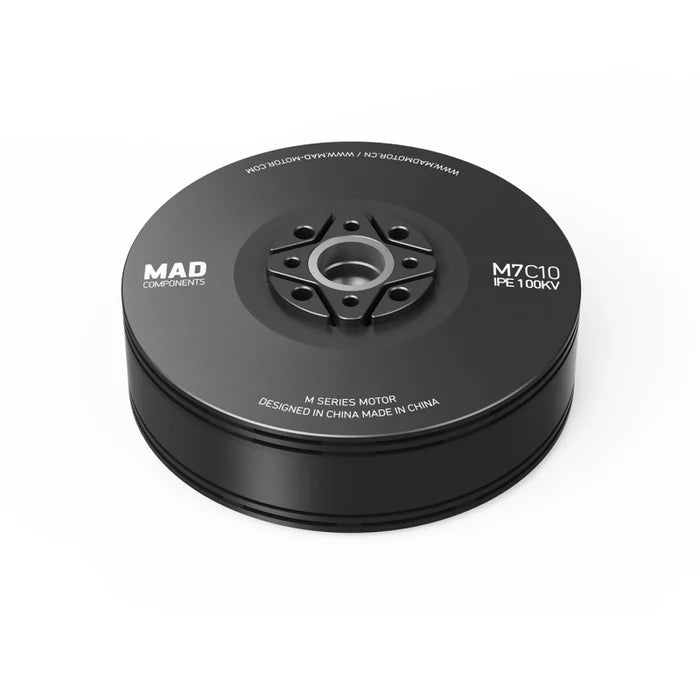

MAD M7C10 IPE V2 Brushless Motor
MAD M7C10 IPE V2 Brushless Motor
Product introduction
• Designed for UAVs including multirotor hexacopters and octocopters
• Supports 12S voltage and optimized for 2–4 kg single-axis payloads
• Ideal for mid-to-heavy lift applications with 26–28 inch carbon fiber propellers
Motor Data |
|||
| Motor Model | MAD M7C10 IPE V2.0 | Number of pole pairs | 21 |
| Stator | Anticorrosive | Varnished wire Degree | 180°C |
| Motor Size | D:78.3 × 27.8 mm | Magnet Degree | 150°C |
| Degree of Protection | IP35 | Cable Length | 150 mm 16# Awg(Black) silicone |
| Centrifugal Heat Dissipation | YES | Rotor Balance | ≤5 mg |
| Propeller Mounting Holes | D:20 M3×4, D:23 M3×4 | Motor Balance | ≤10 mg |
| Shaft Diameter | IN: 12 mm | Motor Mounting Holes | D:32 M4×4 |
| Bearing | 6901ZZ*2 | Disruptive test | 500 V |
Key Highlights
✔ Delivers up to 8.7 kg maximum thrust per axis
✔Motor weight: 270g
✔ Engineered for high stability and performance in multi-rotor systems
Applicable objects
• Medium-lift UAVs
• Hexacopter and octocopter builds requiring efficient and lightweight motors
• Professional users balancing thrust, voltage compatibility, and motor weight
Recommended accessories
Paddles: FLUXER PRO 26x7.8 MATT, FLUXER PRO 27x8.1 MATT, FLUXER PRO 28x8.4 MATT
ESC: AMPX PRO 40A (2-6S), AMPX 40A (5-14S) HV
Important Notes:
* The propeller size and pitch should be matched to your aircraft configuration—an incorrect propeller will reduce efficiency or overload the motor/ESC.
* Use an ESC with appropriate power rating and wiring harnesses capable of handling continuous and peak motor current.
Ensure the structural support and couplings can withstand torque and dynamic loads.
Perform a balance check and routine inspection before each manned flight.
Local aviation and manned flight regulations must be followed.
Frequently Asked Questions:
Q: Which propeller should I use?
A: – Propellers: FLUXER PRO 26x7.8 MATT, FLUXER PRO 27x8.1 MATT, FLUXER PRO 28x8.4 MATT
Q: Which ESC is compatible?
A: Please use the manufacturer's recommended models: AMPX PRO 40A (2-6S), AMPX 40A (5-14S)
HV
Q: What is the delivery time? A: Delivery time is usually 7-14 days, but please confirm the current inventory and shipping time at checkout.
100KV：
120KV：
190KV：
