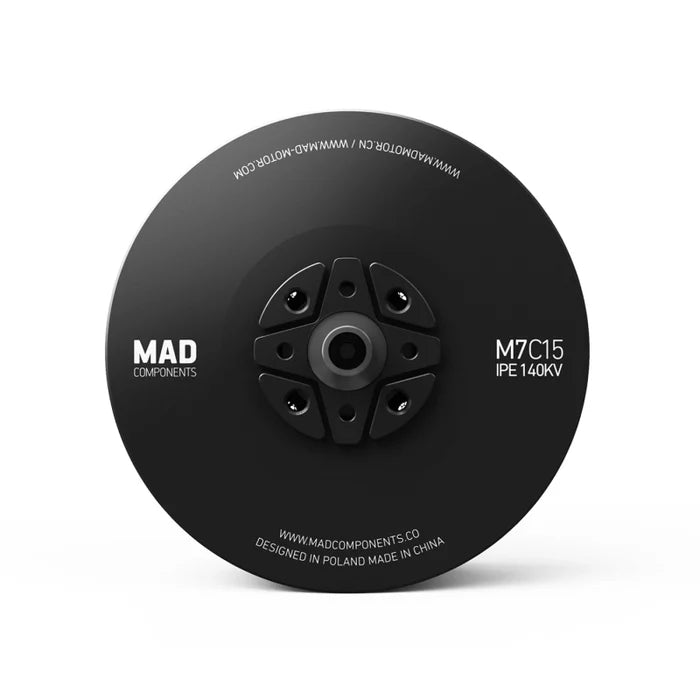

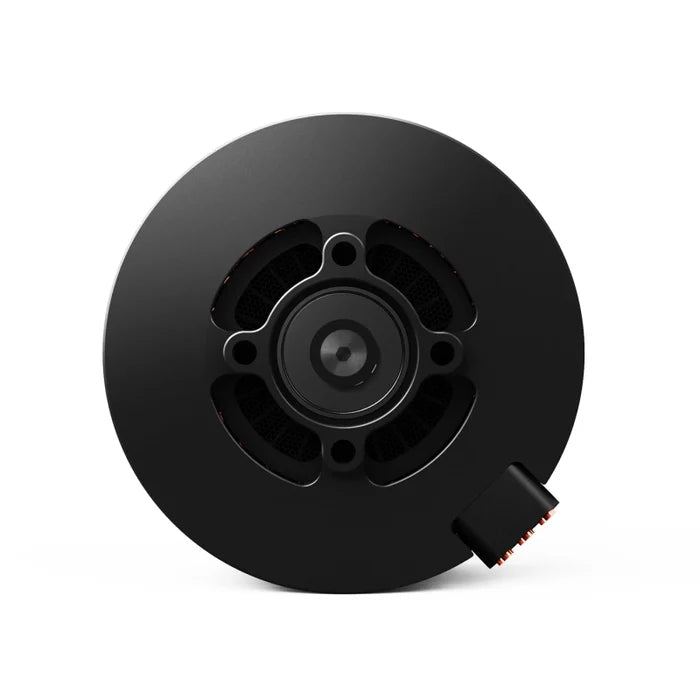

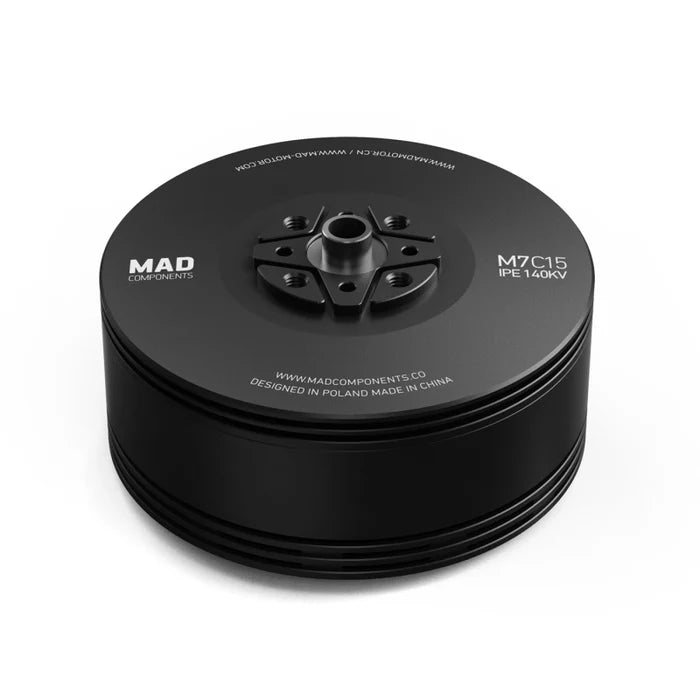

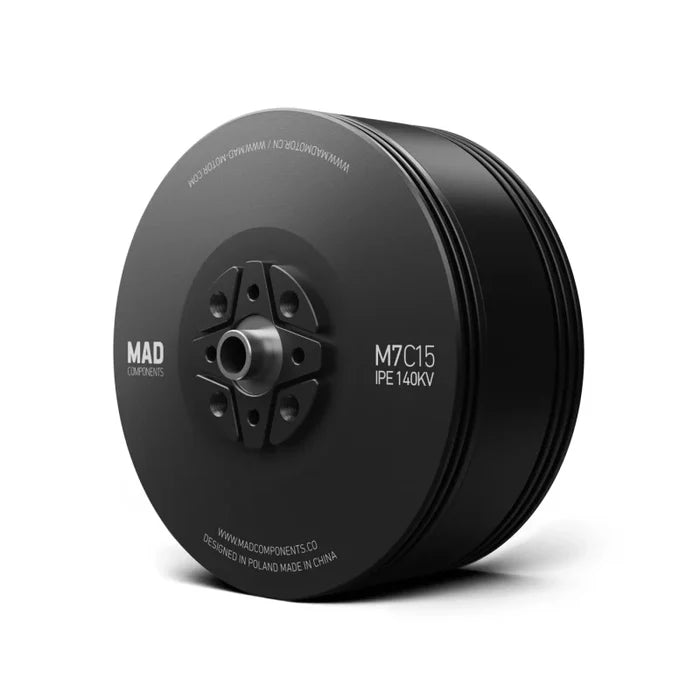

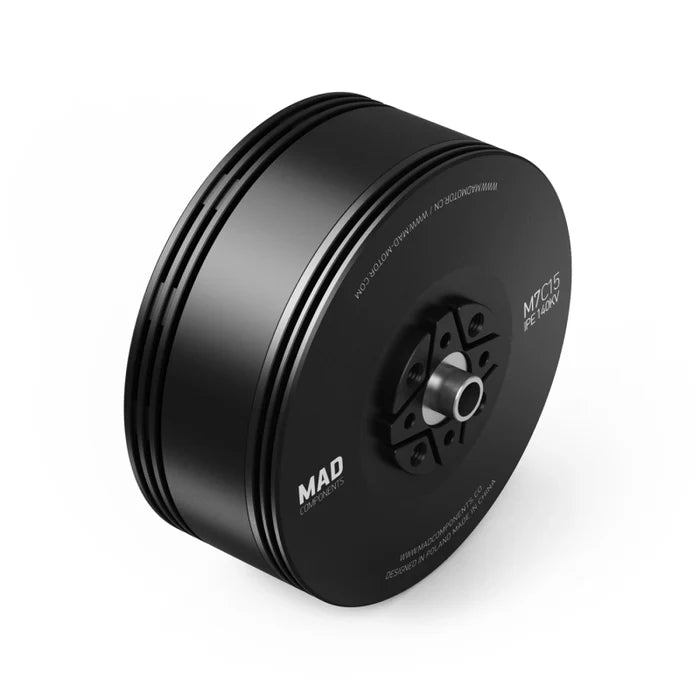

MAD M7C15 IPE Manned Drone Motor
MAD M7C15 IPE Manned Drone Motor
Product introduction
• Heavy-duty motor designed for manned or industrial-grade UAVs
• Ideal for hexacopters, octocopters, firefighter drones, and tethered drone systems
• Supports 12S voltage and 4–6 kg single-axis payloads with 26–27 inch carbon fiber propellers
Motor Data |
|||
| Motor Model | MAD M7C15 IPE V2.0 | Number of pole pairs | 14 |
| Stator | Anticorrosive | Varnished wire Degree | 180°C |
| Motor Size | D:79.2 × 42.7 mm | Magnet Degree | 150°C |
| Degree of Protection | IP45 | Cable Length | 150 mm 14# Awg(Black) silicone |
| Centrifugal Heat Dissipation | YES | Rotor Balance | ≤5 mg |
| Propeller Mounting Holes | D:20 M3×8, D:23 M4×4 | Motor Balance | ≤10 mg |
| Shaft Diameter | IN: 8 mm | Motor Mounting Holes | D:32 M4×4 |
| Bearing | 688ZZ *2 | Disruptive test | 500 V |
Key Highlights
✔ Delivers up to 15.5 kg maximum thrust per axis
✔Motor weight: 450g
✔ Compatible with high-load, high-stability aerial platforms.
Applicable objects
• Firefighting and rescue drones.
• Tethered or industrial-grade UAVs with heavy payload requirements.
Recommended accessories
Paddles: FLUXER PRO 26x7.8 MATT, FLUXER PRO 27x8.1 MATT, FLUXER PRO 22x6.6 MATT
ESC: AMPX 80A (5-14S), AMPX 80A (5-14S) Important Notes:
* The propeller size and pitch should be matched to your aircraft configuration—an incorrect propeller will reduce efficiency or overload the motor/ESC.
* Use an ESC with appropriate power rating and wiring harnesses capable of handling continuous and peak motor current.
Ensure the structural support and couplings can withstand torque and dynamic loads.
Perform a balance check and routine inspection before each manned flight.
Local aviation and manned flight regulations must be followed.
Frequently Asked Questions:
Q: Which propeller should I use?
A: – Propellers: FLUXER PRO 26x7.8 MATT, FLUXER PRO 27x8.1 MATT, FLUXER PRO 22x6.6 MATT
Q: Which ESC is compatible?
A: Please use the manufacturer's recommended model: AMPX 80A (5-14S), AMPX 80A (5-14S)
Q: What is the delivery time? A: Delivery time is usually 7-14 days, but please confirm the current inventory and shipping time at checkout.
KV140：
KV220：
