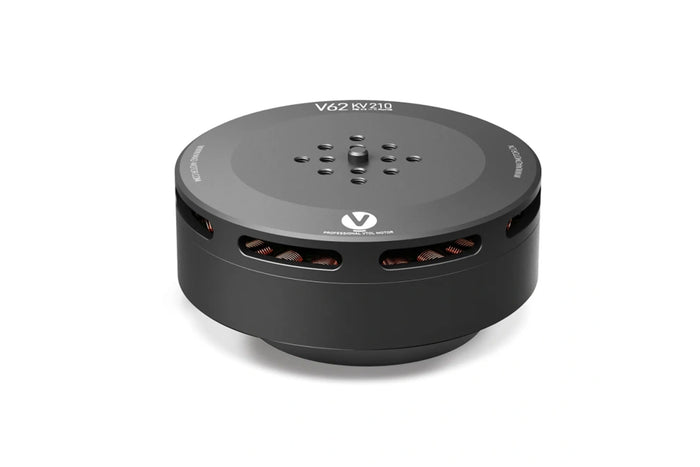

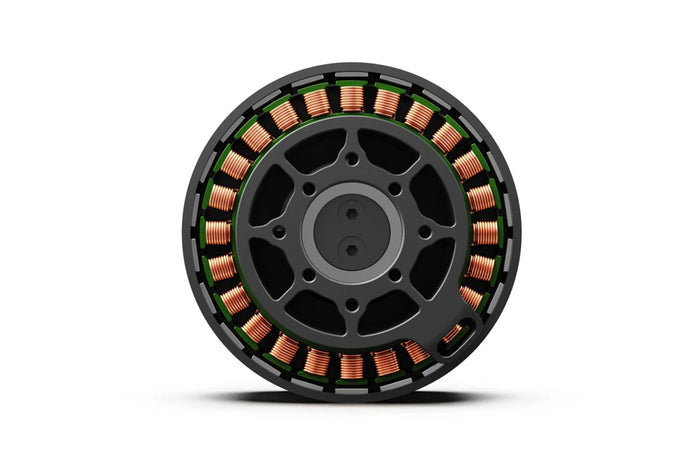

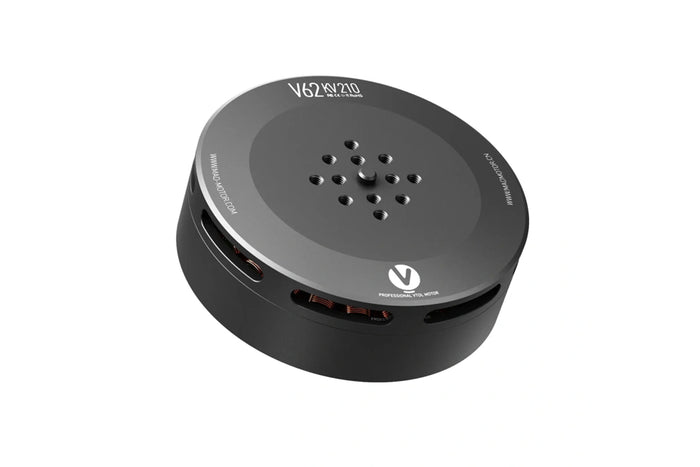

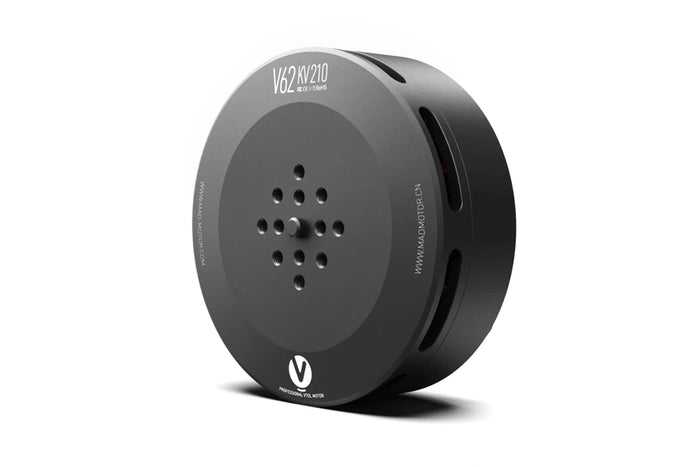

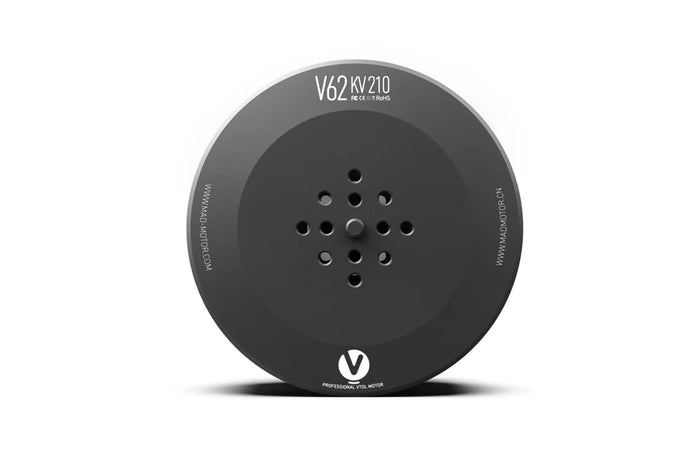

MAD V62 eVTOL Drone Motor
MAD V62 eVTOL Drone Motor
Product Overview:
Built for 15-20kg MTOW professional industrial eVTOL fixed-wing UAS, with large-pitch eVOTL CF 18-22" propellers, achieving high payload, high efficiency, and excellent reliability, providing reliable power support for various endurance flights. Max thrust is up to 11.5kg per rotor, unit motor weighs only 270g.
Motor Data |
|||
| Motor Model | MAD V62 IPE V1.0 | Number of pole pairs | 14 |
| Stator | Anticorrosive | Varnished wire Degree | 180°C |
| Motor Size | D:72 × 33.5 mm | Motor Balance | 150°C |
| Degree of Protection | IP35 | Cable Length | 80mm 16# Awg(Black) silicone |
| Centrifugal Heat Dissipation | YES | Rotor Balance | ≤5 mg |
| Propeller Mounting Holes | D:12 M3×4, 18 M3×4, 22 M3×4 | Motor Balance | ≤10 mg |
| Shaft Diameter | IN: 12 mm | Motor Mounting Holes | D:25 M3×4, D:30 M3×4 |
| Bearing | 6801ZZ*2 | Disruptive test | 500 V |
Key Highlights:
✔ Recommended Hover Thruster: 4.0~6.0 kgf
✔ Optimized Weight: 271g
✔ Maximum Thruster: 11.6kgf
Applicable to:
• VTOL UAVs
• Fixed-wing UAVs
Recommended Accessories:
– ESC: AMPX 80A (5-14S)
– Propellers: CF FLUXER 22.1x7.4 VTOL, CF FLUXER 18.1x7.2 VTOL
Selection and Installation Notes:
• The propeller size and pitch should match your aircraft configuration—an incorrect propeller will reduce efficiency or overload the motor/ESC.
• Use an ESC with appropriate power rating and wiring harnesses capable of handling continuous and peak motor current.
Ensure the structural support and couplings can withstand torque and dynamic loads.
Perform a balance check and routine inspection before each manned flight.
Local aviation and manned flight regulations must be followed.
Frequently Asked Questions:
Q: Which propeller should I use?
A: – Propeller: CF FLUXER 22.1x7.4 VTOL, CF FLUXER 18.1x7.2 VTOL
Q: Which ESC is compatible?
A: Please use the model provided by the manufacturer: – ESC: AMPX 80A (5-14S)
Q: What is the delivery time?
A: Delivery time is typically 7-14 days, but please confirm current stock and delivery time at checkout.
KV210:
KV280:
