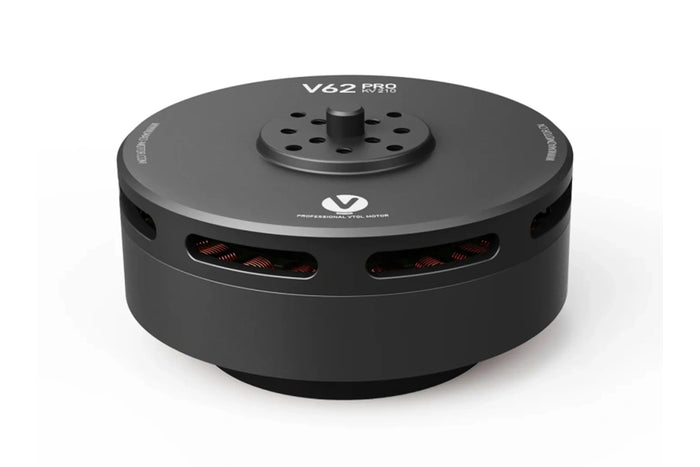

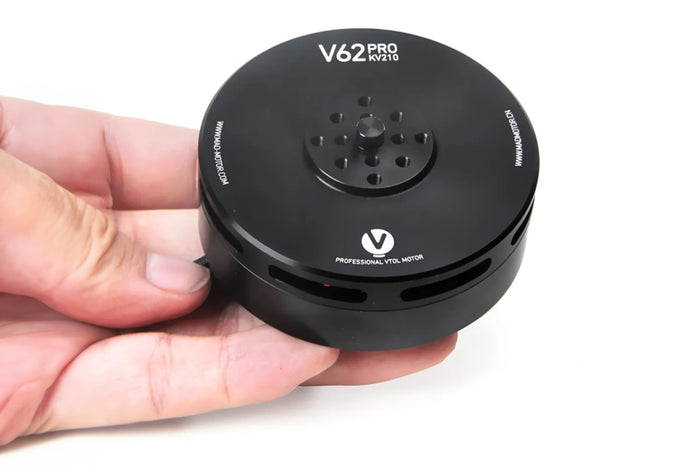

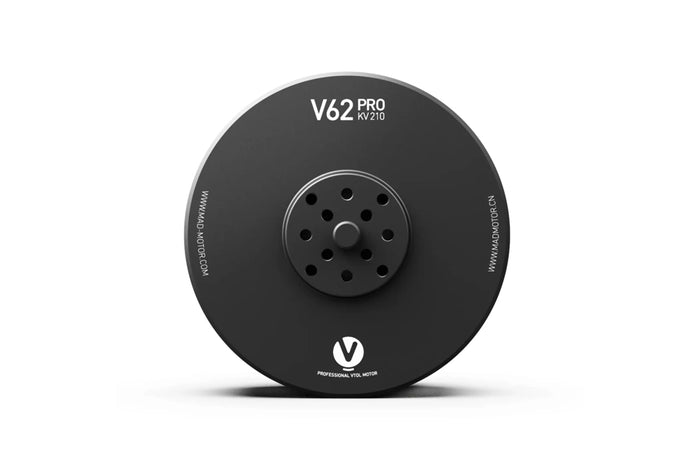

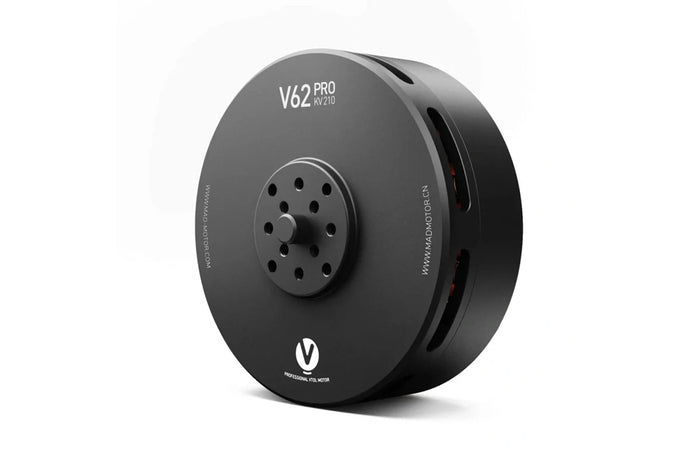

MAD V62 PRO Feathering Propeller Autocenter eVTOL Drone Motor
MAD V62 PRO Feathering Propeller Autocenter eVTOL Drone Motor
Product Overview:
This is an eVTOL autocentre motor designed to carry a payload of 3.5-6 kg per rotor, with an 18″ carbon propeller. Maximum thrust is up to 11.8 kg per rotor, and the unit motor weighs only 305 g. Designed for 15-20 kg MTOW professional industrial eVTOL fixed-wing UAS, with large-pitch eVOTL CF propellers, the motor with propellers is designed to automatically return to a horizontal position relative to the wing upon shutdown, ensuring streamlined alignment.
Motor Data |
|||
| Motor Model | MAD V62 PRO IPE V1.0 | Number of pole pairs | 19 |

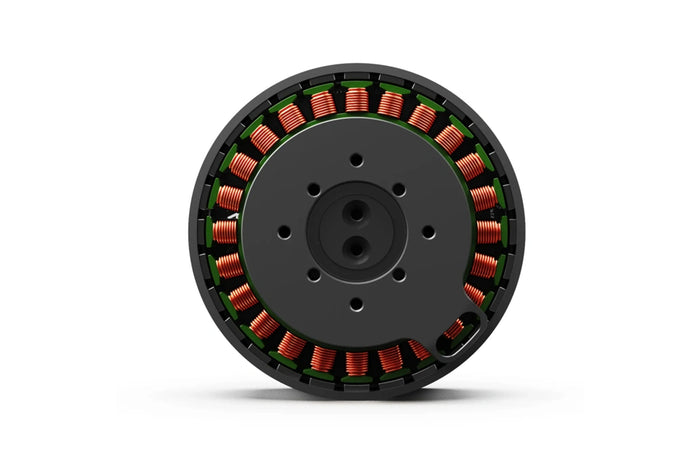

| Stator | Anticorrosive | Varnished wire Degree | 180°C |
| Motor Size | D:72 × 37.5 mm | Motor Balance | 150°C |
| Degree of Protection | IP35 | Cable Length | 80 mm 16# Awg(Black) silicone |
| Centrifugal Heat Dissipation | YES | Rotor Balance | ≤5 mg |
| Propeller Mounting Holes | D:12 M3×4, 18 M3×4, 22 M3×4 | Motor Balance | ≤10 mg |
| Shaft Diameter | IN: 12 mm | Motor Mounting Holes | D:25 M3×4, D:30 M3×4 |
| Bearing | 6801ZZ*2 | Disruptive test | 500 V |
Key Highlights:
✔ Recommended Hover Thruster: 4.4~5.9 kgf
✔ Maximum Weight: 11.6 kgf
✔ Optimized Weight: 323 g
Suitable for:
• VTOL UAVs
• Fixed-wing UAVs
Recommended Accessories:
– ESC: AMPX 80A (5-14S)
– Propeller: CF FLUXER 18.1x7.2 VTOL, CF FLUXER 22.1x7.4 VTOL, FLUXER PRO 22x6.6 MATT
Selection and Installation Notes:
· The propeller size and pitch should match your aircraft configuration—an incorrect propeller will reduce efficiency or overload the motor/ESC.
· Use an ESC with appropriate power rating and wiring harnesses capable of handling continuous and peak motor current.
Ensure the structural support and couplings can withstand torque and dynamic loads.
Perform a balance check and routine checks before each manned flight.
Local aviation and manned flight regulations must be followed.
Frequently Asked Questions:
Q: Which propeller should I use?
A: – Propellers: CF FLUXER 18.1x7.2 VTOL, CF FLUXER 22.1x7.4 VTOL, FLUXER PRO 22x6.6 MATT
Q: Which ESC is compatible?
A: Please use the model provided by the manufacturer: – ESC: AMPX 80A (5-14S) Q: What is the delivery time?
A: The delivery time is usually 7-14 days, but please confirm the current inventory and delivery time at checkout.
210KV:
280KV:
