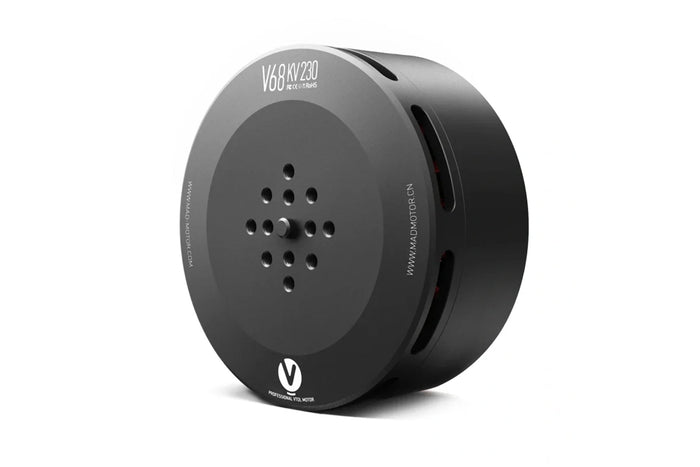

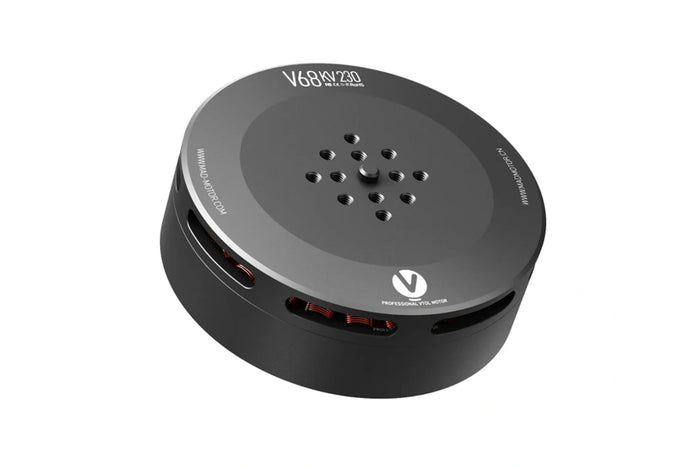

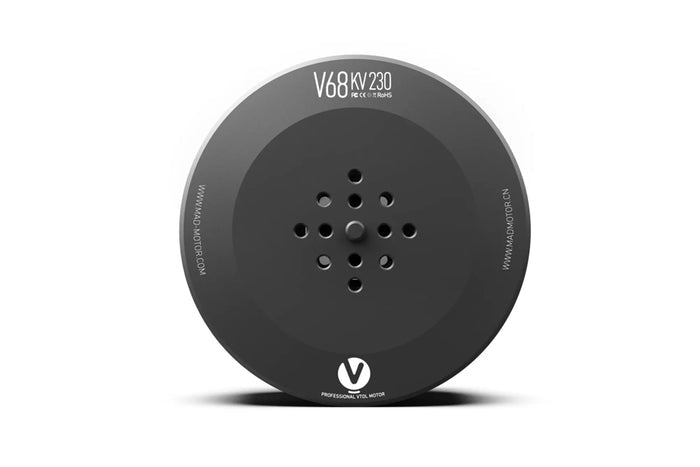

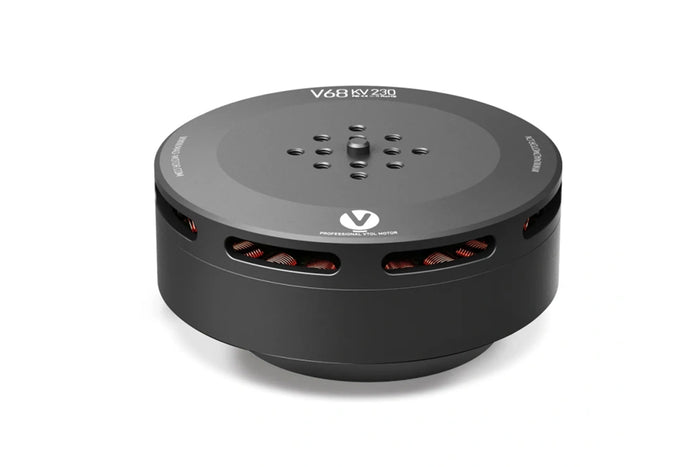

MAD V68 IPE EVTOL Drone motor
MAD V68 IPE EVTOL Drone motor
Product Overview: Designed to carry a payload of 5-6.5kg per rotor, with a maximum thrust of up to 13.9kg per rotor, and a unit motor weighing only 378g. Designed for 15-20kg MTOW professional industrial EVTOL fixed-wing UAS, with large-pitch EVOTL CF propellers, achieving high load, high efficiency, and excellent reliability, providing reliable power support for various endurance flights.
Motor Data |
|||
| Motor Model | MAD V68 IPE V1.0 | Number of pole pairs | 14 |

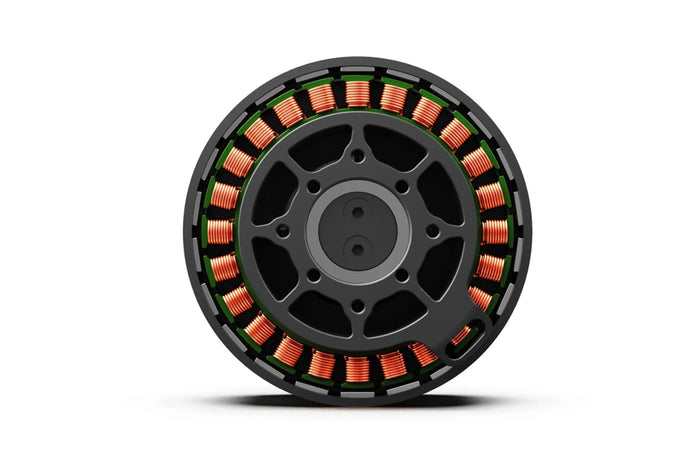

| Stator | Anticorrosive | Varnished wire Degree | 150°C |
| Motor Size | D:72 × 39.5 mm | Motor Balance | 150°C |
| Degree of Protection | IP35 | Cable Length | 80mm 16# Awg(Black) silicone |
| Centrifugal Heat Dissipation | YES | Rotor Balance | ≤5 mg |
| Propeller Mounting Holes | D:12 M3×4, 18 M3×4, 22 M3×4 | Motor Balance | ≤10 mg |
| Shaft Diameter | IN: 12 mm | Motor Mounting Holes | D:25 M3×4, D:30 M4×4 |
| Bearing | 6801ZZ*2 | Disruptive test | 500 V |
Key Highlights:
✔ Recommended Hover Thruster: 5.0~7.0 kgf
✔ Maximum Weight: 13.9 kgf
✔ Optimized Weight: 378 g
Applicable Devices:
• VTOL UAVs
• Multi-rotor UAVs
• Fixed-wing UAVs
Recommended Accessories:
– ESC: AMPX 80A (5-14S)
– Propellers: FLUXER PRO 22x6.6 MATT, CF FLUXER 22.1x7.4 VTOL
Selection and Installation Notes:
• The propeller size and pitch should match your aircraft configuration—an incorrect propeller will reduce efficiency or overload the motor/ESC.
• Use an ESC with appropriate power rating and wiring harnesses capable of handling continuous and peak motor current.
Ensure the structural support and couplings can withstand torque and dynamic loads.
Perform a balance check and routine inspection before each manned flight.
Local aviation and manned flight regulations must be followed.
Frequently Asked Questions:
Q: Which propeller should I use?
A: – Propeller: FLUXER PRO 22x6.6 MATT, CF FLUXER 22.1x7.4 VTOL
Q: Which ESC is compatible?
A: Please use the model provided by the manufacturer: – ESC: AMPX 80A (5-14S)
Q: What is the delivery time? A: Delivery time is usually 7-14 days, but please confirm the current inventory and shipping time at checkout.
230KV：
