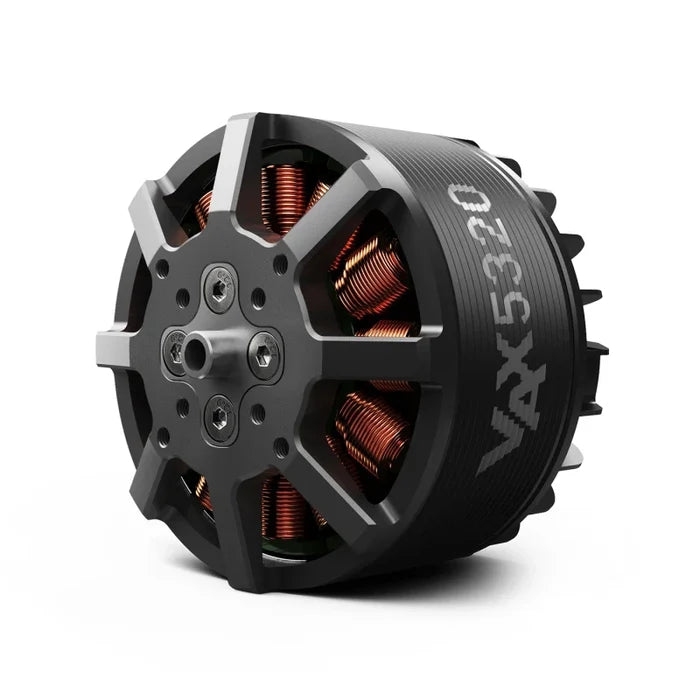

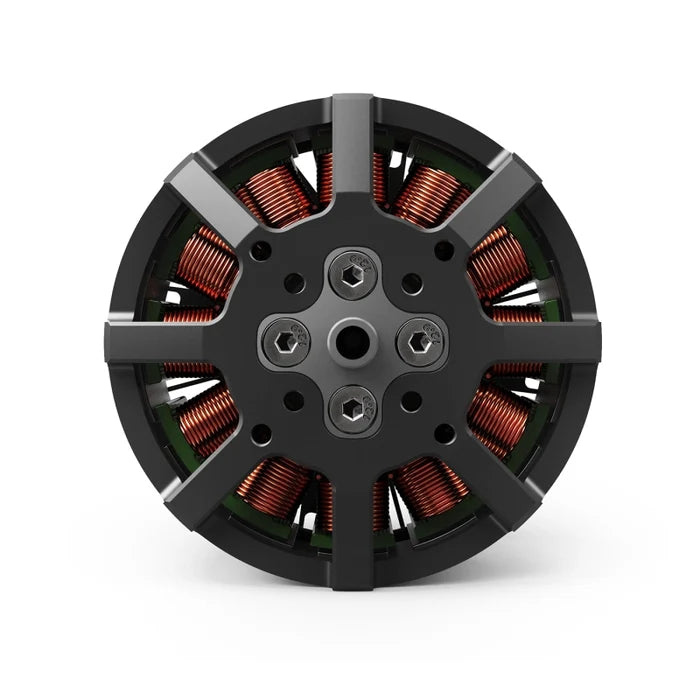

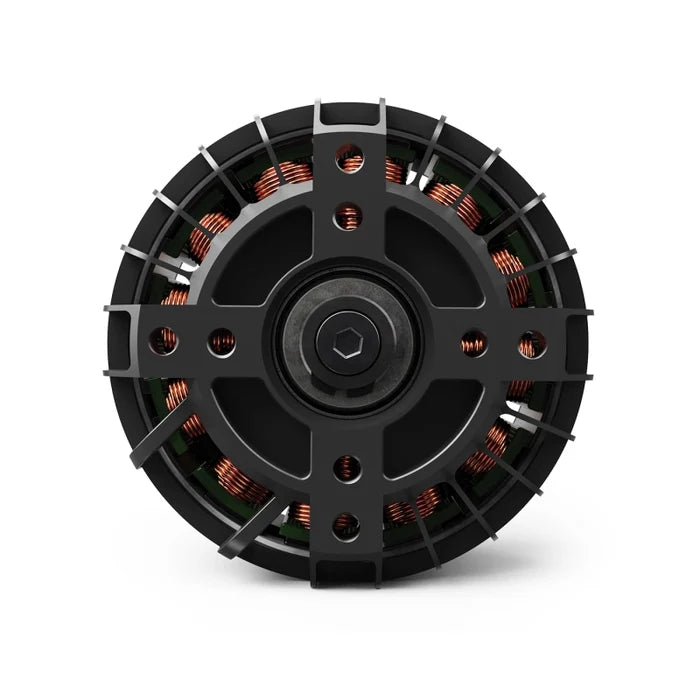

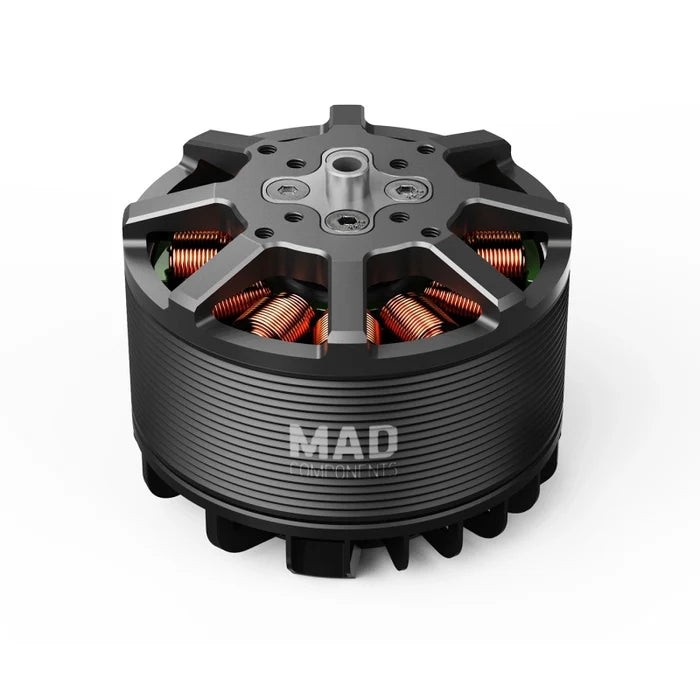

MAD VAX 5320 EVTOL Drone FPV Motor
MAD VAX 5320 EVTOL Drone FPV Motor
Product Overview:
The VAX 5320 thrust-bearing drone is designed for EVTOL, AIRCRAFT, and XCLASS drones, carrying 8-10 kg and supporting 12S voltage. The VAX 5320 features improved reliability and stability for long-range flights. It maintains the excellent properties and characteristics of its predecessor while enhancing motor safety and service life to fully meet the demands of various industries.
Motor Data |
|||
| Motor Model | MAD VAX 5320 EEE V1.0 | Number of pole pairs | 7 |
| Stator | Anticorrosive | Varnished wire Degree | 180°C |
| Motor Size | D:61.1 × 51 mm | Magnet Degree | 150°C |
| Degree of Protection | Rain protection | Cable Length | 150 mm 14# Awg(Black) silicone |
| Centrifugal Heat Dissipation | Independent | Rotor Balance | ≤5 mg |
| Propeller Mounting Holes | D:31 M3×4, D:20 M3×4 | Motor Balance | ≤10 mg |
| Shaft Diameter | IN: 8 mm | Motor Mounting Holes | D:30 M4×4, D:44 M4×4 |
| Bearing | 688ZZ*2 / 1980*1 | Disruptive test | 500 V |
Key Highlights:
✔ Recommended Hover Thruster: 3.0~4.0 kgf
✔ Maximum Weight: 9.1 kgf
✔ Optimized Weight: 411 g
Applicable Devices:
• VTOL Drones
• Fixed-wing Drones
• Agricultural Drones
Recommended Accessories:
– ESCs: AMPX 80A (5-14S), AMPX 40A (5-14S) HV, AMPX 120A (5-14S)
- Propellers: 13x12x3 Carbon Fiber, 13x12x3 Carbon Fiber, FLUXER PRO 18x6.1 MATT, CF FLUXER 18.1x7.2 VTOL, 17x8x3 Carbon Fiber
Selection and Installation Notes:
· The propeller size and pitch should match your aircraft configuration—an incorrect propeller can reduce efficiency or overload the motor/ESC.
· Use an ESC with appropriate power rating and wiring harnesses capable of handling continuous and peak motor current.
Ensure the structural support and couplings can withstand torque and dynamic loads.
Perform a balance check and routine inspection before each manned flight.
Local aviation and manned flight regulations must be followed.
Frequently Asked Questions:
Q: Which propeller should I use?
A: – Propellers: 13x12x3 Carbon Fiber, 13x12x3 Carbon Fiber, FLUXER PRO 18x6.1 MATT, CF FLUXER 18.1x7.2 VTOL, 17x8x3 Carbon Fiber
Q: Which ESCs are compatible?
A: Please use the models provided by the manufacturer: – ESCs: AMPX 80A (5-14S), AMPX 40A (5-14S) HV, AMPX 120A (5-14S)
Q: What is the delivery time?
A: The usual delivery time is 7-14 days, but please confirm the current stock and delivery time at checkout.

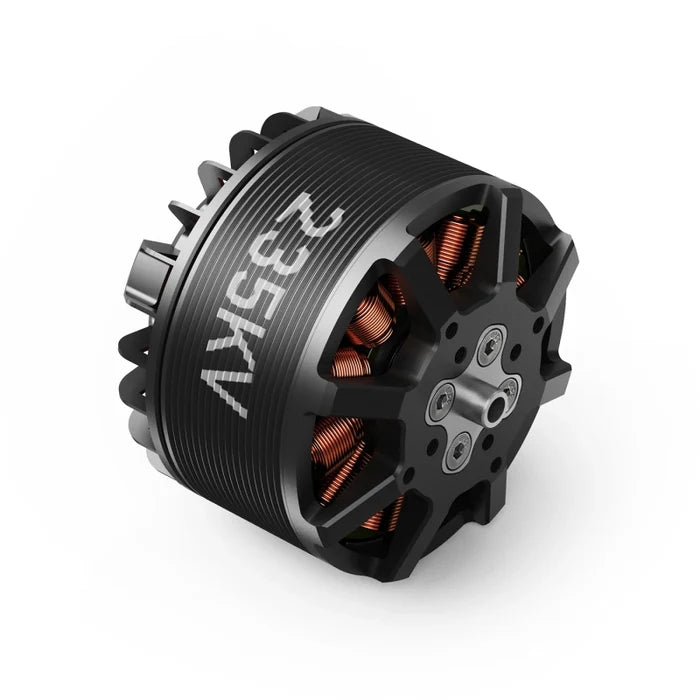

235KV:
360KV:
400KV:
