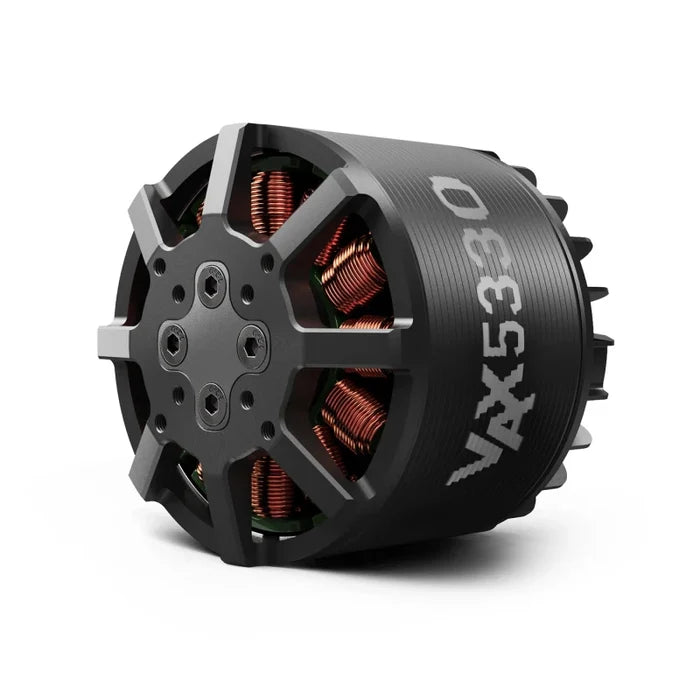

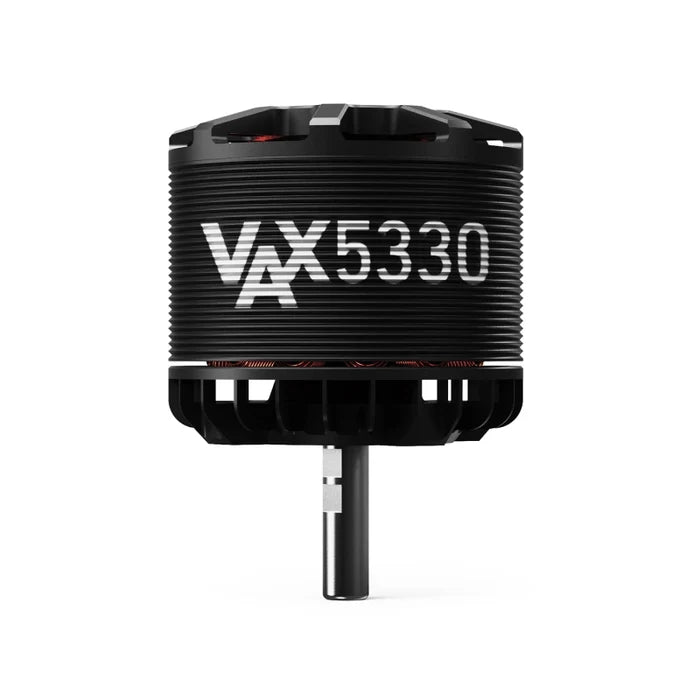

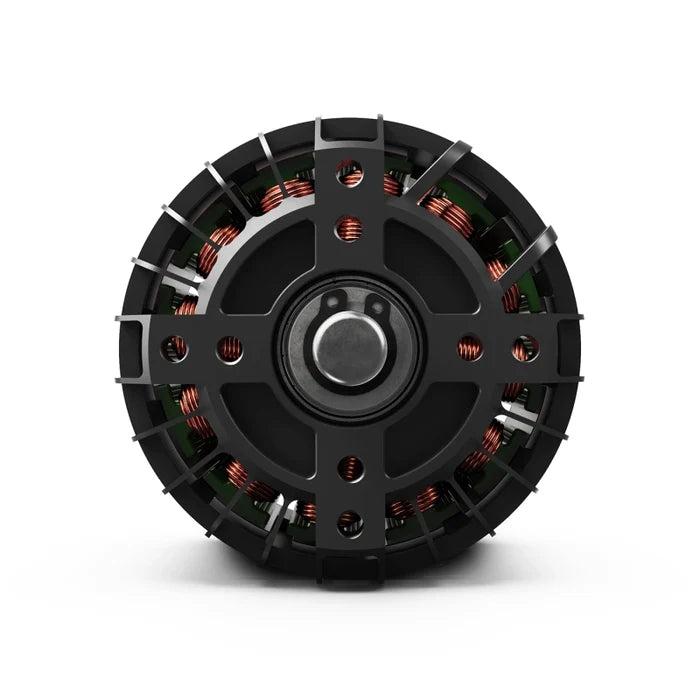

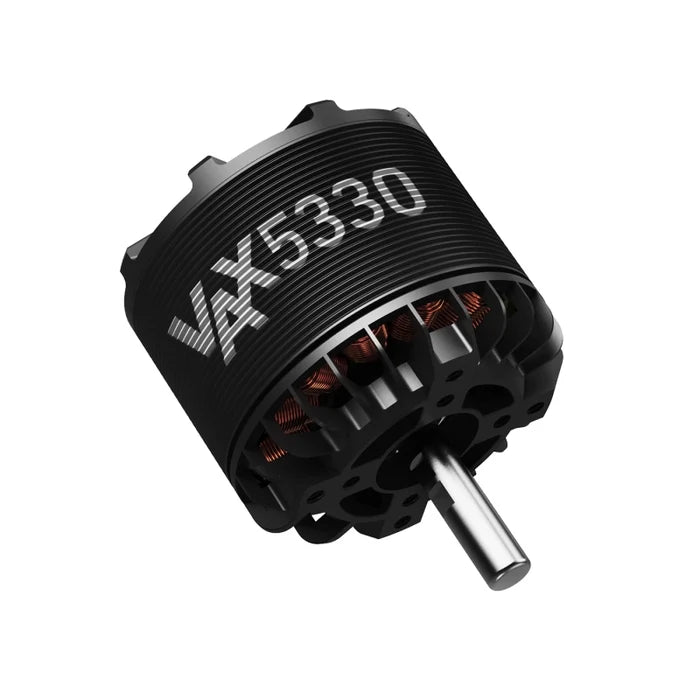

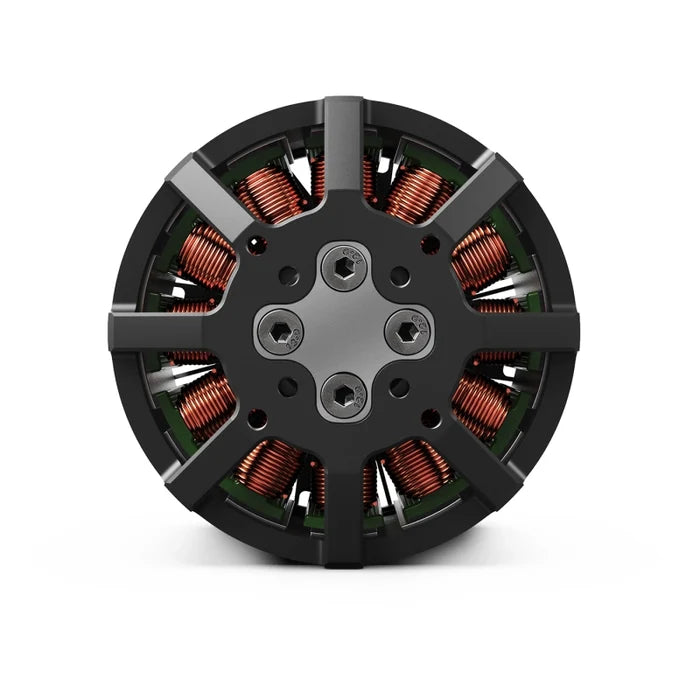

MAD VAX 5330 EVTOL Airplane Drone motor
MAD VAX 5330 EVTOL Airplane Drone motor
Product Overview:
Designed for EVTOL, AIRCRAFT, and XCLASS drones to carry 8-10 kg, supports 12S voltage. 2. Long shaft motors may be used to drive pusher propellers (the motor is located in the middle of the fuselage, transmitting power through an axle to the tail boom).
Motor Data |
|||
| Motor Model | MAD VAX 5330 EEE V1.0 | Number of pole pairs | Anticorrosive |
| Stator | Anticorrosive | Varnished wire Degree | 180°C |
| Motor Size | D:61.1 × 84 mm | Magnet Degree | 150°C |
| Degree of Protection | Rain protection | Cable Length | 150 mm 14# Awg(Black) silicone |
| Centrifugal Heat Dissipation | Independent | Rotor Balance | ≤5 mg |
| Propeller Mounting Holes | D:31 M3×4, D:20 M3×4 | Motor Balance | ≤10 mg |
| Shaft Diameter | IN: 8 mm | Motor Mounting Holes | D:30 M4×4, D:44 M4×4 |
| Bearing | 688ZZ*2 / 1980*1 | Disruptive test | 500 V |
Key Highlights:
✔ Recommended Hover Thruster: 4.0~5.0 kgf
✔ Maximum Weight: 11.2 kgf
✔ Optimized Weight: 570 g
Suitable for:
• eVTOL drones
Recommended Accessories:
– ESCs: AMPX 80A (5-14S), AMPX 120A (5-14S)
- Propellers: 22*10, 18*12, 19*10, 20*10
Selection and Installation Notes:
· The propeller size and pitch should match your aircraft configuration—an incorrect propeller will reduce efficiency or overload the motor/ESC.
· Use an ESC with appropriate power rating and wiring harness capable of handling continuous and peak motor current.
Ensure the structural support and couplings can withstand torque and dynamic loads.
Perform a balance check and routine inspection before each manned flight.
Local aviation and manned flight regulations must be followed.
Frequently Asked Questions:
Q: Which propeller should I use?
A: – Propellers: 22*10, 18*12, 19*10, 20*10
Q: Which ESC is compatible?
A: Please use the model provided by the manufacturer: – ESC: AMPX 80A (5-14S), AMPX 120A (5-14S)
Q: What is the delivery time? A: Delivery time is usually 7-14 days, but please confirm the current inventory and shipping time at checkout.
