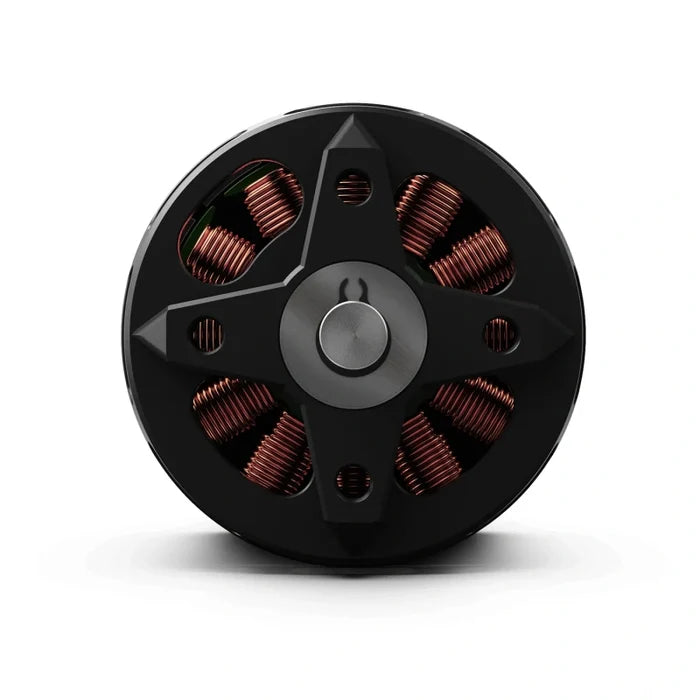

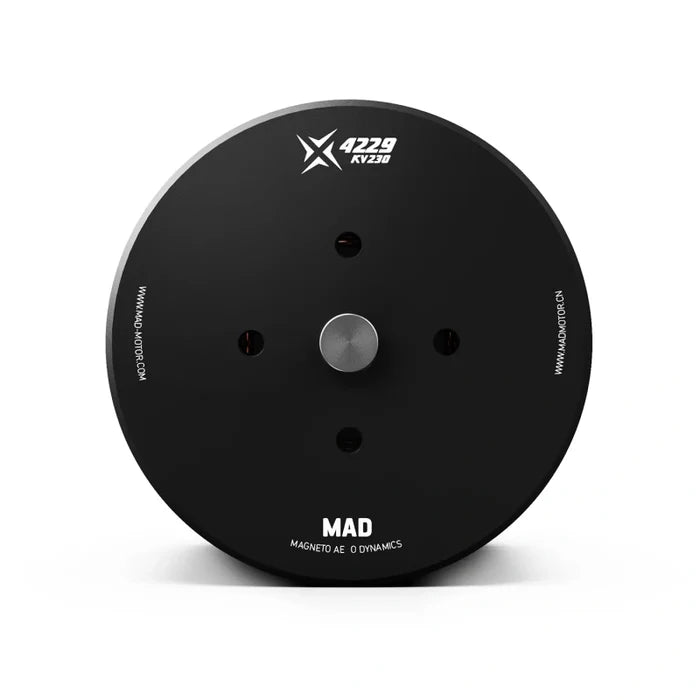

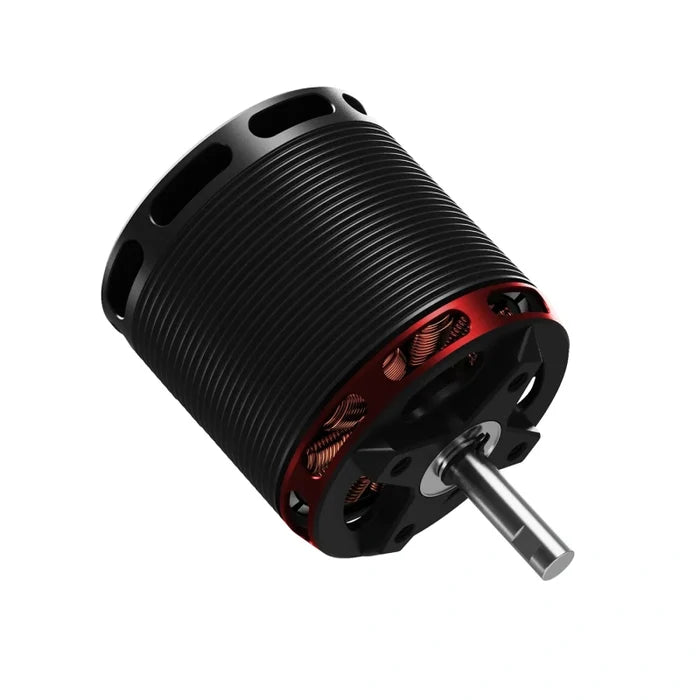

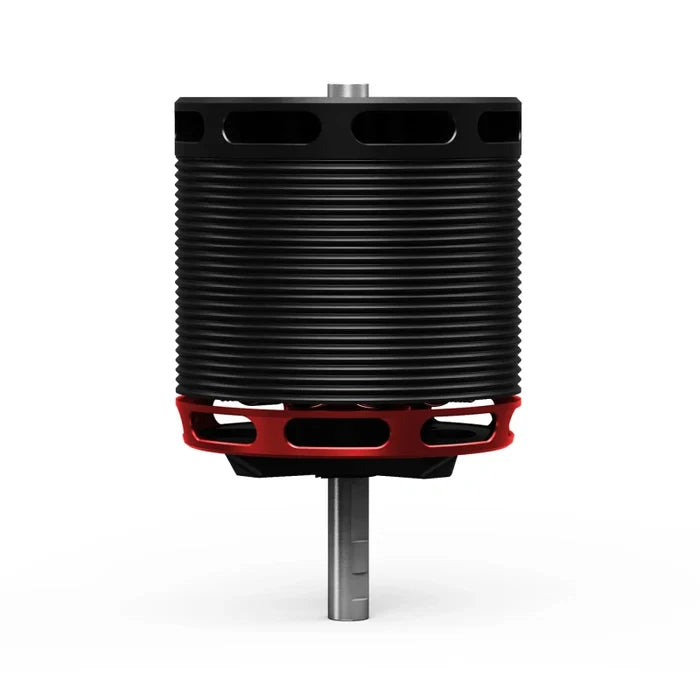

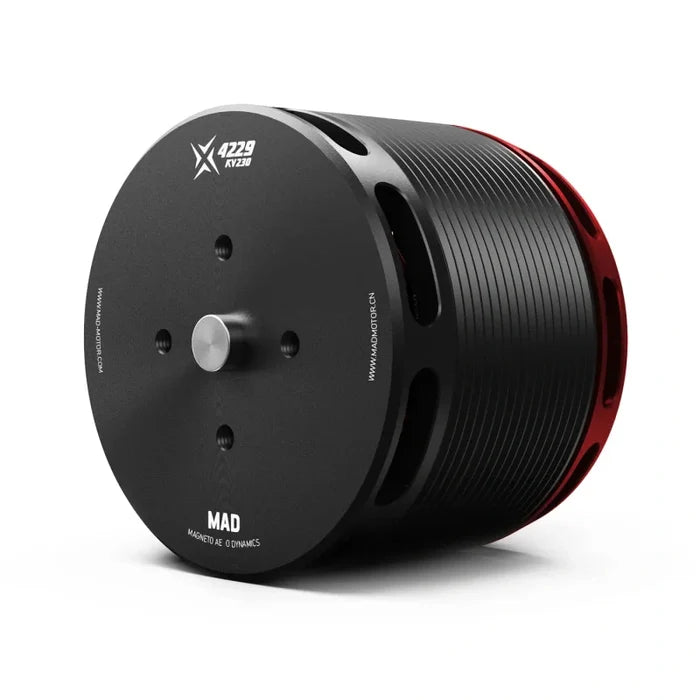

MAD X4229 eVTOL Airplane Drone Motor
MAD X4229 eVTOL Airplane Drone Motor
Product Overview:
These are very high-efficiency eVTOL engines. Max thrust 7.7kg (16.97bl). Long shaft motors may be used to drive pusher propellers (the motor is located in the middle of the fuselage, transmitting power through an axle to the tail boom).
| Motor Model | MAD X4229 IPE V1.0 | Number of pole pairs | 7 |
| Stator | TAIWAN / Anticorrosive | Varnished wire Degree | 180°C |
| Motor Size | D:50 × 78.3 mm | Magnet Degree | 150°C |
| Degree of Protection | IP35 | Cable Length | 110 mm 14# Awg(Black silicone) |
| Centrifugal Heat Dissipation | YES | Rotor Balance | ≤5 mg |

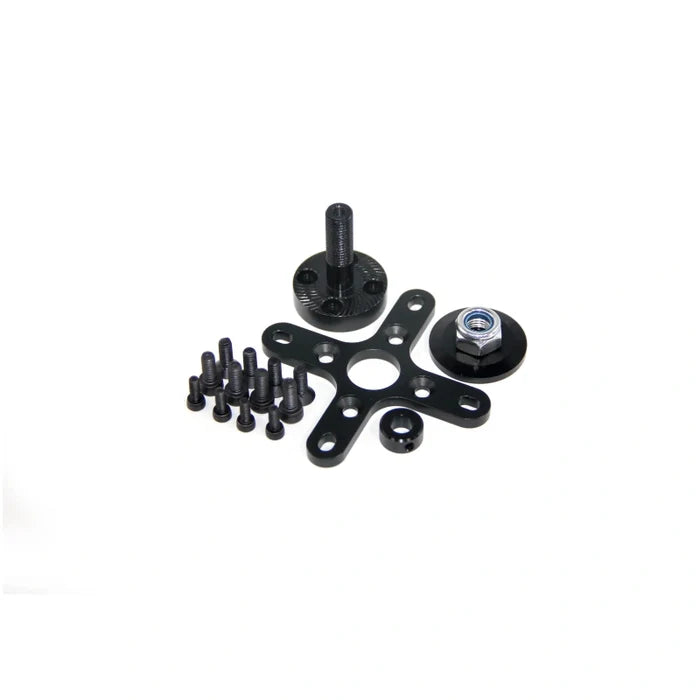

| Propeller Mounting Holes | D:20 M3×4 / M8 Nut | Motor Balance | ≤10 mg |
| Shaft Diameter | IN: 6 mm | Motor Mounting Holes | D:30 M4×4, D:56 M4×4, D:60 M4×4 |
| Bearing | EZO 686ZZ *2 / EZO 696ZZ | Disruptive test | 500 V |
Key Highlights:
Sustained thrust: 2.5~4.0kg
Max thrust: 8.3kg
Weight: 393g
Applicable Models:
• VTOL UAVs
Recommended Accessories:
– ESCs: AMPX 60A (5-14S), AMPX 80A (5-14S)
– Propellers: APC 18x8, APC 16x8, APC 17x10
Selection and Installation Considerations:
• The propeller size and pitch should match your aircraft configuration—incorrect propellers can reduce efficiency or cause motor/ESC overload.
• Use an ESC with appropriate power and ensure the wiring harness can withstand continuous and peak motor current.
Ensure structural supports and couplings can withstand torque and dynamic loads.
Perform a balance check and routine inspection before each manned flight.
Local aviation and manned flight regulations must be followed.
Frequently Asked Questions:
Q: Which propeller should I use?
A: – Propellers: APC 18x8, APC 16x8, APC 17x10
Q: Which ESC is compatible?
A: Please use the model provided by the manufacturer: – ESC: AMPX 60A (5-14S), AMPX 80A (5-14S)
Q: What is the delivery time?
A: Delivery time is typically 7-14 days, but please confirm current stock and delivery time at checkout.
230KV：
420KV：
