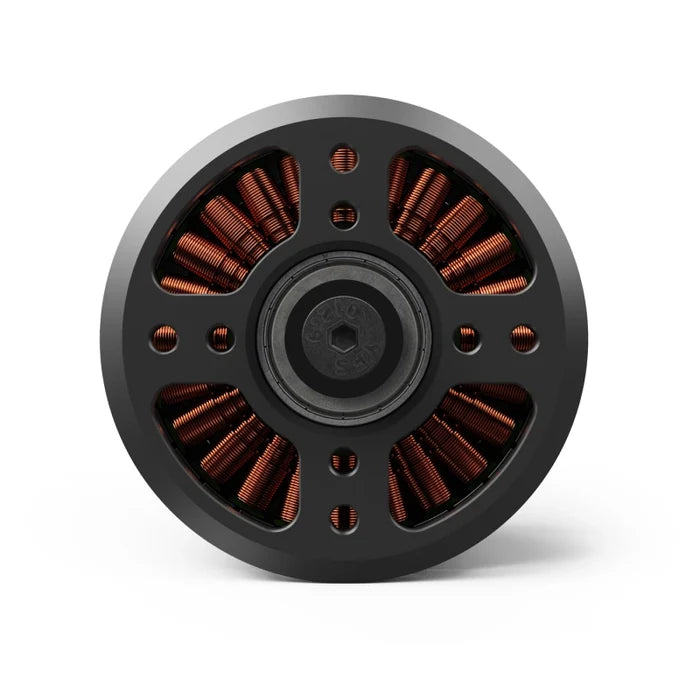

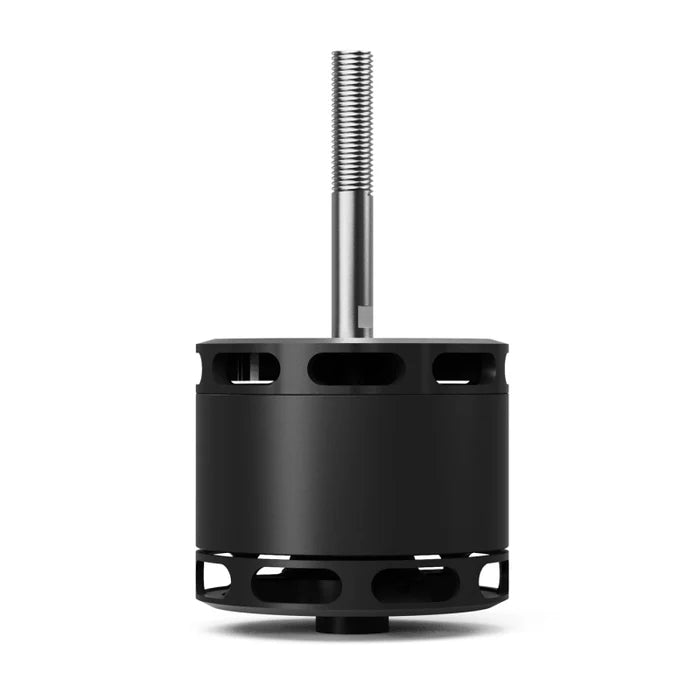

MAD X5230 (Long shaft)IPE eVTOL Airplane Drone Motor
MAD X5230 (Long shaft)IPE eVTOL Airplane Drone Motor
Product Overview: The MAD X5230 IPE is a brushless motor designed for single-axis loads of 4kg~6kg, used with 20~22 inch carbon fiber propellers. It boasts a maximum single-axis pull of 12kg and a single motor weight of 575g. The MAD X5230 IPE is a brushless motor for multi-rotor aircraft models, designed for professional aerial photography and industry applications. With its high pull, high efficiency, light weight, and excellent reliability, the MAD X5230PE provides uninterrupted power support for various industry applications and professional aerial photography, suitable for search and rescue, surveying, inspection, and other industries and professional aerial photography fields.
Motor Data |
|||
| Motor Model | MAD X5230 IPE V1.0 | Number of pole pairs | 14 |
| Stator | Anticorrosive | Varnished wire Degree | 220°C |
| Motor Size | D:60 × 116.5 mm | Motor Balance | 180°C |
| Degree of Protection | IP35 | Cable Length | 100 mm 14# Awg(Black) silicone |
| Centrifugal Heat Dissipation | YES | Rotor Balance | ≤5 mg |
| Propeller Mounting Holes | M8 Nut | Motor Balance | ≤10 mg |
| Shaft Diameter | IN: 10 mm | Motor Mounting Holes | D:30 M4×4，D:44 M4×4 |
| Bearing | 6800*2 6900*1 | Disruptive test | 500 V |
Key Highlights:
✔ Recommended Hover Thruster: 4.4~5.9 kgf
✔ Maximum: 12 kgf
• Suitable for:
• Cruise Drones
• Fixed-wing Drones
Recommended Accessories:
– ESC: AMPX 80A (5-14S)
– Propellers: FALCON 21*10, FALCON 22*10, FALCON 20*10
Selection and Installation Notes:
• The propeller size and pitch should match your aircraft configuration—an incorrect propeller will reduce efficiency or overload the motor/ESC.
• Use an ESC with appropriate power rating and wiring harnesses capable of handling continuous and peak motor current.
Ensure the structural support and couplings can withstand torque and dynamic loads.
Perform a balance check and routine checks before each manned flight.
Local aviation and manned flight regulations must be followed.
Frequently Asked Questions:
Q: Which propeller should I use?
A: – Propellers: FALCON 21*10, FALCON 22*10, FALCON 20*10
Q: Which ESC is compatible?
A: Please use the model provided by the manufacturer: – ESC: AMPX 80A (5-14S)
Q: What is the delivery time?
A: The usual delivery time is 7-14 days, but please confirm the current stock and delivery time at checkout.
225KV:
