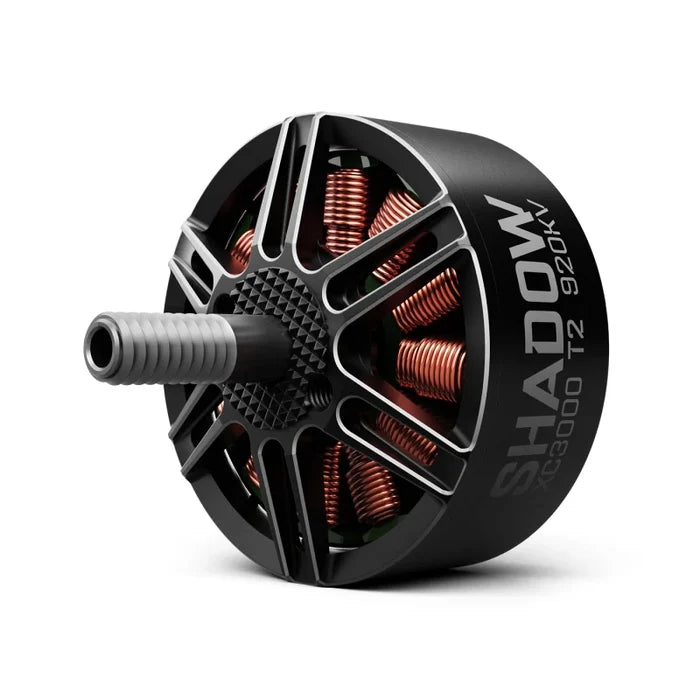

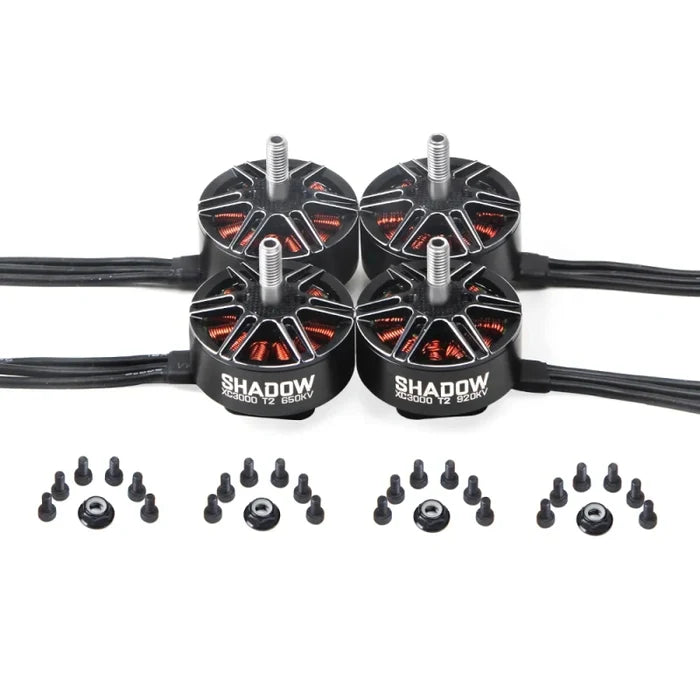

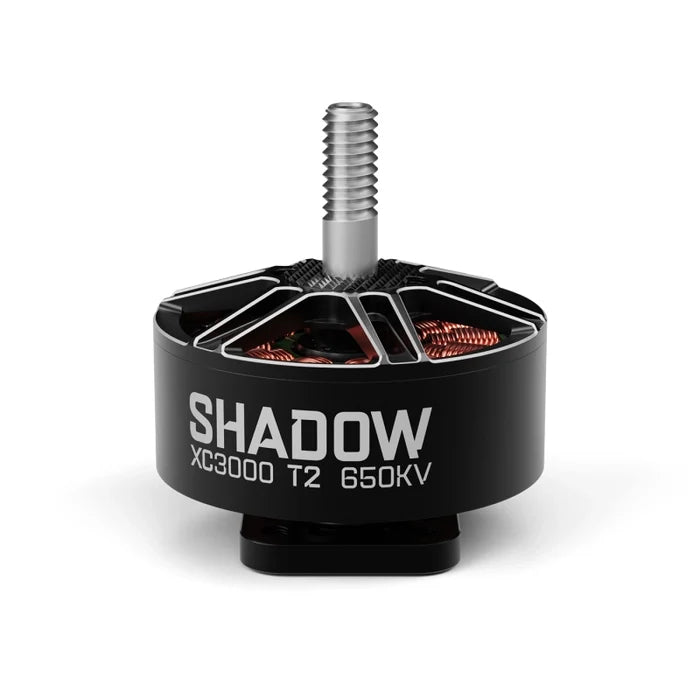

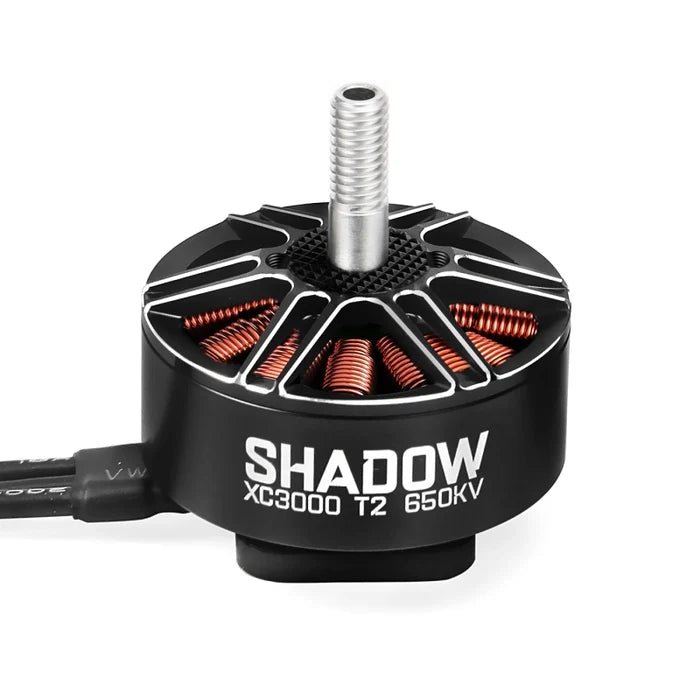

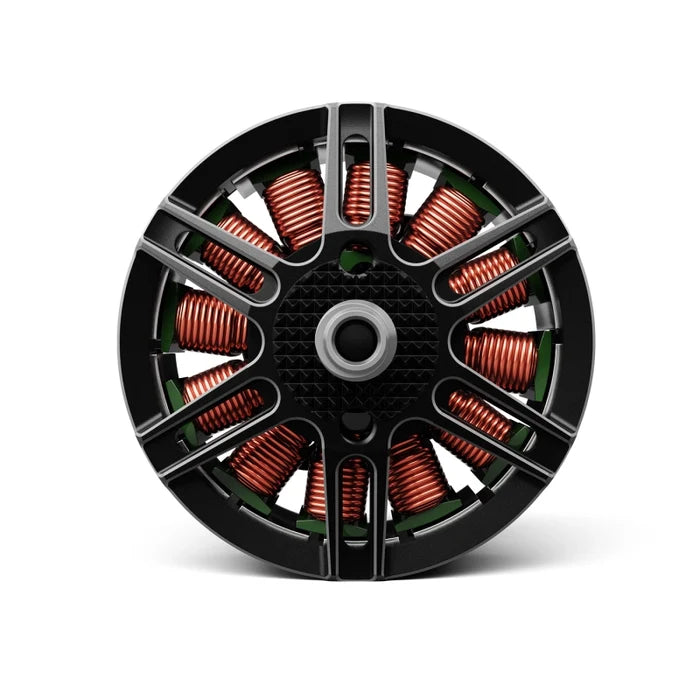

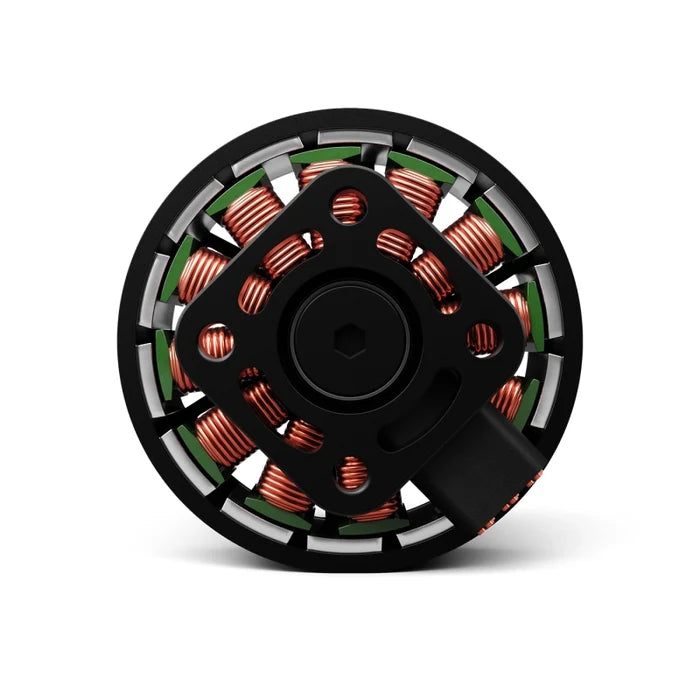

MAD XC3000 T2 Shadow brushless motor
MAD XC3000 T2 Shadow brushless motor
Product Overview:
The Shadow XC3000 T2 brushless motor is a high-end X-Class Drone Racing motor, designed for multi-rotor aircraft with a machining requirement of 800-1200mm. This motor can help you build the world's fastest, most durable, and most stable racing drones and high-speed photography drones. Weighing only 70g, the motor delivers a maximum thrust of 2.8kg and is also suitable for VTOL fixed-wing aircraft.
Motor Data |
|||
| Motor Model | MAD Shadow XC3000 T2 V1.0 | Motor Number of slots | 12N14P |
| Motor Size | D:35.7 × 40.55 mm | Rotor Balance | ≤5mg |
| Propeller Mounting Holes | D:12 M3×4 M5 Nut | Motor Balance | D:19 M3×4 |
| shaft Diameter | IN:5 mm | Cable Length | 380 mm 18# Awg(Black)silicone |
Main highlights:
MAXIMUM THRUST：2.8kgf
OPTIMIZED WEIGHT：70g
Applicable models:
Multi-rotor UAV
time travel drone
Recommended accessories:
–ESC:
– Propellers: 8x4.5x3, 7x4.5x3, 9x5x3, 10x4.5, 7035x3
Selection and Installation Considerations:
• The propeller size and pitch should be matched to your aircraft configuration—an incorrect propeller can reduce efficiency or cause motor/ESC overload.
• Use an appropriately sized ESC and ensure the wiring harness can withstand continuous and peak motor current.
Ensure structural supports and connections can withstand torque and dynamic loads.
Perform a balance check and routine inspection before each manned flight.
Local aviation and manned flight regulations must be followed.
Frequently Asked Questions:
Q: Which propeller should I use?
A: – Propellers: 8x4.5x3, 7x4.5x3, 9x5x3, 10x4.5, 7035x3
Q: Which ESC is compatible?
A: Please use the model provided by the manufacturer: – ESC:
Q: What is the delivery time?
A: Delivery time is usually 7-14 days, but please confirm the current inventory and delivery time at checkout.
650KV:
920KV:
1200KV:
