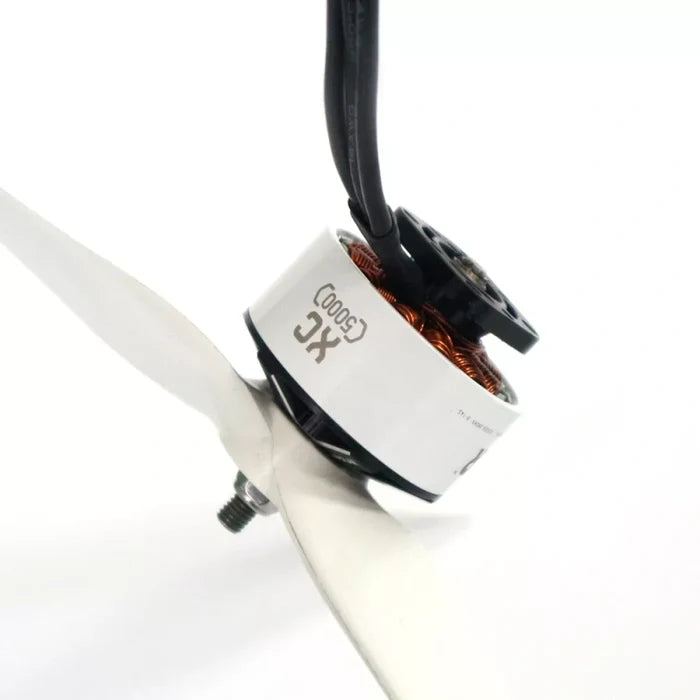

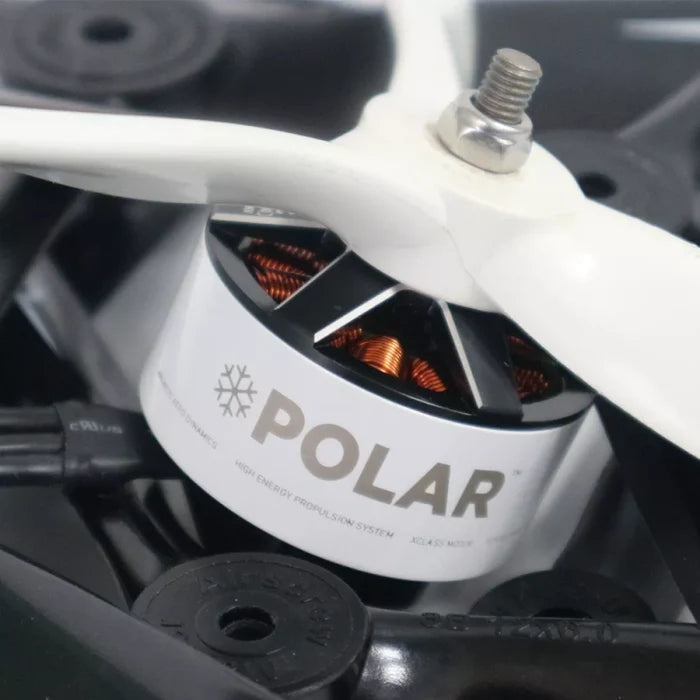

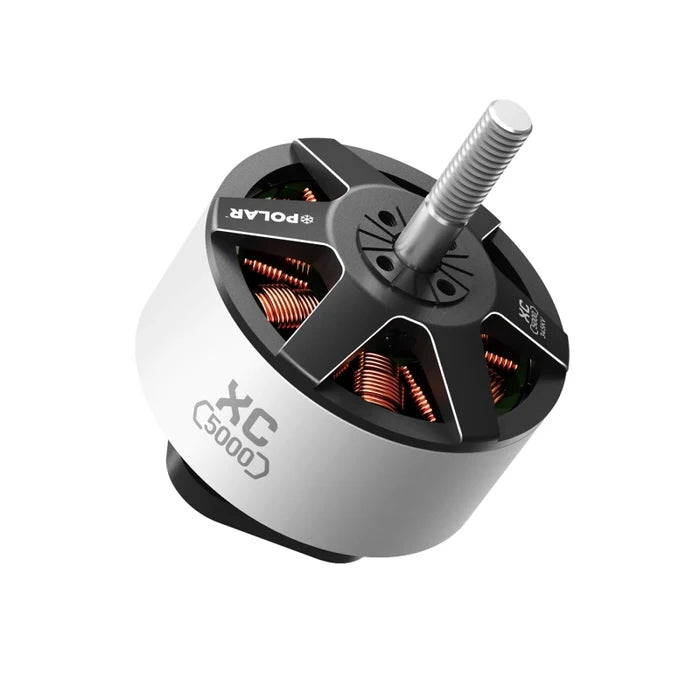

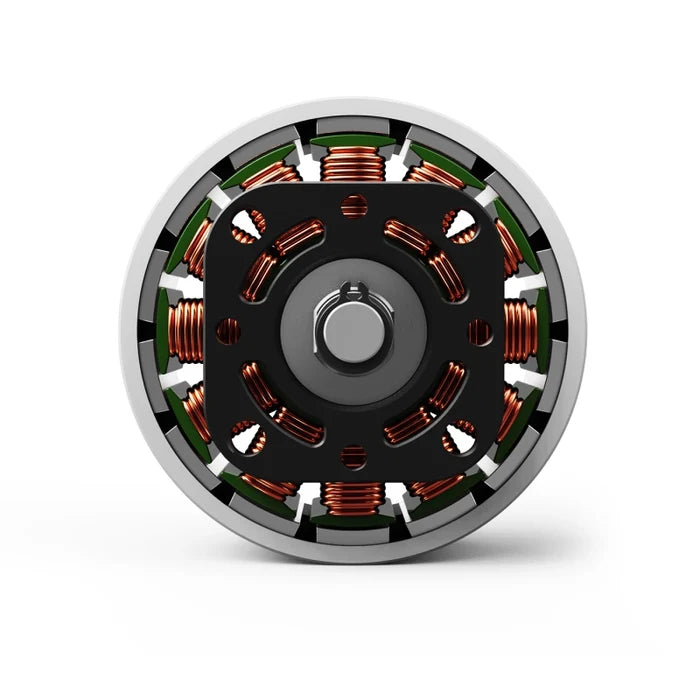

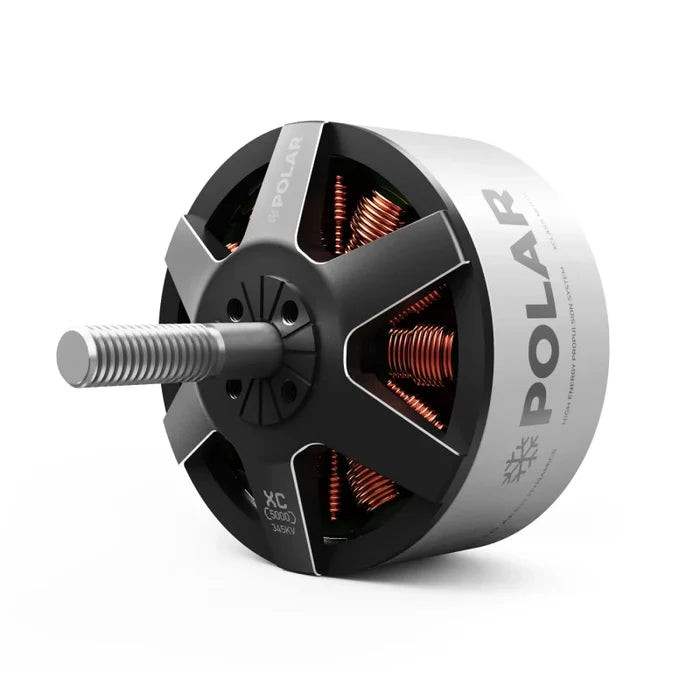

MAD XC5000 POLAR Brushless Motor
MAD XC5000 POLAR Brushless Motor
Product Overview:
The XC5500 and XC5000 motors are designed for the fastest high-end X-class drones, i.e., 800-1200mm multi-rotor aircraft, VTOL aircraft, and agricultural copters (2-3kg load per rotor).
1. Weights 324g with 3 durable bearings.
2. Maximum thrust 6.1kg.
Motor Data |
|||
| Motor Model | MAD Polar XC5000 V1.0 | Number of pole pairs | 7 |
| Stator | Anticorrosive | Varnished wire Degree | 180°C |
| Motor Size | D:50 × 67.9 mm | Motor Balance | 150°C |
| Degree of Protection | Rain protection | Cable Length | 750 mm 14# Awg(Black) silicone |
| Centrifugal Heat Dissipation | Independent | Rotor Balance | ≤5 mg |
| Propeller Mounting Holes | D:12 M3×4 / M6 Nut | Motor Balance | ≤10 mg |
| Shaft Diameter | IN: 6 mm | Motor Mounting Holes | D:25 M3×4, D:30 M4×4 |
| Bearing | 686ZZ *2 / 696ZZ | Disruptive test | 500 V |
Key Highlights:
Sustained thrust: 2.0-3.0kg
Max thrust: 6.2kg
Weight: 316g
Applicable Models:
• Multi-rotor drones
• VTOL drones
• Agricultural drones
Recommended Accessories:
– ESC: MAD BLHELI 32 100A (6-12S)
– Propellers: APC 16x8, APC 13x6.5, MAS 13x12x3, MAS 12x8x3
Selection and Installation Considerations:
• The propeller size and pitch should match your aircraft configuration—an incorrect propeller can reduce efficiency or cause motor/ESC overload.
• Use an appropriately sized ESC and ensure the wiring harness can withstand continuous and peak motor current.
Ensure structural supports and couplings can withstand torque and dynamic loads.
Perform a balance check and routine inspection before each manned flight.
Local aviation and manned flight regulations must be followed.
Frequently Asked Questions:
Q: Which propeller should I use?
A: – Propellers: APC 16x8, APC 13x6.5, MAS 13x12x3, MAS 12x8x3
Q: Which ESC is compatible?
A: Please use the model provided by the manufacturer: – ESC: MAD BLHELI 32 100A (6-12S)
Q: What is the delivery time?
A: Delivery time is usually 7-14 days, but please confirm the current inventory and delivery time at checkout.

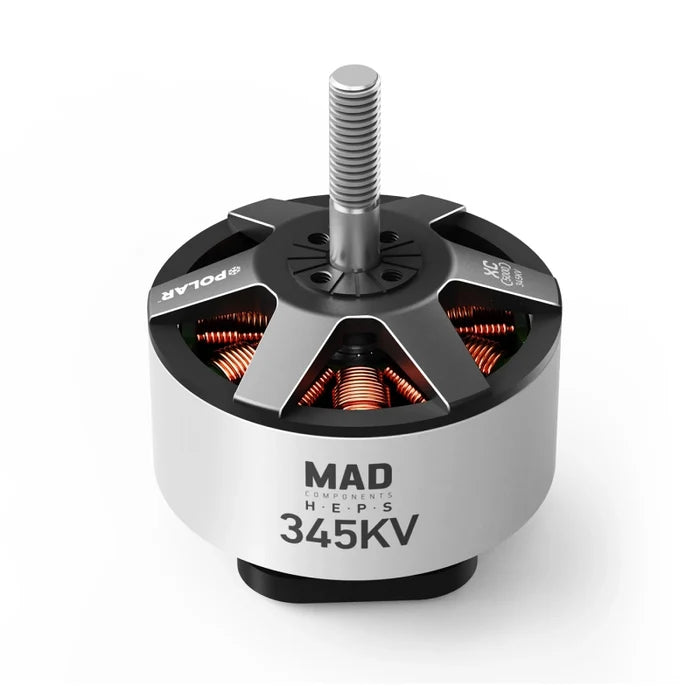

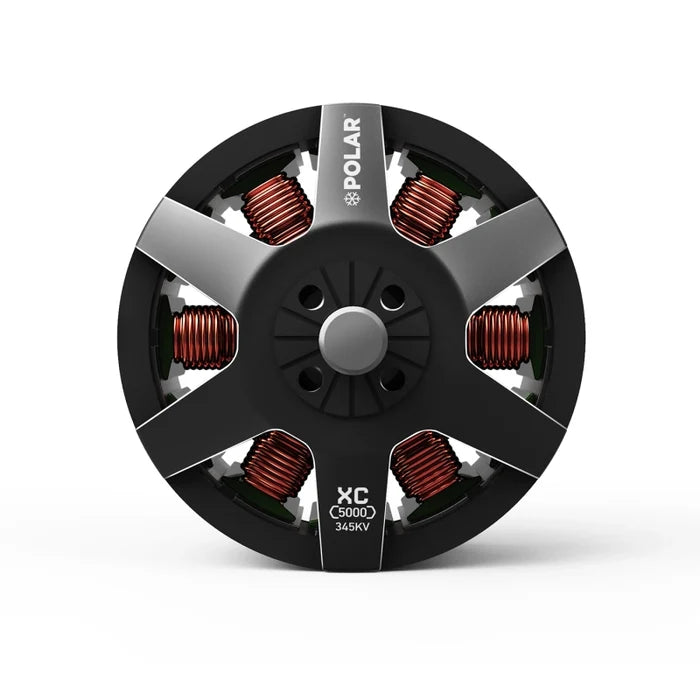

345KV:
380KV：
