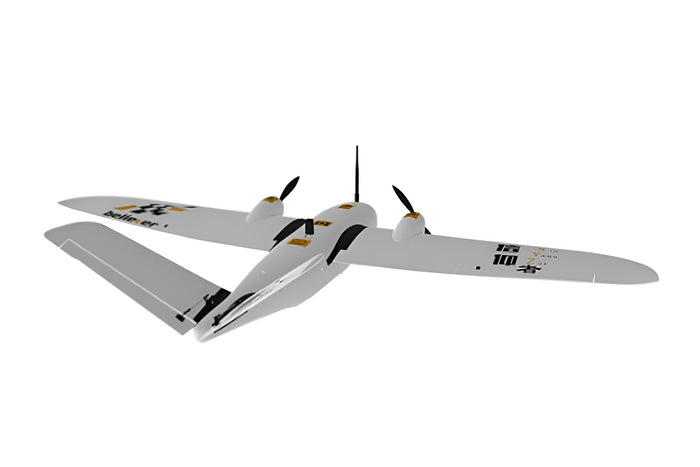

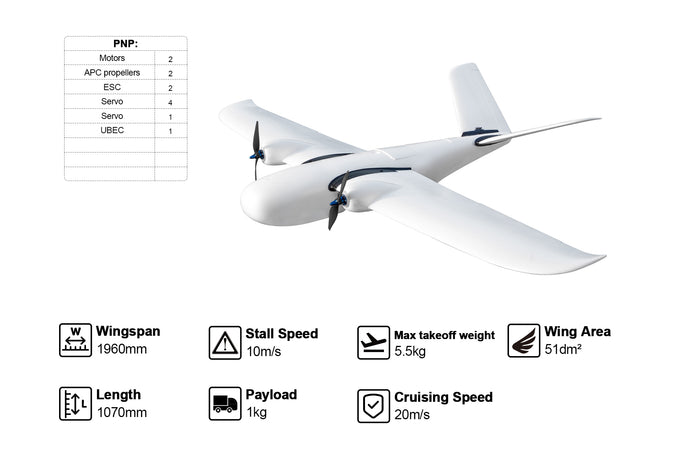

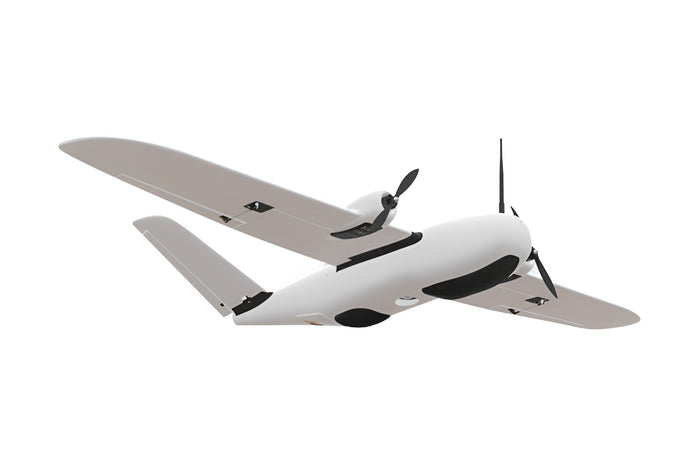

Makeflyeasy Believer 1960mm UAV Fixed Wing Drones
Makeflyeasy Believer 1960mm UAV Fixed Wing Drones
Frequently Asked Questions (FAQ)
Q: What is the difference between KIT, PNP, and RTF versions? How should I choose?
A: The KIT version includes only the airframe shell and does not contain the required electronic accessories, meaning it is an empty airframe. All electronic accessories need to be purchased separately. The PNP version includes the airframe with motors, ESCs, servos, and propeller accessories (landing gear, etc., if applicable) but requires self-assembly. Once assembled, it is ready to fly. The RTF version means "Ready-To-Fly," indicating 99% completion. All necessary accessories for the aircraft are fully equipped. After purchase, you only need to install the wings, ailerons, and tail to fly.
Q: What is the maximum endurance of this aircraft?
A: When equipped with a 6S 22000mAh Li-ion battery and with no payload, the maximum endurance can reach 150 minutes.
Q: What is its wind resistance level?
A: Thanks to its dual-engine power layout and optimized aerodynamic design, it has excellent stability and can resist level 5 wind (approximately 10m/s). In surveying and mapping missions, it can maintain an extremely high track overlap ratio.
Q: Is this aircraft convenient for transportation?
A: The Believer model features a quick-assembly/disassembly design. The wings are connected via carbon fiber tubes and secured with dedicated connectors, allowing them to be conveniently placed in the trunk of an ordinary private car or a dedicated protective trolley case.
Q: If the aircraft crashes, can spare parts be purchased?
A: Yes. You can contact our customer service. We supply individual replacement parts such as the nose, wings, tail, and canopy hatches on a long-term basis.
Q: Does it have rainproof performance?
A: The airframe is designed for operation in clear and cloudy weather. The EPO airframe material does not absorb water. However, flight in rainy conditions is not recommended to prevent short circuits in the electronic equipment.
NOTE:
1、”Power System" means only power parts, not the aircraft fuselage
2、If you are failed to place order directly from our web shop, pls contact our sales team to get support.
Download
User Manual
Test Data:
| 4S Test Power Configuration | 6S Test Power Configuration | ||
| Species | Model | Model | Quantity |
| Motor | Sunnysky 2814 KV900 | LDPOWER 2814 KV510 | 2 |
| ESC | Hobbywing X-Rotor 40A | Hobbywing X-Rotor 40A | 2 |
| Servo | MFE3054 | Emax ES3154 | 4 |
| Propeller | APC1145 CW&CCW | APC1145 CW&CCW | 1 Pair |
| Battery | 4S 20000mAh | 6S 16000mAh | 1 |
| Max. Pull | About 4.5kg | About 4.5kg | |
| Load Weight | a6000(440g) | a7r(670g) | 1 |
| Take-off Weight | About 4.2kg(included load 440g) | About 4.5kg(included load 670g) | |
| Endurance | About 80km | About 90km | |
| Test Conditions | Altitude: 470m Wind Speed: Level 3 | ||
Note:
Production lead time: 7-15 working days (ask customer service about production schedule before ordering
The shipping time is expected to be another 7-14 days
Prices and freight are for reference only, no stock, orders need to wait for production time.
Made-to-order products: Once a customer submits an order, the product will immediately go into production. Given its customized nature and the immediacy of production, such orders become binding upon confirmation and no refunds will be accepted.
