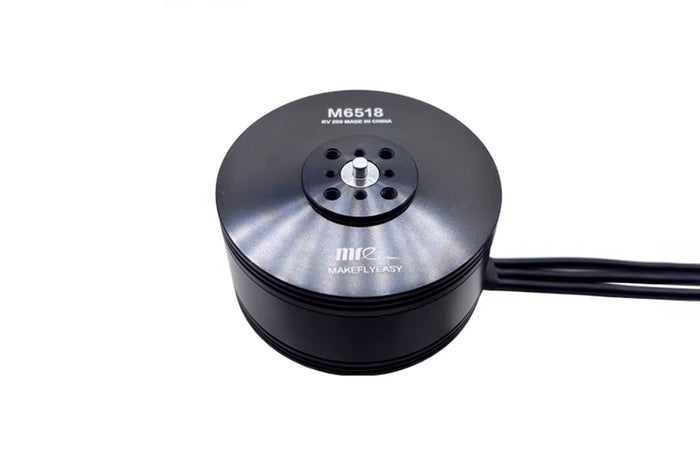

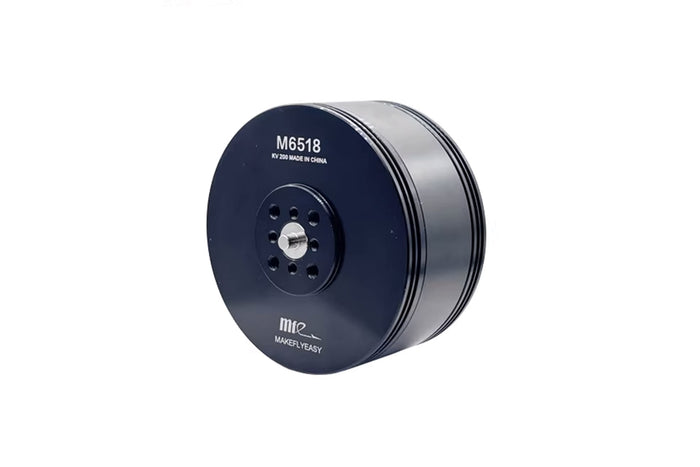

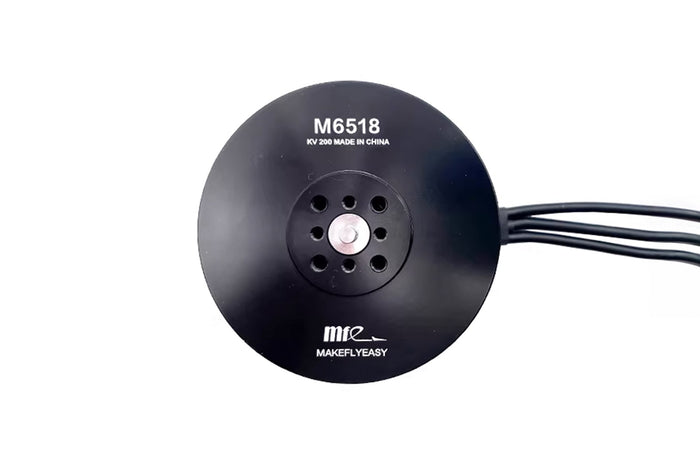

Makeflyeasy Pioneer VTOL Rotary Wing Motor 6518 KV200
$92.95
Sale price
$92.95
Regular price
$143.00
Skip to product information
Makeflyeasy Pioneer VTOL Rotary Wing Motor 6518 KV200
$92.95
Sale price
$92.95
Regular price
$143.00
The MFE 6518 KV200 motor, when used with 2278 carbon fiber propellers and powered by a 12S lithium polymer battery, achieves a maximum thrust of 14700g per axis. Each motor weighs 423g, has an IP35 protection rating, and features a built-in "fan" design to accelerate heat dissipation and improve energy conversion efficiency.
Basic Parameters
| Item | Specification | Item | Specification |
| Motor Model | 6518KV200 | Wire Length | 100mm |
| Slot/Pole Config | 24N28P | Centrifugal Cooling | YES |
| Stator Core | Imported material / Anti-rust surface | Dynamic Balance | $\le 5$ mg |
| Motor Dimensions | $72.8 \times 42.4$ mm | Insulation Test | 500V AC |
| Enameled Wire | High temp resistance (180°C) | Propeller Mount | $M4 \times 16 \times 4$ |
| Magnet Grade | High temp resistance (180°C) | Motor Mount | $M4 \times 8 \times 4$ |
| Protection Rating | IP35 |
| Item | Specification | Item | Specification |
| KV Value | 200 | Max Power | 4195W |
| Rated Voltage | 12S (LiPo) | Max Thrust | 14700g |
| No-load Current | 2.4A / 20V | Max Torque | $3.74$ N·m |
| Internal Resistance | $24$ m$\Omega$ | Recommended ESC | 100A High Voltage |
| Motor Weight | 423g | Recommended Prop | 2278 Carbon Fiber |
| Max Current | 87A |
| Model (型号) | Test Propeller (测试桨) | Voltage (V) (电压) | Current (A)* (电流) | Thrust (g) (拉力) | Power (W) (功率) | Efficiency (g/W) (力效) |
| 6518 KV200 | Carbon Fiber 2278 | 48 | 2.4 | 1025 | 115.2 | 8.90 |
| 48 | 3.3 | 1291 | 158.4 | 8.15 | ||
| 48 | 4.5 | 1610 | 216.0 | 7.45 | ||
| 48 | 5.2 | 1794 | 249.6 | 7.19 | ||
| 48 | 6.8 | 2219 | 326.4 | 6.80 | ||
| 48 | 12.1 | 3588 | 580.8 | 6.18 | ||
| 48 | 14.6 | 4225 | 700.8 | 6.03 | ||
| 48 | 19.6 | 5380 | 940.8 | 5.72 | ||
| 48 | 23.2 | 6105 | 1113.6 | 5.48 | ||
| 48 | 28.0 | 7050 | 1344.0 | 5.25 | ||
| 48 | 32.7 | 7755 | 1569.6 | 4.94 | ||
| 48 | 38.9 | 8763 | 1867.2 | 4.69 | ||
| 48 | 46.6 | 10250 | 2236.8 | 4.58 | ||
| 48 | 52.1 | 11175 | 2500.8 | 4.47 | ||
| 48 | 62.9 | 12512 | 3019.2 | 4.14 | ||
| 48 | 75.7 | 13748 | 3633.6 | 3.78 | ||
| 48 | 87.4 | 14737 | 4195.2 | 3.51 |
