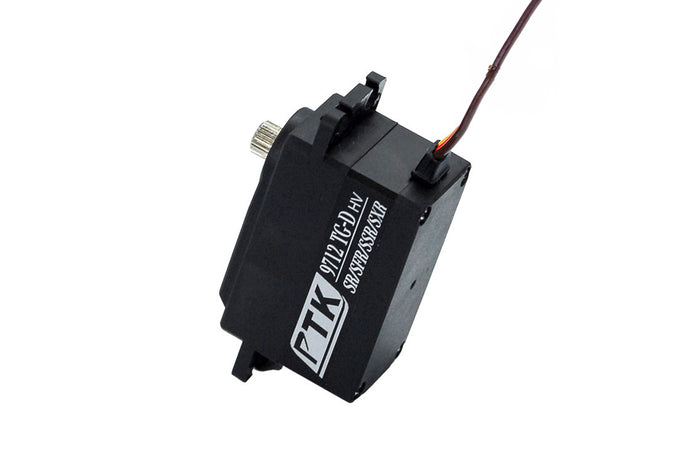

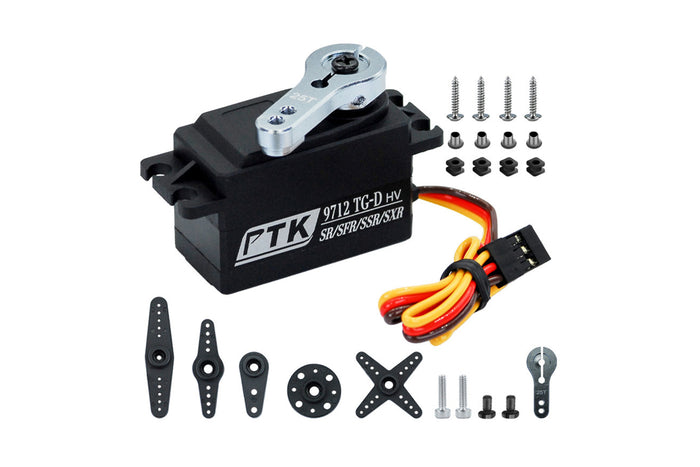

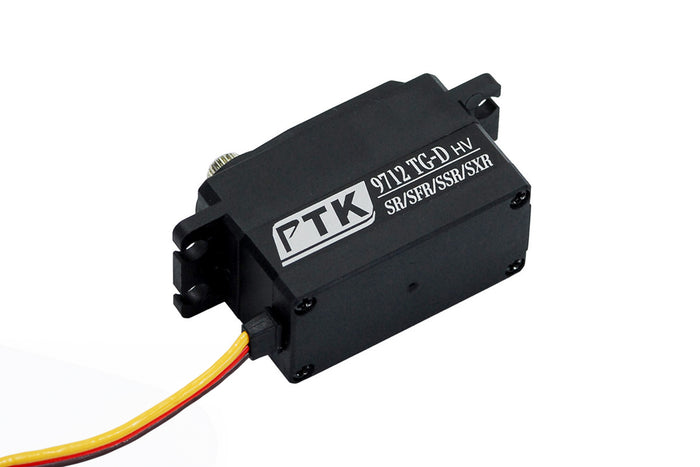

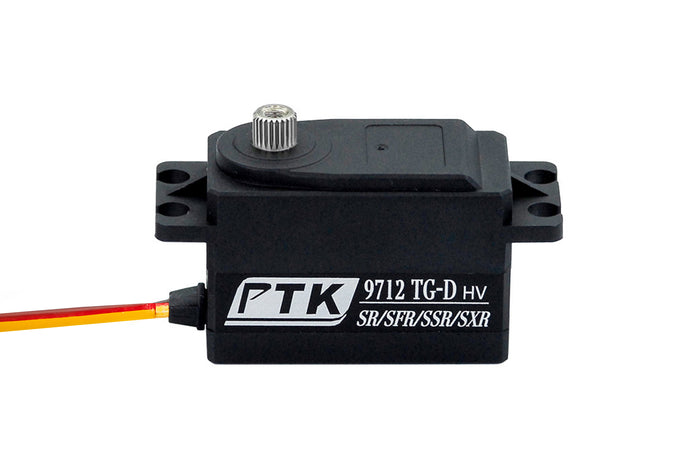

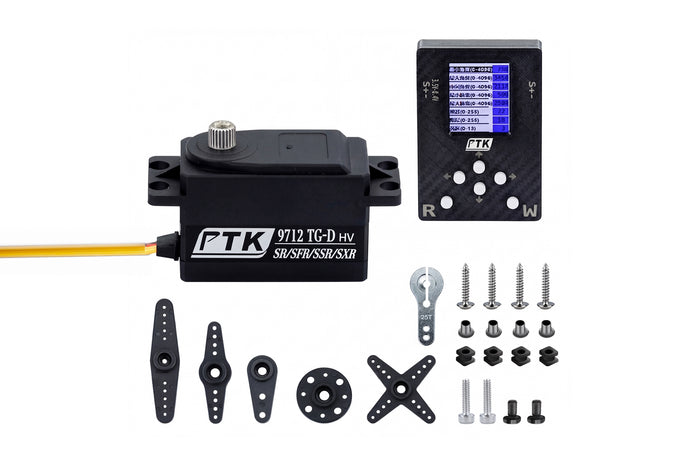

PTK 9712 TG-D Metal Digital Servo

Specifications

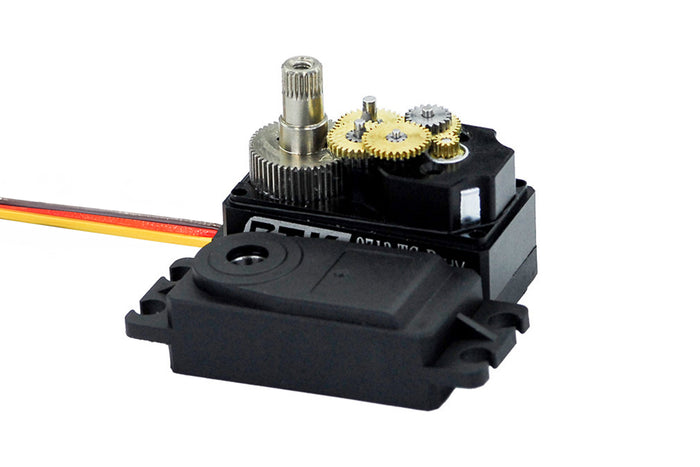

Gear Material: Stainless Steel
Case Material: CNC Aluminum
Operating Temperature: -15°C ~ +70°C
Angle Range: 180° ± 10°

Refresh Rate: 333Hz
Weight: 48.8 g
Pulse Width PWM: 700 to 2300 µSec
FCB Type: Digital

Dead Band: 2 µs
Neutral Position: 1520 µs
Dimensions: 40.4 × 20 × 27.9 mm
Bearing: Ball Bearing

Operating Voltage: 5.0V ~ 8.4V
Wire Length: JR 300 mm
Operating Current: 7.4V / 100 mA
Motor Type: Coreless Motor

Operating Speed

• 0.096 sec/60° @ 5.0V
• 0.085 sec/60° @ 6.0V
• 0.070 sec/60° @ 7.4V
• 0.068 sec/60° @ 8.4V

Stall Torque

• 10 kg·cm @ 5.0V
• 13 kg·cm @ 6.0V
• 18 kg·cm @ 7.4V
• 25 kg·cm @ 8.4V
