SKYRC B6neo⁺ Dual-Input Smart Charger
240W / 126W Dual Input
DC 240W · PD 126W Fast Charge
XT60 + USB-C PD3.1
Dual Input Modes, Charging Freedom
Reverse Charging
Power your phone / laptop from battery
Ultra Lightweight
Only 82g · 70×50×31mm

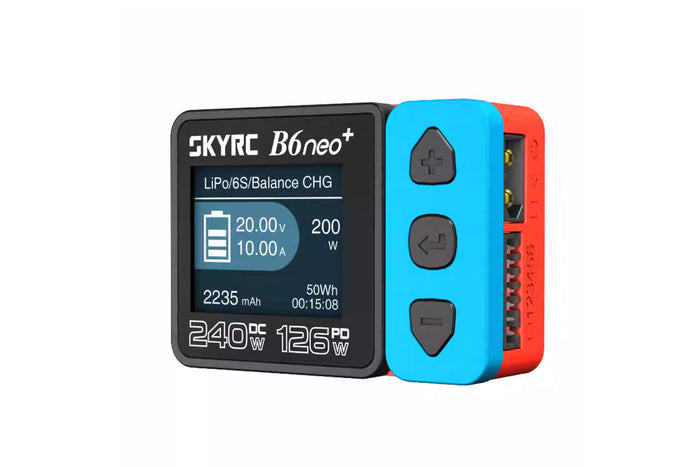

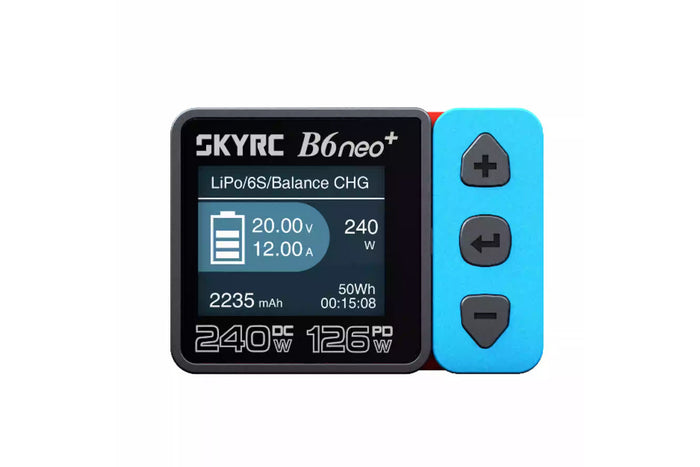

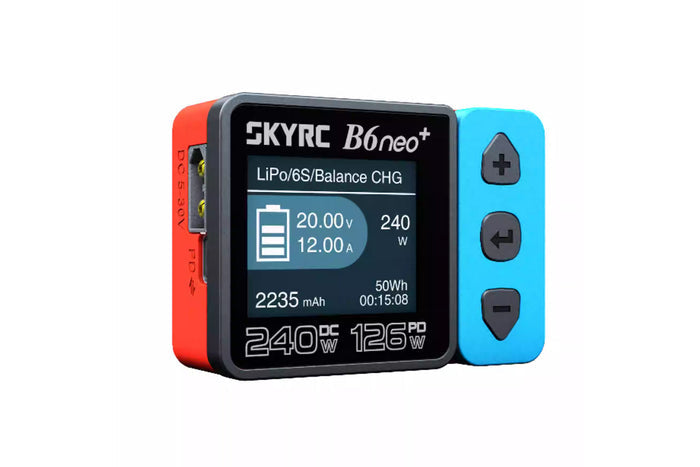

SKYRC B6neo+ is a new‑generation dual‑input smart charger designed for drone and RC model enthusiasts. With an ultra‑compact body (just 70×50×31mm) and weighing only 82g, it delivers impressive performance.
It is powered by an ARM Cortex‑M4 chip and features a 1.77‑inch LCD high‑definition screen (128×160 pixels). It supports DC (XT60) and USB‑C PD3.1 dual‑input modes, giving you true charging freedom. The dual‑color body design (available in vibrant red‑blue, black, and other options) adds a stylish look.
More than a charger: The B6neo+ also works as a digital adjustable power supply (5‑27V / 1‑15A output). When used with the balance port, discharge efficiency is greatly improved. It features a smart temperature‑controlled fan and multiple circuit protections, and supports data management via ChargerMaster PC software. The exclusive PD reverse charging function lets you turn your drone battery into an emergency power bank for phones and laptops.
240W DC / 126W PD Charging XT60 + USB‑C PD3.1 Dual Input Reverse Charging (Battery → USB‑C) Adjustable PSU 5–27V / 15A 1.77" LCD HD Screen Only 82g · Ultra‑Portable
Note: The B6neo+ is a DC / PD input model. The package does NOT include an AC power adapter – you will need to purchase one separately (we recommend a 24V / 6A or higher DC supply, or a 100W+ PD charger). Please read the manual carefully before first use, ensure correct battery type and charging parameters, and operate in a well‑ventilated area.
Product Specifications
| Specification | Details |
| DC Input Charging Power | 240W (XT60 connector) |
| PD Input Charging Power | 126W (PD 3.1 protocol) |
| Charging Current Range | 0.3A – 10.0A |
| Max Balance Current | 600mA |
| Max Discharge Current | 0.6A (with balance port, discharge power up to 16W) |
| Supported Battery Types & Cells | LiPo/LiHV/LiFe/LiIon (1‑6S); NiMH/NiCd (2‑15S); Pb (3S/6S/12S) |
| DC Input Voltage | 5.0V – 30.0V |
| PD Input Voltage | 5.0V – 28.0V (PD3.1) |
| Power Supply Mode Output | 5.0 – 27.0V / 1.0 – 15.0A |
| Display | 1.77‑inch TN LCD (128×160 pixels) |
| Dimensions (L×W×H) | 70 × 50 × 31 mm |
| Weight | 82g |
| PC Software Support | SKYRC ChargerMaster |
| Special Features | Reverse charging (battery to USB‑C devices), smart temperature‑controlled fan, multi‑language interface |
Frequently Asked Questions

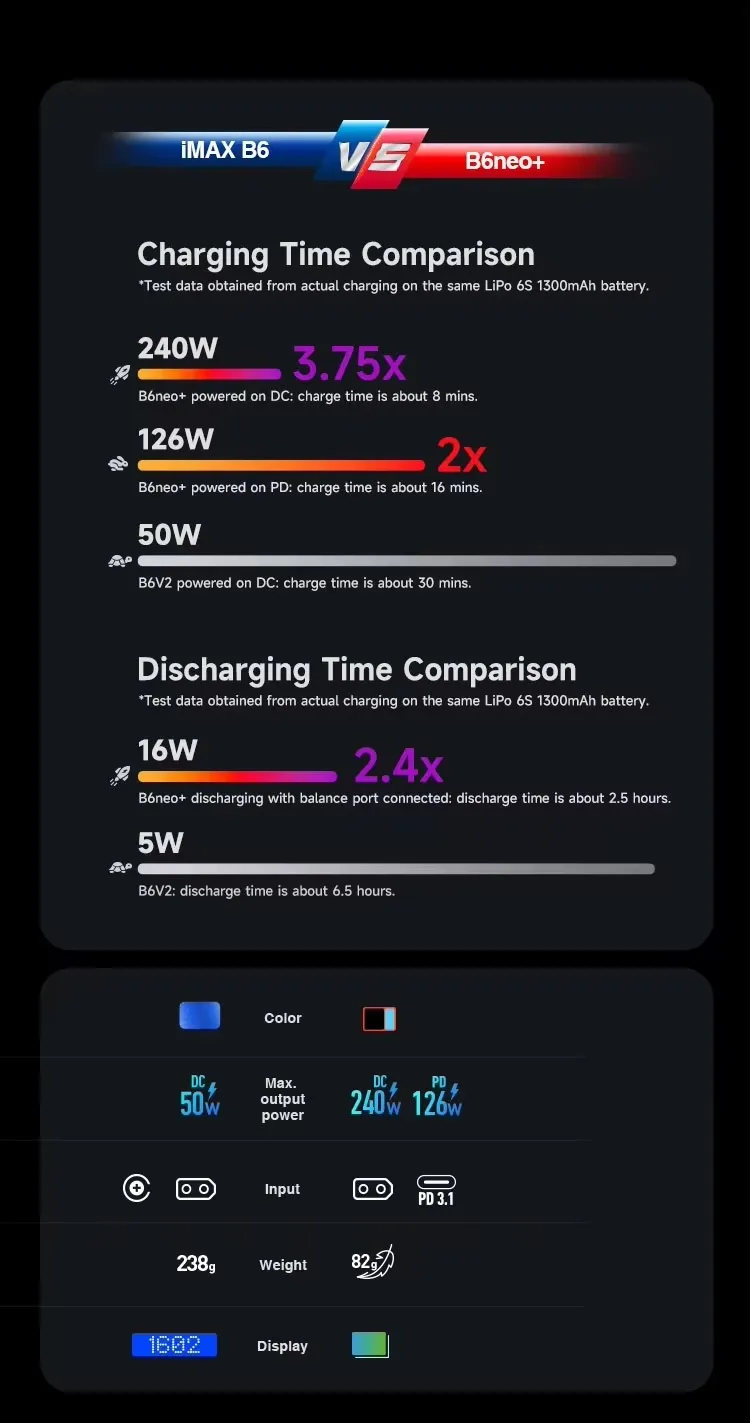

Q1: How fast does the B6neo+ charge a 6S 1300mAh drone battery?
Based on official test data (6S 1300mAh LiPo):
With DC (XT60) input (240W): charging takes about 8 minutes.
With USB‑C PD input (126W): charging takes about 15 minutes.
This speed gives a huge advantage in field fast‑charging scenarios, significantly reducing pilot downtime.
With DC (XT60) input (240W): charging takes about 8 minutes.
With USB‑C PD input (126W): charging takes about 15 minutes.
This speed gives a huge advantage in field fast‑charging scenarios, significantly reducing pilot downtime.

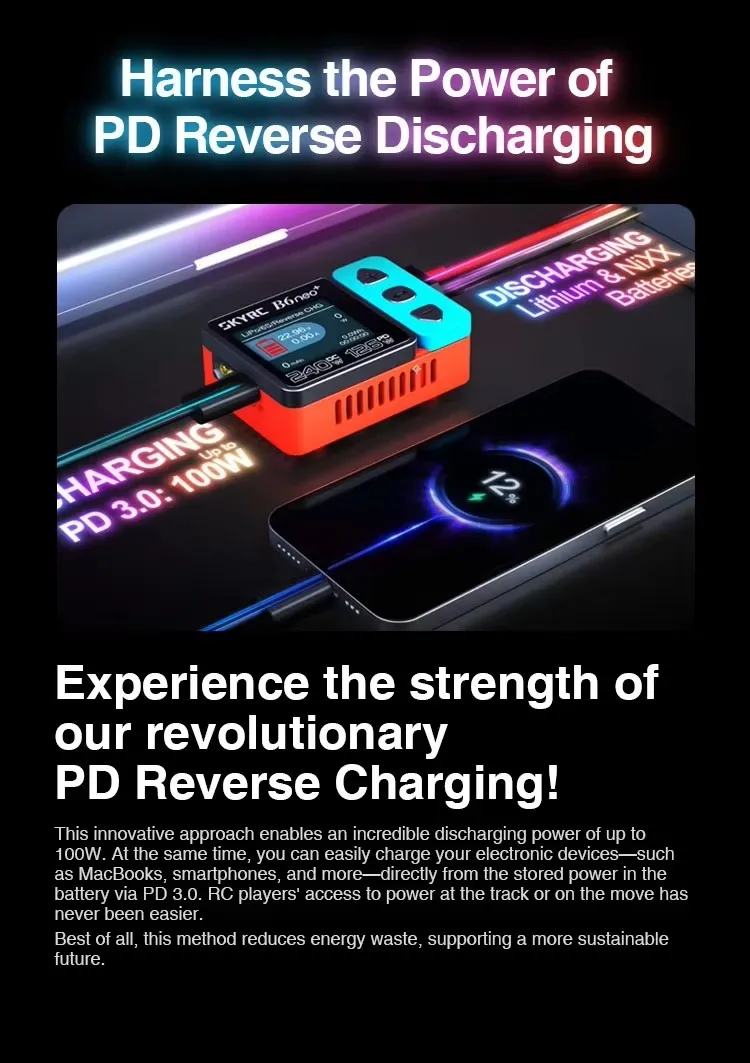

Q2: How does the "reverse charging" feature work in practice?
After flying, when you have no wall outlet nearby but your phone or laptop is running low, connect the charger to your flight battery (e.g., a 6S LiPo). The charger's USB‑C port can then deliver emergency power (up to 100W) to PD‑compatible devices like phones and MacBooks. This is extremely convenient for outdoor FPV pilots, and retailers can highlight it as a key selling point.
Q3: Why does the B6neo+ need the balance lead for discharging? How efficient is it?
When discharging via the balance port, the B6neo+ dissipates energy internally, reaching a discharge power of 16W. For a 6S 1300mAh battery, a storage discharge takes about 2.5 hours. Though not as fast as charging, this is 3.2 times more efficient than the older B6V2 (5W, 6.5 hours), greatly reducing waiting time.
Q4: As a business / bulk user, can the B6neo+ charge 1S small batteries (e.g., for whoops)?
Yes. SkyRC offers the OSH 6‑channel 1S LiPo charging board (PH2.0 / BT2.0 connectors). Paired with the B6neo+, it can charge up to 6 micro 1S LiPo batteries simultaneously – ideal for drone clubs, training centers, or small whoop manufacturers for batch maintenance.
Q5: What DC supply or PD charger should I use to get full performance from the B6neo+?
For DC input: we recommend a power adapter with 24V / 6A (≈144W) or higher (like the official 24V 6A supply) to reach the 240W maximum. Input voltage range is 5‑30V.
For PD input: use a PD3.1‑compatible, 100W+ GaN charger (e.g., a MacBook 140W charger) to achieve the full 126W PD charging speed.
For PD input: use a PD3.1‑compatible, 100W+ GaN charger (e.g., a MacBook 140W charger) to achieve the full 126W PD charging speed.
Q6: Can the B6neo+ check battery health?
Absolutely. Plug the balance lead into the balance port, and the screen will clearly display each cell's individual voltage (with mV precision), total voltage (Σ), and maximum voltage difference (△). You can use the voltage difference to determine if a battery is aging or needs a "balance charge" – crucial for flight safety.
Q7: Does the unit get hot or loud during high‑power charging?
The B6neo+ features a smart temperature‑controlled fan that adjusts speed automatically based on internal temperature. At full 240W load, the cooling system effectively manages heat, and noise stays within reasonable levels – better than many bulkier chargers of similar power. At typical currents below 5A, the fan is nearly silent.
Q8: What safety protections does the B6neo+ offer?
It comes with comprehensive protections: short‑circuit, over‑load, reverse‑polarity (won't burn out if connected backwards), over‑temperature, over‑voltage, capacity limit, and charge timeout protection. The V0‑grade flame‑retardant shell ensures safety whether used by individual pilots or in bulk charging setups.
Package Contents
SKYRC B6neo⁺ Charger Main Unit × 1 DC Power Adapter × 1 (depending on bundle) User Manual × 1
Note: The inclusion of the power adapter depends on the specific bundle purchased.
