SKYRC IMAX B6 V2 Balance Charger
B6 V2 Charger (Standard)
$21.12
Sale price
$21.12
Regular price
$32.00
Skip to product information
< data-path-to-node="3">
< data-path-to-node="6">
< data-path-to-node="9">
SKYRC IMAX B6 V2 Balance Charger
$21.12
Sale price
$21.12
Regular price
$32.00

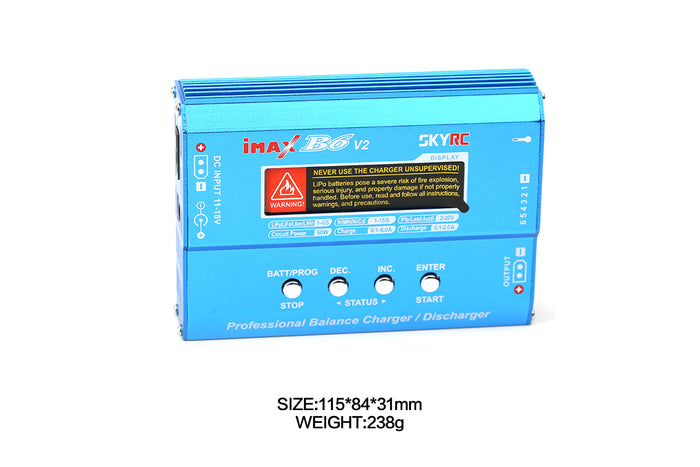

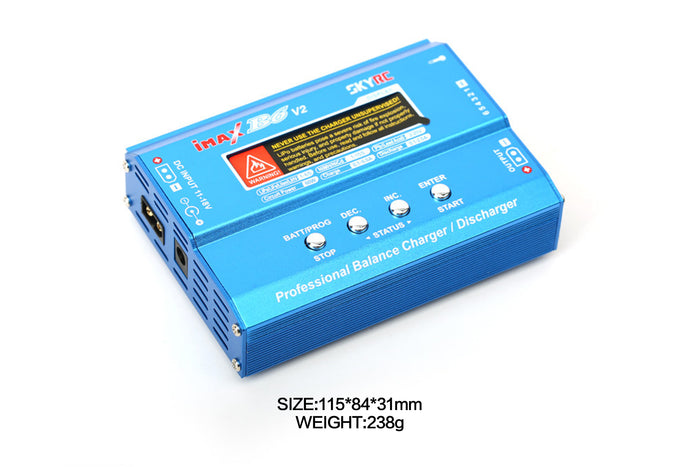

Physical & Display Specifications
| Parameter | Description / Value |
| Case Material | Aluminium |
| Case Size | $115 \times 84 \times 31\text{ mm}$ |
| Weight | 238g |
| Display Type | LCD with Blue Backlight |
⚡ Power & Wattage
| Parameter | Value |
| DC Input | 11-18V |
| Charge Wattage | 60W |
| DC Output Wattage | 60W |
| Discharge Wattage | 5W |
🔋 Battery Compatibility & Capacity
| Battery Type | Supported Cell Count / Voltage | Capacity Range |
| LiPo / LiHV / LiFe / Li-Ion | 1-6 cells | 100-50,000mAh |
| NiMH / NiCd | 1-15 cells | 100-50,000mAh |
| Pb (Lead-Acid) | 2-20V | 100-50,000mAh |
| DJI Mavic | 3 cells (LiHV) | 100-50,000mAh |
| DJI Inspire | 4 cells (LiHV) | 100-50,000mAh |
🔄 Charging & Operational Parameters
| Parameter | Specification |
| Charge Current (Standard) | 0.1-6A (for NiMH, NiCd, LiPo, LiHV, LiFe, Li-Ion, Pb) |
| Charge Current (DJI) | Max 4A (for DJI Mavic / Inspire) |
| Discharge Current | 0.1-2A |
| Balance Cells | 2-6 cells |
| Balance Current | 300mA / cell |
| Safety Timer | 1-120 minutes (or Off) |
| Memory Capacity | 10 different charge / discharge profiles |
