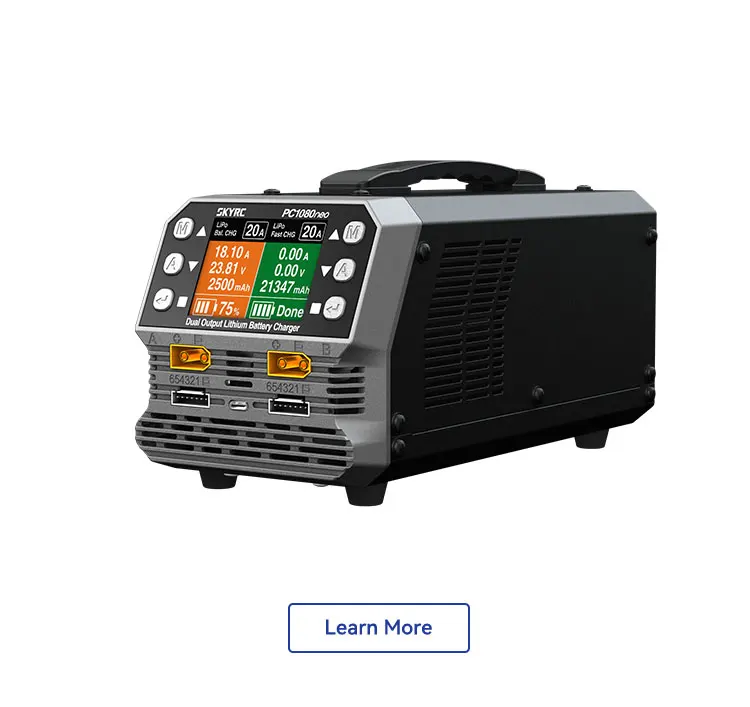

SKYRC PC1080neo Dual‑Channel Industrial LiPo Battery Charger

Dual‑Channel Independent

540W per channel, charge 2 batteries at once

Charge Up to 12 Batteries

With G630neo charging hub

20A High Current

1080W total power for fast charging

Multiple Protections

Over‑current, over‑voltage, over‑temp, reverse polarity

PC1080neo is an industrial‑grade dual‑channel LiPo battery charger from SKYRC, backed by 16 years of technical expertise and widely used in agriculture, forestry, public safety, surveying, and other drone applications. The new upgrade delivers 1080W total output (540W±10% per channel), up to 20A charge current and 1800mA balance current, with an energy conversion efficiency of 90%. Equipped with active PFC technology, it supports 100V–240V wide‑range AC input for global compatibility. The 2.8‑inch color display and three operating modes (Fast, Balance, Storage) support LiPo and LiHV (4.25V–4.50V adjustable) 6S batteries. Built‑in multiple safety protections and optional G630neo charging hub enable automatic sequential charging for up to 12 batteries, meeting high‑capacity, intensive field charging demands.

Dual‑channel independent output With G630neo hub – charge 12 batteries 20A max charge current Comprehensive protection system

Dual‑Channel Independent Output: PC1080neo supports two independent channels, charging two batteries simultaneously. Each channel delivers up to 20A and 540W, with a total power of 1080W, easily handling complex scenarios.

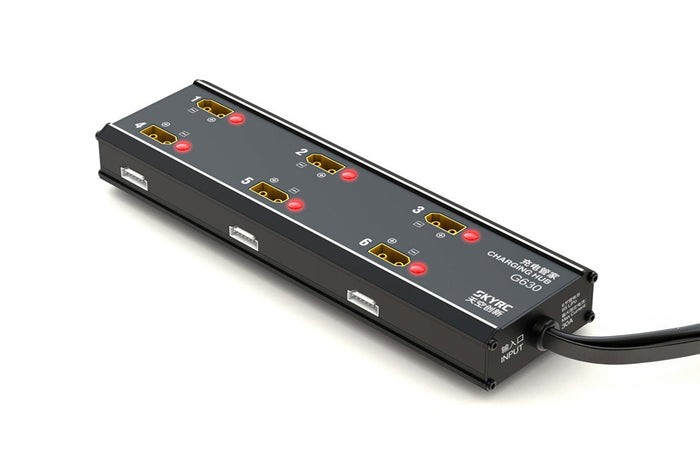

Charge 12 Batteries with G630neo Hub: Paired with the G630neo charging hub, each channel expands to 6 ports, supporting up to 12 LiPo batteries in total. The hub intelligently detects remaining capacity and charges from highest to lowest, automatically switching after each battery is full – no manual supervision required.

Multiple Protection System: Built‑in protections against short circuit, reverse polarity, over‑temperature, over‑capacity, over‑time, under‑voltage, and over‑voltage, plus a fire‑retardant casing, ensure safe and reliable charging.

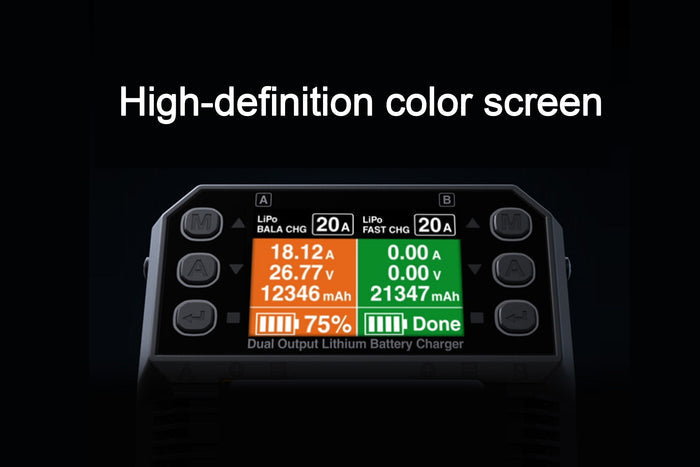

Vivid Display, Intuitive Control: A 2.8‑inch 320×240 color LCD with a 65° tilt angle offers clear, comfortable viewing. Select a mode, press start, and your charging session begins – simple and efficient, with full control at your fingertips.

Active PFC – Stable & Efficient: Active power factor correction automatically adjusts to AC input voltage, improving stability and reducing grid interference. The wide‑range input (100–240V) and 90% conversion efficiency deliver both performance and energy savings.

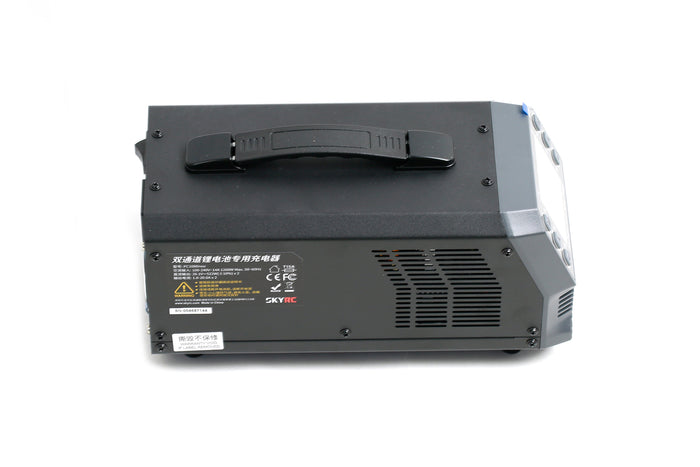

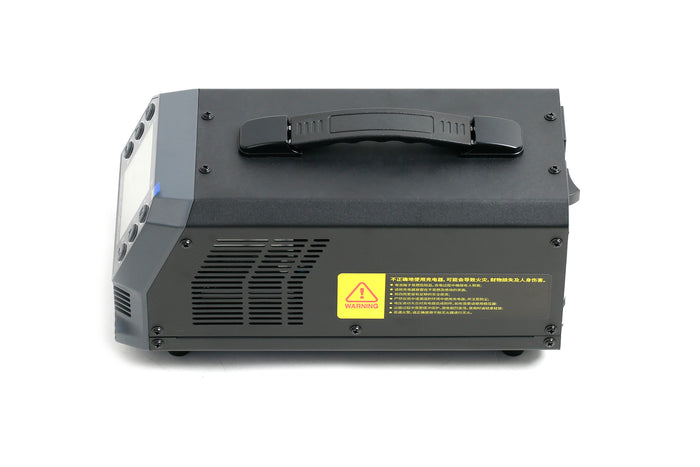

Robust Cooling & Portability: A carefully designed air intake combines industrial aesthetics with efficient heat dissipation. The carbon‑blade fan provides strong airflow and stable performance. A built‑in carrying handle makes it easy to transport for multi‑site operations.

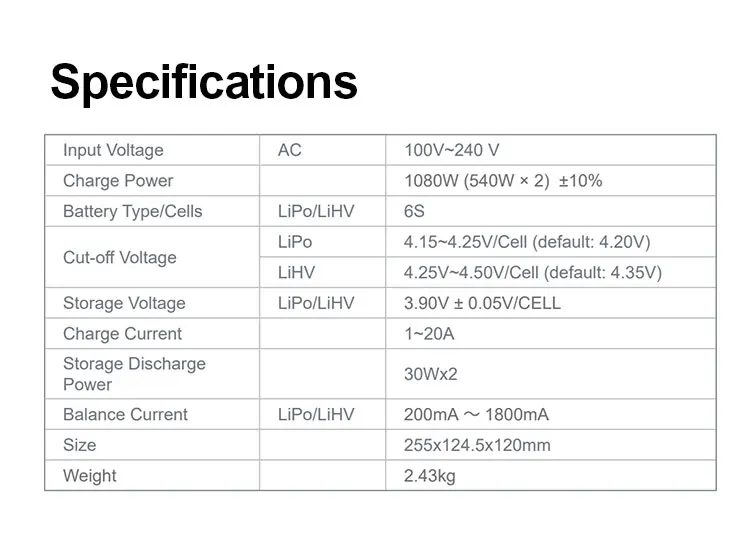

Product Specifications

Product Name	PC1080neo Dual‑Channel LiPo Battery Charger
Number of Channels	2
AC Input Voltage	100V~240V (wide range, active PFC)
Total Charging Power	1080W (540W±10% per channel)
Charge Current	0.1~20.0A (per channel)
Balance Current	200mA~1800mA (per channel)
Storage Discharge Power	30W×2 channels
Supported Battery Types	LiPo / LiHV (6S)
LiPo Cut‑off Voltage	4.15~4.25V/CELL (default 4.20V)
LiHV Cut‑off Voltage	4.25~4.50V/CELL (default 4.35V)
Storage Target Voltage	LiPo/LiHV 3.90V±0.05V/CELL
Display	2.8" 320×240 color LCD (65° tilt)
Operating Modes	Fast Charge, Balance Charge, Storage
Charging Hub Support	Yes (G630neo, expands to 6 ports per channel, up to 12 batteries)
Dimensions (L×W×H)	255×124.6×120mm
Weight	2.43kg
Safety Protections	Short circuit, reverse polarity, over‑temp, over‑capacity, over‑time, under‑voltage, over‑voltage; fire‑retardant casing

Frequently Asked Questions

Q1: How can I improve charging efficiency for large drone battery fleets?

Pair PC1080neo with the G630neo charging hub. Each channel expands to 6 ports, supporting up to 12 LiPo batteries in total. The hub intelligently scans each battery’s remaining capacity and charges from highest to lowest, automatically switching after each is full – perfect for agricultural, surveying, or any operation requiring rapid battery turnover.

Q2: Can the charger handle unstable grid voltage or generator power in the field?

Yes. Active PFC automatically corrects AC input fluctuations, supports 100‑240V wide range, and achieves 90% conversion efficiency while reducing harmonic interference. It performs reliably even with voltage swings or portable generators.

Q3: How does the charger handle both LiPo and LiHV drone batteries?

PC1080neo is compatible with both LiPo and LiHV. You can freely adjust the cut‑off voltage (LiPo 4.15–4.25V, LiHV 4.25–4.50V) in the settings. Always verify your battery supports the selected voltage to avoid over‑charging. The Storage mode automatically charges/discharges to 3.90V/CELL, prolonging battery life and preventing swelling or capacity loss from long‑term storage.

Q4: How can service technicians quickly assess battery health during maintenance?

The display shows real‑time per‑cell voltage, current, capacity (mAh), and percentage. In Balance mode, accuracy reaches ±10mV/Cell, making it easy to spot cell voltage discrepancies. If a cell shows abnormal voltage or prolonged balancing, it can be flagged for replacement, reducing flight risks.

Q5: Which languages does the charger support? Is it easy for overseas users?

SKYRC products serve over 100 countries. The charger includes multiple languages covering major language families. Users can switch language in the settings, ensuring a consistent and user‑friendly experience for international customers.

Q6: Can I charge different battery chemistries or cell counts on the two channels?

The two channels are independent, each with its own control interface. In theory, you can connect different battery types or cell counts, but we recommend double‑checking parameters for each battery. The charger is primarily optimised for 6S LiPo/LiHV packs.

Q7: The screen doesn’t light up or the charger won’t start – what should I do?

Follow these steps:
1. Ensure the power cord is properly connected and the wall outlet has power.
2. Check that the rear power switch is set to “ON”.
3. Confirm AC input is within 100‑240V.
4. In field operations, extension reels may cause voltage drop – inspect the socket for poor contact or excessive load.

Q8: What do the error messages mean?

If an error appears, disconnect the battery, check all connections, and retry. Common errors include over‑voltage, reverse polarity, low cell voltage, high cell voltage, output short, capacity limit reached, or safety timer expiry. Refer to the manual for detailed codes.

Q9: The charger isn’t charging – is it broken?

Not necessarily. Common reversible causes include:
1. Poor contact (oxidised pins, dirt, loose plugs).
2. Battery protection triggered (over‑discharge, over‑temperature).
3. Ambient temperature outside safe range (below 5°C or above 40°C).
4. Insufficient power supply capacity.
Check these first before assuming a hardware failure.

Q10: How well does PC1080neo dissipate heat in hot field environments?

The charger features an optimised air intake design and a carbon‑blade fan for strong airflow and stable performance. However, in summer field conditions, place the charger in a shaded, well‑ventilated area, avoid direct sunlight, and regularly clean the intake/exhaust grilles.

Q11: Where should I place the charger and batteries during charging?

Always place the charger and batteries on a fire‑proof, non‑conductive surface. Never charge on car seats or other flammable materials. Avoid rain, moisture, or wet conditions.

Q12: What is the warranty policy for PC1080neo?

SKYRC offers a one‑year warranty from the date of purchase covering manufacturer defects. It does not cover misuse, abuse, or operation beyond specified limits.

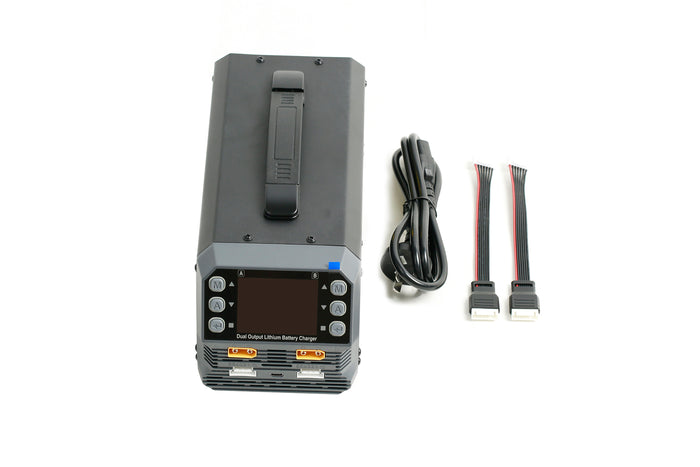

What's in the Box

PC1080neo Dual‑Channel Charger ×1 AC Power Cord ×1 Charging / Balance Cables (6S LiPo/LiHV) ×2 sets Multi‑language User Manual ×1

Note: G630neo charging hub is an optional accessory and sold separately.
