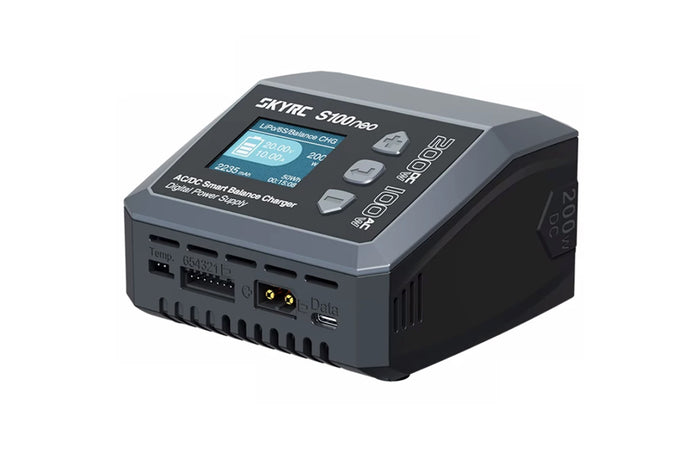

SkyRC S100neo Smart Balance Charger

AC/DC Dual Input

AC 100W / DC 200W Flexible Power


12A High Current Fast Charge

2.5x faster than e680, 6S 1300mAh in just 10 min


1000mA Ultimate Balance

Far beyond e680's 300mA, perfect harmony for each cell


All-in-One Multifunction

Adjustable PSU, motor run‑in, battery checker, and more

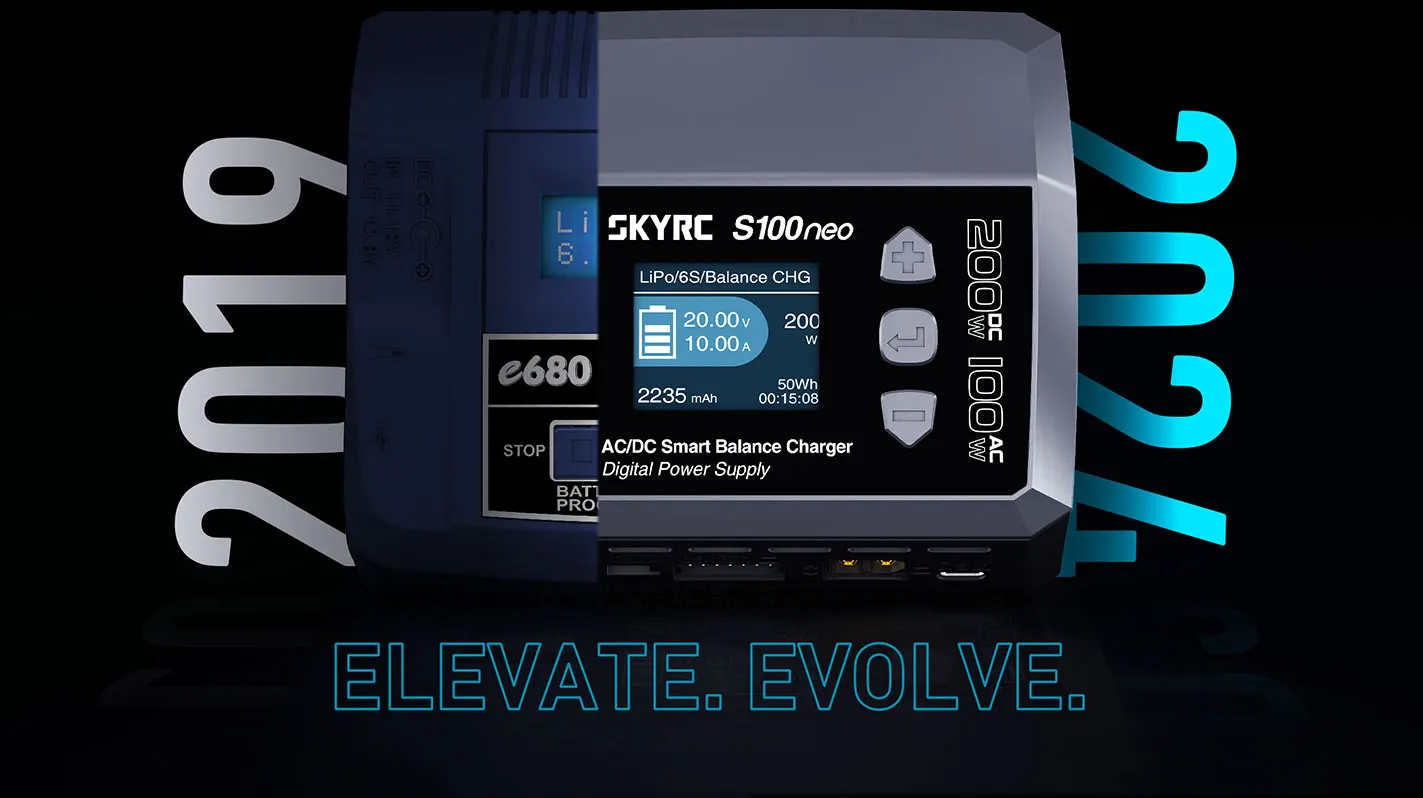

S100neo is a brand‑new AC/DC smart balance charger from SkyRC, built upon the legendary performance of the classic e680. Its core advantage lies in the powerful charging power of 100W AC input and 200W DC input, combined with an advanced digital power supply system that delivers precise and efficient charging in both constant‑current (CC) and constant‑voltage (CV) modes.

Charging performance beyond its predecessor: The charging current reaches up to 12A, far exceeding the 8A of the e680. Actual test data shows that charging a 6S 1300mAh LiPo battery with DC input takes only about 10 minutes (about 20 minutes with AC input), while the e680 requires about 25 minutes.

Ultimate balancing technology: The balancing current is as high as 1000mA, far surpassing the e680's 300mA, ensuring every cell receives optimal charging for perfect harmony.

Universal battery compatibility: Supports LiPo, LiFe, Li‑ion, LiHV, Pb, NiMH and NiCd battery types – a true "Swiss Army knife" among chargers.

Powerful discharging capability: When using the main port together with the balance port, the discharge power can reach 20W (5W via the main port alone). In actual tests, discharging a 6S battery takes about 1.5 hours, compared to 3 hours for the e680.

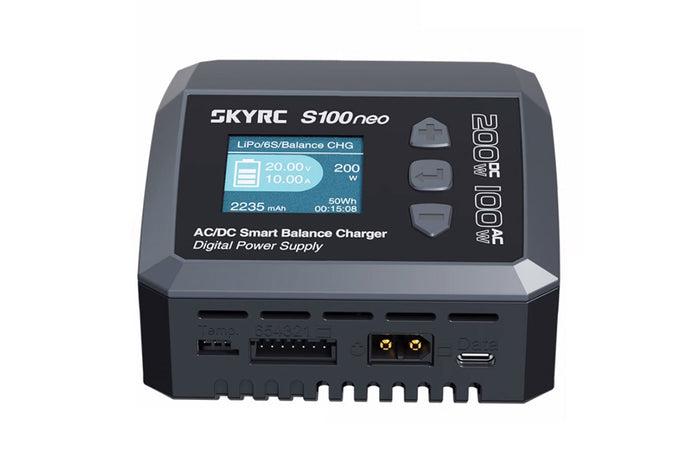

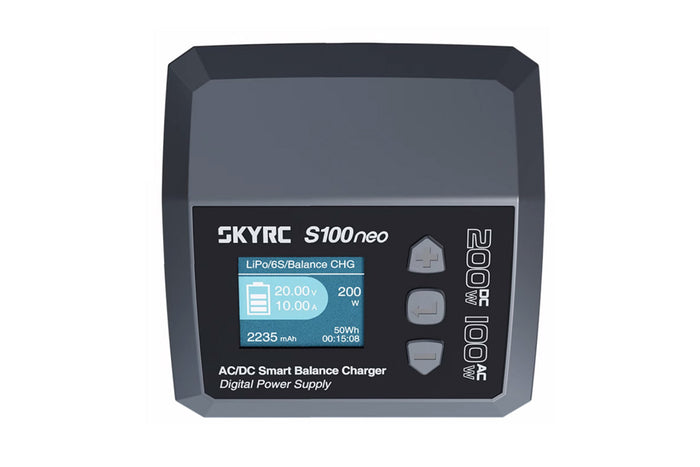

More than just a charger: S100neo can also serve as an adjustable DC power supply (2‑30V, 0.1‑12A), and features battery voltage checking and brushed motor run‑in functions. It is equipped with a 1.77‑inch colour LCD screen with the ColorX interface for intuitive interaction.

AC/DC Dual Input 12A Charge Current / 200W Power 1000mA Balance Current 6S LiPo Fast Charge ~10 min Adjustable DC PSU (2‑30V) Brushed Motor Run‑in
Safety Reminder: Never leave the charger unattended while charging, especially overnight. Do not charge damaged,报废 or wet batteries. Ensure the charger is placed in a well‑ventilated area away from flammable materials. Do not connect both AC and DC power sources simultaneously.
Specifications
Model S100neo
Case Material PC‑ABS V0 flame‑retardant
Dimensions 105 × 105 × 62 mm
Weight 340g
AC Input 100‑240V (50/60Hz)
DC Input 6‑30V
Charging Power AC 100W (±10%) / DC 200W (±10%)
Discharge Power Main port 5W (±20%) / Main+Balance port 20W Max (LiPo 6S)
Charge Current 0.1‑12.0A (LiPo/LiFe/Li‑ion/LiHV/NiMH/NiCd/Pb)
Discharge Current 0.1‑2.0A
Balance Current Max 1000mA (LiPo/LiFe/Li‑ion/LiHV)
Supported Battery Types & Cell Counts LiPo/Li‑ion/LiFe/LiHV: 1‑6 cells; NiMH/NiCd: 1‑15 cells; Pb: 3/6/12 cells
Operating Modes (LiPo/LiFe/Li‑ion/LiHV) Balance charge, Charge, Discharge, Storage
Operating Modes (NiMH/NiCd) Charge, Discharge, Cycle (Chg‑Dchg), Cycle (Dchg‑Chg), Re‑Peak
Operating Modes (Pb) Standard, Cold, AGM, Discharge
Display 1.77" TN LCD, 128×160 pixels, 262K colours
Protections Short circuit, over‑temperature, capacity, time, under‑voltage, over‑voltage, reverse polarity
Frequently Asked Questions (FAQ)
Q1: What battery types does the S100neo support?
The S100neo is a universal charger that supports LiPo, LiFe, Li‑ion, LiHV, Pb (lead‑acid), NiMH (nickel‑metal hydride) and NiCd (nickel‑cadmium) battery chemistries, covering the vast majority of RC and drone battery needs.
Q2: How long does it take to fully charge a 6S 1300mAh drone battery?
It depends on the power source you use. According to official test data:
• With DC input, the charging power can reach 200W, and a full charge takes about 10 minutes.
• With AC input, the charging power is 100W, taking about 20 minutes.
Q3: What are the advantages of the S100neo's balancing function?
The S100neo features a powerful balancing current of up to 1000mA, far exceeding that of competing products. This allows it to balance the voltage of each cell in the battery pack faster and more efficiently, ensuring every cell reaches optimal charge status, thereby extending battery life and enhancing flight safety.
Q4: What should I do if the charger shows "Balance Connection Error"?
This indicates that the balance port is not connected correctly. Check all connections to ensure they are secure, and make sure the balance plug is fully inserted into the charger's balance port with the correct polarity.
Q5: What should I do if the charger shows "Reversed Polarity" error?
This means the battery connections (positive and negative) are reversed. Immediately disconnect the battery and reconnect it with the correct polarity to avoid damaging the charger or the battery.
Q6: What should I do if the charger shows "DC In Too Low"?
This indicates that the DC input voltage is lower than the charger's minimum requirement (6V). Check your DC power source and ensure its output voltage is within the 6‑30V range.
Q7: What should I do if the charger warns "Internal Temperature Too High"?
This means the charger is overheating internally. Immediately move the charger to a well‑ventilated area and ensure its ventilation holes are not blocked. Allow it to cool down before resuming use.
Q8: What else can the S100neo do besides charging?
The S100neo is highly versatile:
• Adjustable DC power supply: can be used as a 2‑30V, 0.1‑12A power source for other electronic devices.
• Battery checker: connect the balance port to measure cell voltages and balance status.
• Brushed motor run‑in: built‑in function for breaking in brushed DC motors.
Q9: Is the S100neo noisy during operation?
No. Even under full load, the fan noise is no higher than 48 decibels, which is comparable to a quiet indoor environment and will not disturb your work or rest.
Q10: Can the S100neo be connected to a computer?
Yes. Via the Type‑C port, you can connect it to a PC or Mac and use the official "Charger Master" software to customise charging parameters, monitor battery health and optimise performance. Firmware upgrades can also be performed through this interface.
Q11: What safety precautions should I take when using the S100neo?
• Never leave the charger unattended while charging, especially overnight.
• Do not charge damaged,报废 or wet batteries.
• Place the charger in a well‑ventilated area away from flammable materials.
• Do not connect both AC and DC power inputs at the same time.
Package Contents
SkyRC S100neo Charger × 1 Quick Start Guide / User Manual × 1 AC Power Cord × 1
Optional accessory (sold separately): Temperature sensor cable (SK‑600040‑01) – required to enable temperature control when charging NiMH/NiCd batteries.
