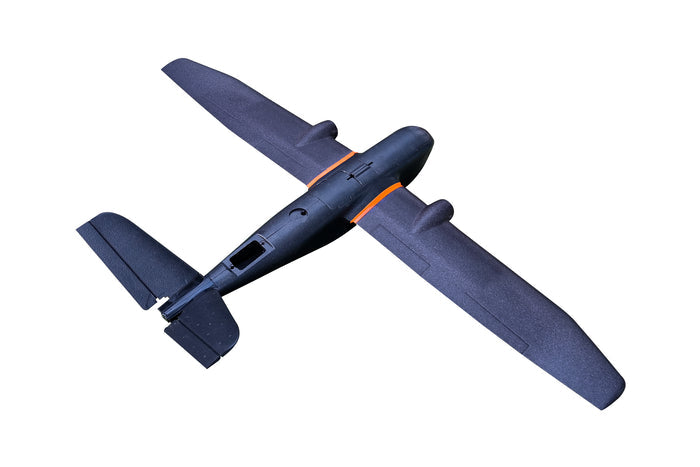

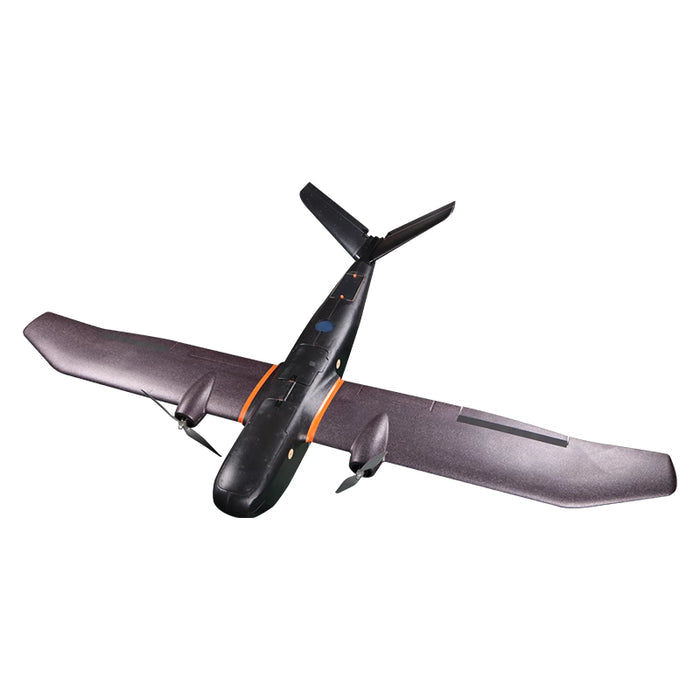

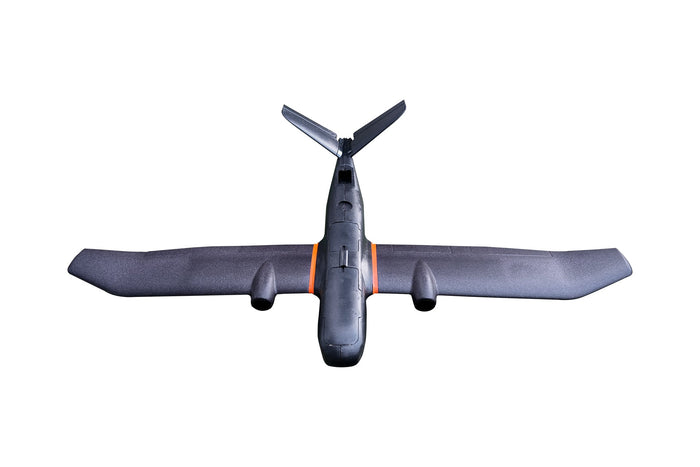

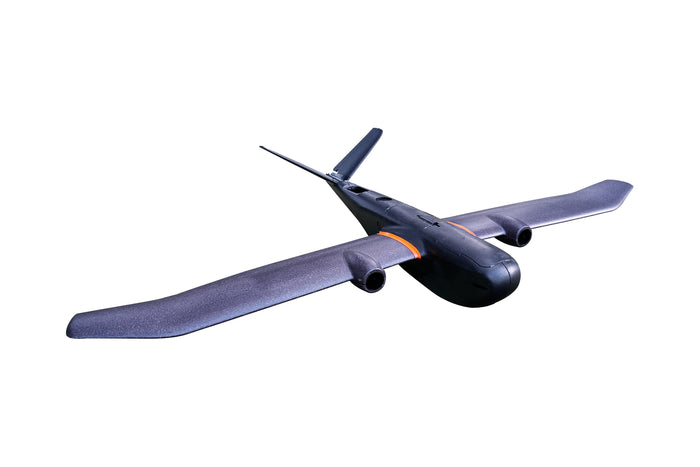

Skywalker TITAN fixed wing twin engine hand throwable drone
Skywalker TITAN fixed wing twin engine hand throwable drone
Core Overview
The TITAN is a large-payload, long-endurance fixed-wing drone designed specifically for professional aerial surveying operations. Its design inspiration comes from "Transformers", featuring a large payload bay for aerial survey equipment and an ergonomic overall proportion. It is launched by hand, making it easy to grip and throw.
Core Technology Advantages
Proven Performance, Reliable Endurance
Based on measured data, with a 1kg payload and paired with a 6S 16000mAh battery, the total range can reach 80 kilometers.
Quick-Detach Structure for Wings and Tail
The quick-detach structure for wings and tail enhances deployment efficiency.
Clear Power System Matching
The power system provides clear power matching. It is strictly forbidden to use oversized propellers, preventing motor overload and burnout risks from the source.
Usage Recommendations
- Critical Safety Reminder: It is essential to strictly follow the recommended configuration for propeller matching. Oversized propellers will cause the motor current to exceed the limit, leading to burnout. This is the primary prerequisite for ensuring flight safety.
- Usage Note: Before takeoff, based on the actual weight of the installed equipment, be sure to balance the aircraft strictly according to the flight center of gravity range (75-80mm behind the wing leading edge). This is key to ensuring stable flight attitude.

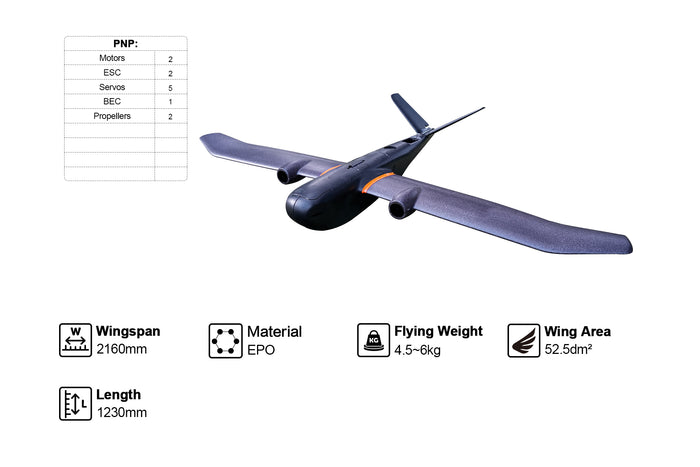

Product Parameters
Basic Specifications
| Item | Parameter |
|---|---|
| Model | TITAN |
| Fuselage Material | Imported EPO |
| Wingspan | 2160mm |
| Length | 1230mm |
| Wing Area | 52.5 dm² |
| Flying Weight | 4500g - 6000g |
| Flight Center of Gravity | 75-80mm behind the wing leading edge |
| Takeoff Method | Hand Launch, Catapult Launch |
| Landing Method | Parachute Landing, Glide Landing |
Recommended Configuration
Standard PNP Version
| Component | Specification |
|---|---|
| Motor | 2816 KV650/840 * 2 |
| ESC | Custom Dragonfly Series 40A * 2 |
| Servo | EMAX ES08MA (Aileron/Parachute Bay*3) + 85NG (Elevator)*2 |
| BEC | 5A (Supports 2-6S Input) |
| Propeller | 1060 Propeller*2 |
High-End PNP Version
| Component | Specification |
|---|---|
| Motor | 2816 KV650/840 * 2 |
| ESC | Custom Dragonfly Series 40A * 2 |
| Servo | 65MG Metal Gear Servo (Aileron/Parachute Bay)*3 + 85NG (Elevator)*2 |
| BEC | Custom 7A (Supports 6-12S Input) |
| Propeller | 1060 Propeller*2 |
Frequently Asked Questions (FAQ)
Q: What is the actual operational range of TITAN when carrying a payload?
A: Based on measured data, with a typical configuration of a 1kg payload and a 6S 16000mAh battery, the total range can reach 80 kilometers.
Q: How to choose between 6S and 4S configuration?
A: The 6S configuration is more efficient, operating at a lower current at the same speed, which helps extend the overall battery cycle life and may result in longer endurance. The 4S configuration is a mature and reliable solution with wider voltage adaptability. If you are pursuing optimal energy efficiency, it is recommended to choose the 6S configuration.
Q: What is the specific reason for the product's emphasis on "strictly forbidding oversized propellers"?
A: This is a critical safety operating regulation. Oversized propellers cause a sharp increase in motor load, and the operating current far exceeds the rated capacity of the ESC and motor, leading to motor or ESC overheating and burnout in a short time, resulting in a crash. It is essential to strictly use the recommended propeller model.
