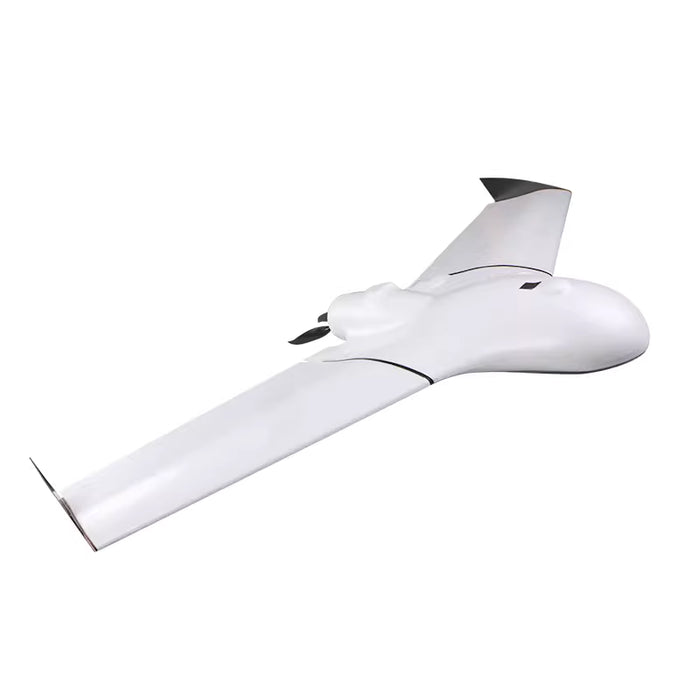

Skywalker X5pro-v2 1260MM UAV Fixed Wing DRONE
Skywalker X5pro-v2 1260MM UAV Fixed Wing DRONE
Professional Survey Platform
Built for mapping · Modular quick-release design
Low-Drag Airfoil
Sleek lines · Carbon wingtips · Enhanced penetration
Lightweight & Durable
Imported EPO · Flying weight 1800–2500g
Flexible Deployment
Hand‑launch / Bungee · Skid / Parachute recovery
Skywalker X5 PRO is a fixed‑wing UAV airframe meticulously crafted for professional surveying and mapping customers. Made from imported high‑density EPO foam, it significantly reduces weight while maintaining structural integrity, enhancing flight efficiency and endurance. The EPO material offers excellent toughness and impact resistance, ensuring superior durability even under demanding takeoff and landing conditions, greatly extending its service life.

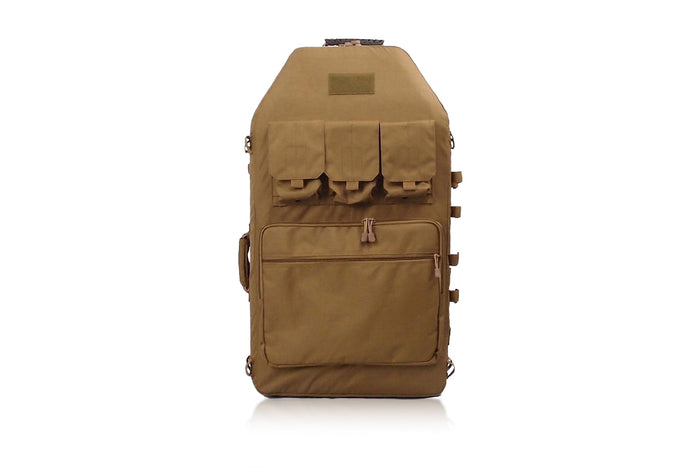

The X5 PRO features a modular quick‑release structure that allows tool‑free assembly or disassembly within minutes. The disassembled components are compact and can be easily stored in a dedicated backpack or travel case, greatly facilitating field operations and long‑distance transport. The wing‑to‑fuselage connection uses professional quick‑release fittings that not only enable swift assembly but also guarantee rigid and reliable connections after repeated use.
Aerodynamically, the X5 PRO embodies principles of fluid dynamics. Its airfoil has undergone multiple CFD simulations and wind‑tunnel validations, resulting in smooth contours and low drag. The carbon‑fibre winglets effectively reduce wingtip vortices, improve lateral/directional stability, and enhance wind‑penetration performance. This design strikes an excellent balance between agility and long‑range flight capability, making it suitable for both fine‑scale low‑altitude photogrammetry and rapid wide‑area reconnaissance missions.
The spacious fuselage bay accommodates mainstream survey flight controllers (e.g., Pixhawk/Cube), high‑precision GPS/RTK modules, telemetry radios, and a variety of mirrorless or compact mapping cameras. It provides a flexible equipment platform for professional applications including aerial surveying, inspection, agricultural remote sensing, and emergency reconnaissance. The airframe has been extensively flight‑tested and proven reliable in moderate weather conditions (up to 4‑5 Beaufort scale winds) for high‑quality data acquisition.
| Brand | Skywalker |
| Model | X5 PRO |
| Material | Imported high‑density EPO |
| Wingspan | 1260 mm |
| Length | 650 mm |
| Wing Area | 48 dm² |
| Flying Weight | 1800–2500 g |
| CG Position | 320–325 mm aft of nose |
| Launch Methods | Hand‑throw, bungee |
| Landing Methods | Skid landing, parachute |
| Wind Resistance | Up to 4‑5 Beaufort |
| Cruise Speed | ~60‑70 km/h |
| Flight Endurance | ~25 minutes |
| Payload Capacity | ~700 g |
| Service Ceiling | ~200 m |
| Motor | 2826 KV840 |
| ESC | 60A |
| Propeller | 1280F |
| Battery | 4S 5200mAh Li‑Po |
| Servo | 12g digital × 2 pcs |
| Radio | At least 3CH (with 2 servo channels) |
| Item | KIT (Airframe Kit) | PNP (Parts Kit) | Remarks |
|---|---|---|---|
| X5 PRO Fuselage (EPO) | ● | ● | Includes bay & quick‑release parts |
| Main Wing (with carbon winglets) | ● | ● | — |
| Quick‑release connectors | ● | ● | For wing‑fuselage attachment |
| Accessory pack (screws, etc.) | ● | ● | Small hardware kit |
| Motor | — | ● | |
| ESC | — | ● | |
| Servos | — | ● | |
| Propeller | — | ● |
KIT (Airframe Kit): Includes only the bare airframe and basic structural parts (fuselage, main wing, quick‑release connectors, accessory pack). No electronics included. Ideal for users who already have their own equipment or prefer full customisation.
PNP (Parts Kit): Includes motor, ESC, servos, and propeller – all as separate components (loose parts) that require user assembly and setup. Suited for users with some building experience who want to avoid the hassle of sourcing electronics individually.
