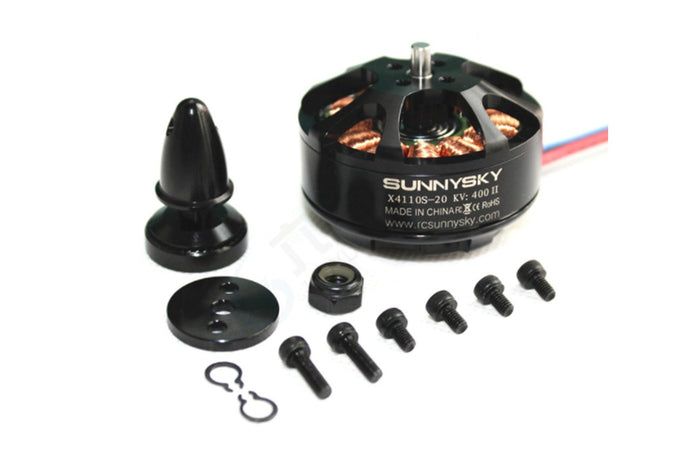

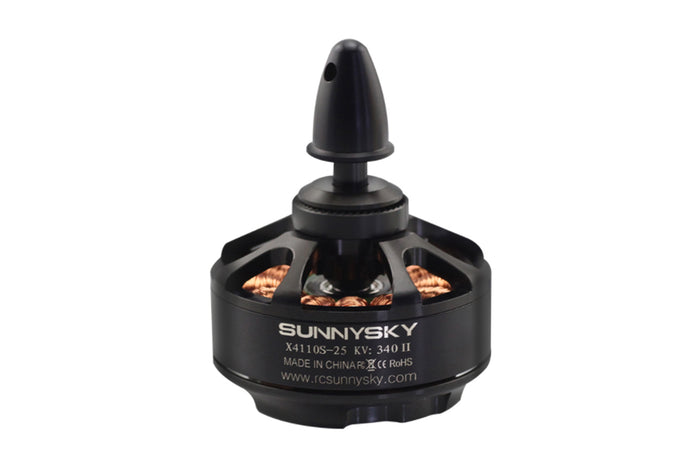

Sunnysky X4110S UAV power motor
$24.99
Sale price
$24.99
Regular price
$35.20
| Specifications | X4110S | |
| Stator Diameter | 41mm | |
| Stator Thickness | 10mm | |
| No.of Stator S1ots | 12 | |
| No.of Rotor Poles | 14 | |
| Motor Kv | 460 | |
| NO-Load Current(A/10V) | 0.7A | |
| Motor Resistance | 85mS | |
| Max Continuous Current | 41A/30s | |
| Max Continuous Power | 1025W | |
| Weight | 161g | |
| Rotor Diameter | 48.2mm | |
| Body Length | 30.5mm | |
| Max Lipo Cel1 | 6S | |
| ESC | 40A | |
| Recommend Prop(inch) | 12*513*515*5.5 | |
| 螺旋桨(英寸 | 电压(V) | 电流(A) | 拉力(g) | 功率(W) | 力效(g/W) | 转速(RPM) | 全油门负载温度 |
| Prop | Volts | Amps | Thrust(g) | Watts(W) |
Efficiency (g/W) |
RPM | 全油门负载温度 |
| (inch) | (W | (A) | |||||
|
EOLO CN12*5 折叠桨 |
22.2 | 0.8 | 200 | 17.76 | 11.26 | 2927 | |
| 1.8 | 400 | 39.96 | 10.01 | 3956 | |||
| 3.1 | 600 | 68.82 | 8.72 | 4794 | |||
| 4.5 | 800 | 99.9 | 8.01 | 5448 | |||
| 6.1 | 1000 | 135.42 | 7.38 | 6083 | |||
| 7.9 | 1200 | 175.38 | 6.84 | 6630 | |||
| 10 | 1400 | 222 | 6.31 | 7107 | |||
| 12.1 | 1600 | 268.62 | 5.96 | 7580 | |||
| 14.4 | 1800 | 319.68 | 5.63 | 8046 | |||
| 18.1 | 2100 | 401.82 | 5.23 | 8610 | |||
| 25 | 0.7 | 200 | 17.5 | 11.43 | 2930 | ||
| 1.6 | 400 | 40 | 10.00 | 3958 | |||
| 2.8 | 600 | 70 | 8.57 | 4795 | |||
| 4.1 | 800 | 102.5 | 7.80 | 5450 | |||
| 5.5 | 1000 | 137.5 | 7.27 | 6080 | |||
| 7.1 | 1200 | 177.5 | 6.76 | 6635 | |||
| 8.8 | 1400 | 220 | 6.36 | 7110 | |||
| 10.7 | 1600 | 267.5 | 5.98 | 7582 | |||
| 12.8 | 1800 | 320 | 5.63 | 8020 | |||
| 15 | 2000 | 375 | 5.33 | 8490 | |||
| 18.1 | 2250 | 452.5 | 4.97 | 8860 | |||
| 22 | 2570 | 550 | 4.67 | 9435 | 60℃ | ||
| EOLO CN13*5 |
0.7 | 200 | 15.54 | 12.87 | 2416 | ||
| 1.7 | 400 | 37.74 | 10.60 | 3375 | |||
| 2.8 | 600 | 62.16 | 9.65 | 4112 | |||
| 4.1 | 800 | 91.02 | 8.79 | 4751 | |||
| 5.7 | 1000 | 126.54 | 7.90 | 5246 | |||
| 22.2 | 7.3 | 1200 | 162.06 | 7.40 | 5720 | ||
| 9.3 | 1400 | 206.46 | 6.78 | 6154 | |||
| 11.2 | 1600 | 248.64 | 6.44 | 6617 | |||
| 13.7 | 1800 | 304.14 | 5.92 | 6955 | |||
| 16.1 | 2000 | 357.42 | 5.60 | 7278 | |||
| 19.5 | 2250 | 432.9 | 5.20 | 7688 | |||
| 23.3 | 2530 | 517.26 | 4.89 | 8129 | |||
| 0.65 | 200 | 16.25 | 12.31 | 2420 | |||
| 1.5 | 400 | 37.5 | 10.67 | 3379 | |||
| 2.5 | 600 | 62.5 | 9.60 | 4115 | |||
| 3.7 | 800 | 92.5 | 8.65 | 4750 | |||
| 5.1 | 1000 | 127.5 | 7.84 | 5250 | |||
| 6.6 | 1200 | 165 | 7.27 | 5725 | |||
| 25 | 8.2 | 1400 | 205 | 6.83 | 6155 | ||
| 10.1 | 1600 | 252.5 | 6.34 | 6620 | |||
| 12.1 | 1800 | 302.5 | 5.95 | 6958 | |||
| 14.2 | 2000 | 355 | 5.63 | 7280 | |||
| 17.2 | 2250 | 430 | 5.23 | 7691 | |||
| 20.5 | 2500 | 512.5 | 4.88 | 8068 | |||
| 28.4 | 3040 | 710 | 4.28 | 8841 | 85℃ | ||
|
EOLO CN15*5.5 |
22.2 | 0.6 | 200 | 13.32 | 15.02 | 1954 | |
| 1.4 | 400 | 31.08 | 12.87 | 2694 | |||
| 2.4 | 600 | 53.28 | 11.26 | 3285 | |||
| 3.6 | 800 | 79.92 | 10.01 | 3737 | |||
| 5 | 1000 | 111 | 9.01 | 4160 | |||
| 6.6 | 1200 | 146.52 | 8.19 | 4547 | |||
| 8.3 | 1400 | 184.26 | 7.60 | 4895 | |||
| 10.2 | 1600 | 226.44 | 7.07 | 5215 | |||
| 12.3 | 1800 | 273.06 | 6.59 | 5472 | |||
| 14.6 | 2000 | 324.12 | 6.17 | 5747 | |||
| 18 | 2250 | 399.6 | 5.63 | 6087 | |||
| 22.1 | 2500 | 490.62 | 5.10 | 6380 | |||
| 34.1 | 3230 | 757.02 | 4.27 | 7171 | |||
| 25 | 0.5 | 200 | 12.5 | 16.00 | 1955 | ||
| 1.3 | 400 | 32.5 | 12.31 | 2695 | |||
| 2.2 | 600 | 55 | 10.91 | 3284 | |||
| 3.2 | 800 | 80 | 10.00 | 3740 | |||
| 4.5 | 1000 | 112.5 | 8.89 | 4162 | |||
| 5.9 | 1200 | 147.5 | 8.14 | 4520 | |||
| 7.4 | 1400 | 185 | 7.57 | 4891 | |||
| 9.2 | 1600 | 230 | 6.96 | 5217 | |||
| 11 | 1800 | 275 | 6.55 | 5475 | |||
| 13.1 | 2000 | 327.5 | 6.11 | 5750 | |||
| 16 | 2250 | 400 | 5.63 | 6091 | |||
| 19.4 | 2500 | 485 | 5.15 | 6382 | |||
| 40.4 | 3650 | 1010 | 3.61 | 7633 | 1min 105℃ |
