T900-MINI T01/T02 UAV Data Transmission Radio | 902-928 MHz FHSS Long-Range UAV Radio
T900-MINI T01/T02 UAV Data Transmission Radio | 902-928 MHz FHSS Long-Range UAV Radio
T01：

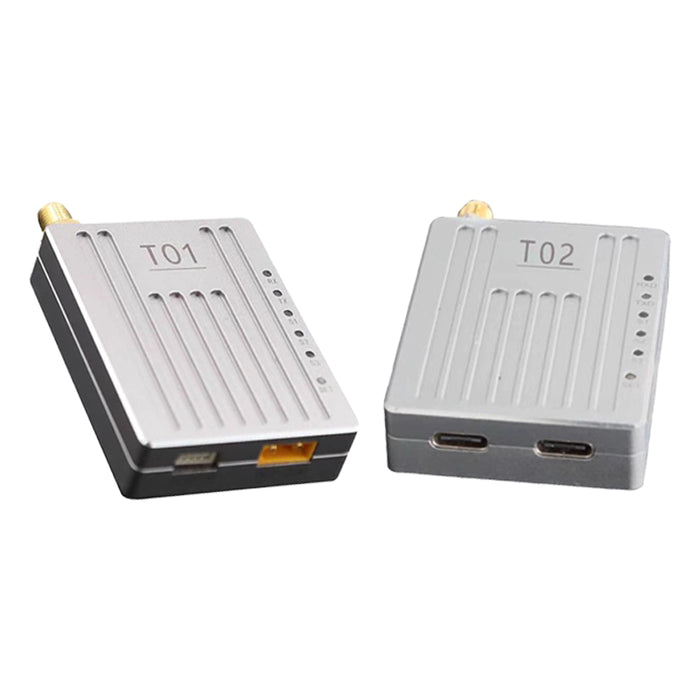

T900-MINI-T01 is a miniaturized data transfer radio of the T900 Honeybee series. The T900 Honeybee series include T01 and T02 models. The only difference between the two is the interface. T01 is mainly used on UAV and has the advantages of small size, high integration and high sensitivity. It operates within the 902~928MHz frequency band. In a good environment, the maximum transmission distance can reach 60km.This product is suitable for UAV,inspection, monitoring and etc.
- Frequency range：902-928MHz
- Spread spectrum mode：FHSS
- Data encryption：AES256
- Range of communication：up to 60km
- Output power：1W（30dBm）
- Orifice speed：up to 276.4kbps
- Serial baud rate：up to 921.6kbps
- Working temperature：-40°C ~ +70°C
| Description | T900 MINI series |
| Model | T900-MINI-T01 |
| Parameters | |
| Working frequency | 902~928MHz |
| Modulation | 2FSK |
| Spread spectrum | FHSS |
| TX power | 1W(30dBm) |
| Working mode | point-to-point,point-to-multipoint,with central MESH |
| Data encryption | AES256 |
| Performance | |
| Receiving sensitivity | -106dBm@276.4kbps-107dBm@230.4kbps-108dBm@172.8kbps-109dBm@115.2kbps -110dBm@57.6kbps |
| Transmission rate | 57.6kbps~276.4kbps |
| Error detection | 16-bit CRC,ARQReedSolomon |
| Interface specifications | |
| Data interface | GH1.25-4PIN |
| Power interface | XT30 internal needle |
| Antenna interface | SMA |
| Electrical specifications | |
| Voltage range | DC7~26V |
| System power consumption | <10W |
| Physical specifications | |
| Dimensions(L*W*H) | 53mm*40mm*13mm |
| Weight | 43.6g |
| Working temperature |
-40℃~+70℃ |
T900-MINI-T01 Connection steps:
◆ SMA Connected antenna.
◆ The power supply to T01 is DC7~26V, typical value is +12V.
◆ The serial port can be connected in the following ways. The serial port can also be
used to configure AT command parameters.
(Notes：Please confirm whether the serial port of the T01 device is TTL level or RS232
level).
T02：
T900-MINI-T01 is a miniaturized data transfer radio of the T900 Honeybee series. The T900 Honeybee series include T01 and T02 models. T02 uses Type C interface and is generally used for ground end. It has the advantages of small size, high integration and high sensitivity. T02 operates within the 902~928MHz frequency band. In a good environment the maximum transmission distance can reach 60km.This product is suitable for UAV,inspection, monitoring and etc.
- Frequency range：902-928MHz
- Spread spectrum mode：FHSS
- Data encryption：AES256
- Range of communication：up to 60km
- Output power：1W（30dBm）
- Orifice speed：up to 276.4kbps
- Serial baud rate：up to 921.6kbps
- Working temperature：-40°C ~ +70°C
| Description | T900 MINI series |
| Model | T900-MINI-T02 |
| Parameters | |
| Working frequency | 902~928MHz |
| Modulation | 2FSK |
| Spread spectrum | FHSS |
| TX power | 1W(30dBm) |
| Working mode | point-to-point,point-to-multipoint,with central MESH |
| Data encryption | AES256 |
| Performance | |
| Receiving sensitivity | -106dBm@276.4kbps-107dBm@230.4kbps-108dBm@172.8kbps -109dBm@115.2kbps -110dBm@57.6kbps |
| Transmission rate | 57.6kbps~276.4kbps |
| Error detection | 16-bit CRC,ARQReedSolomon |
| Interface specifications | |
| Data interface | USB Type-C |
| Power interface | USB Type-C |
| Antenna interface | SMA |
| Electrical specifications | |
| Voltage range | DC7~26V |
| System power consumption | <10W |
| Physical specifications | |
| Dimensions(L*W*H) | 53mm*40mm*13mm |
| Weight | 41.1g |
| Working temperature | -40℃~+70℃ |
T900-MINI-T02 Connection Steps:
◆ SMA Connected antenna.
Two USB cables are connected to the computer. The USB port not only provides 5V
power supply, but also supports data transmission and parameter settings. The
DC5V port provides power supply only
T01/T02 User Manual
Suggested FAQs for the product page:
-
Q: What is the maximum transmission range of the T900-MINI T01/T02?
A: Up to 60 km in optimal conditions. -
Q: What frequency range does this radio operate on?
A: 902–928 MHz. -
Q: What spread spectrum technology does it use?
A: Frequency Hopping Spread Spectrum (FHSS) for anti-interference performance. -
Q: Is the data transmission secure?
A: Yes, it uses AES256 encryption to protect UAV data. -
Q: What is the difference between T01 and T02 models?
A: T01 is compact for UAV installation; T02 is for ground stations with USB Type-C connection. -
Q: What is the radio’s output power?
A: 1W (30 dBm). -
Q: What data rates are supported?
A: 57.6 kbps – 276.4 kbps, up to 921.6 kbps via UART. -
Q: What is the operating temperature range?
A: –40°C to +70°C. -
Q: How is the antenna connected?
A: Via SMA connector. -
Q: Does it support mesh network mode?
A: Yes, it supports both point-to-point and central mesh network modes.
