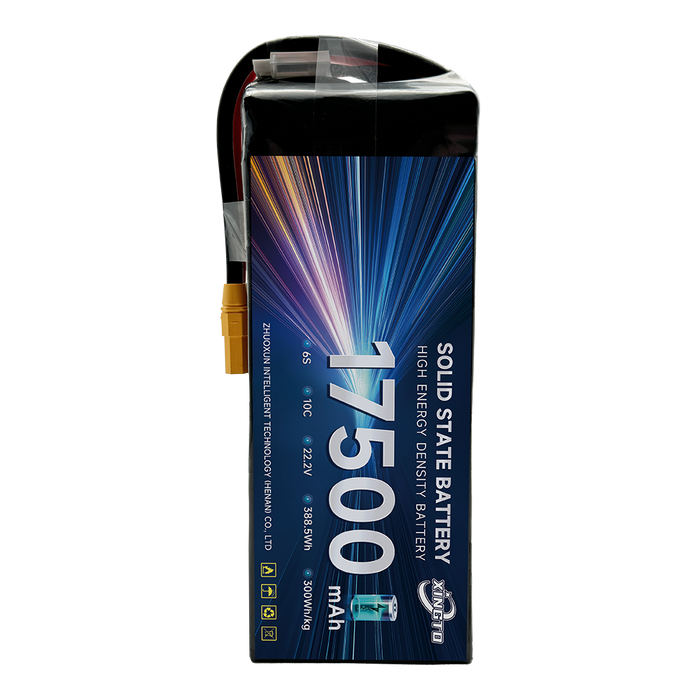

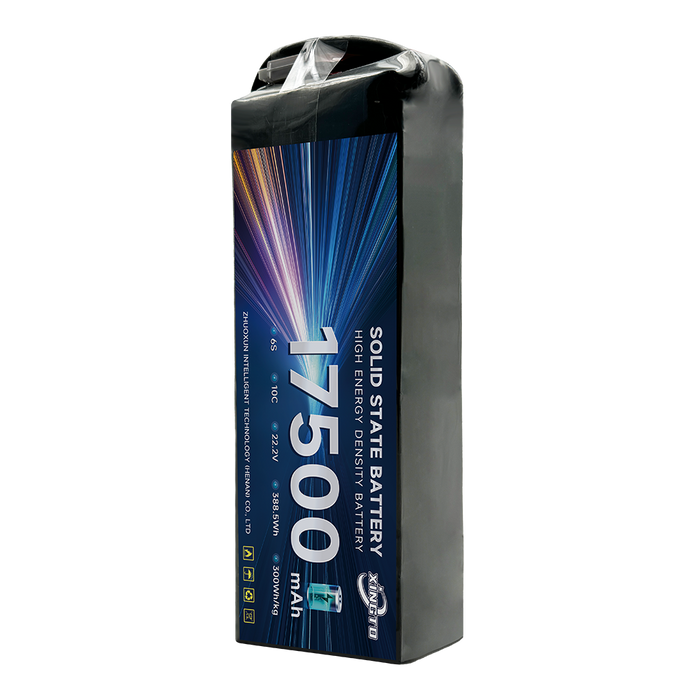

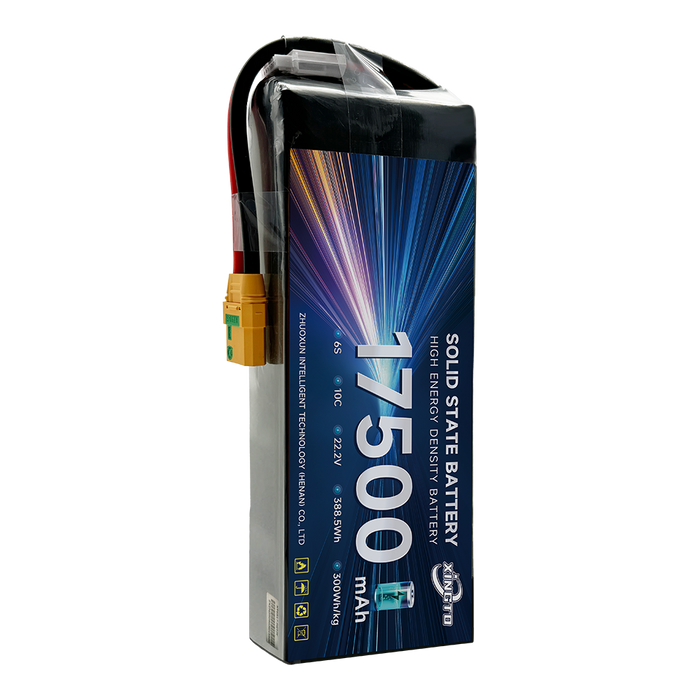

Xingto Solid-State Drone Battery 6S 300wh/kg

ZXGT001-6S25AH(3c)

$199.44

$199.44 $277.00

Xingto Solid-State Drone Battery 6S 300wh/kg

$199.44

$199.44 $277.00

(Please specify the type of plug you need when placing your order.)

Xingtuo Solid-State Drone Battery 6S 300WH Series

300Wh/kg High Energy Density

Smaller size, longer flight time

10C Instant Peak

≤3s, meets demanding power needs

Wide Temperature Range

-20℃ low-temp retention ≥80%

800 Cycle Life

0.5C/1C, 100% DOD

The Xingtuo Solid-State Drone Battery 6S 300WH Series is a high‑energy‑density lithium polymer battery, purpose‑built for long‑endurance drones. With an energy density of 300Wh/kg, it incorporates high‑nickel ternary cathodes, silicon‑carbon anodes, and advanced coated separator technology, making it smaller and lighter than conventional batteries while significantly extending flight times. It supports 3C continuous discharge and 10C instantaneous peak (≤3s), fulfilling the power demands of professional applications such as surveying, logistics, inspection, and firefighting. The battery operates over a wide temperature range (charge 0~45℃, discharge -20~55℃), with low‑temperature (-20℃) capacity retention ≥80% and high‑temperature (55℃) retention ≥94%. Cycle life reaches 800 cycles at 0.5C/1C (100% DOD), reducing replacement frequency. The product has passed multiple safety and transport certifications, ensuring reliable quality.

300Wh/kg Energy Density 3C Continuous / 10C Instant Peak -20℃~55℃ Wide Operating Range 800 Cycle Life 6S 22.2V Nominal Voltage 17.5Ah / 25Ah / 29Ah Options

Note: Before use, ensure charging voltage does not exceed 25.2V and charging current does not exceed 1C. During discharge, voltage must not drop below the cut‑off voltage of each model (15.6V for 17.5/29Ah, 16.5V for 25Ah), otherwise permanent damage may occur.

Common Parameters

Nominal Voltage	22.2V
Charging Limit Voltage	25.2V
Energy Density	300Wh/kg
Standard Charge Current	0.5C
Max. Continuous Charge Current	1C
Continuous Discharge Current	3C
Instant Peak Discharge Current	10C (≤3s)
Charge Temperature Range	0～45℃
Discharge Temperature Range	-20～55℃
Storage Temperature	-10～35℃
Storage Humidity	＜75%RH
Storage Charge	40%～60% (single cell 3.7～3.9V)
Internal Resistance	＜8mΩ
Factory Voltage	21V～21.6V

Model Comparison

Parameter	17.5Ah Model	25Ah Model	29Ah Model
Nominal Capacity	17.5Ah	25Ah	29Ah
Dimensions (L×W×H)	75×48×193mm	66×76×193mm	90×60×213mm
Weight	1.48kg	2.02kg	2.38kg
Discharge Cut‑off Voltage	15.6V	16.5V	15.6V
Standard Charge Cut‑off Current	0.02C	0.05C	0.02C
Continuous Discharge Capability	3C (52.5A)	3C (75A)	3C (87A)
Instant Peak Current Capability	10C (175A)	10C (250A)	10C (290A)

Frequently Asked Questions

Q1: What scenarios are the three models suitable for?

17.5Ah is ideal for short‑endurance missions on small to medium drones; 25Ah suits medium drones with moderate endurance; 29Ah is designed for large drones requiring long endurance, such as surveying, logistics, and firefighting.

Q2: What are the nominal and full charge voltages?

Nominal voltage is 22.2V, and full charge (cut‑off) is 25.2V (6‑series).

Q3: What are the key charging requirements?

Always use a dedicated charger with balancing function. Charge current ≤1C, voltage ≤25.2V, ambient temperature 0~45℃, and the process must be monitored.

Q4: What should I watch out for during discharge?

Continuous discharge ≤3C, instant peak ≤10C and ≤3s. Voltage must not drop below the cut‑off (15.6V for 17.5/29Ah, 16.5V for 25Ah) to avoid permanent damage.

Q5: How should I store the battery for long periods?

Store in a dry, cool place with voltage kept at 22.8~23.4V (single cell 3.80~3.90V). Charge/discharge every 3 months.

Q6: What is the operating temperature range?

Charge: 0~45℃, Discharge: -20~55℃. During discharge, cell temperature must not exceed 65℃.

Q7: What is the cycle life?

800 cycles at 0.5C/1C (100% DOD); 500 cycles at 1C/3C (100% DOD).

Q8: What happens if I reverse the polarity?

Reversing polarity is strictly prohibited; it may cause damage, short‑circuit, or even fire and explosion.

Q9: Can I continue using a swollen or deformed battery?

Never use a battery with severe scars, deformation, or swelling. Such batteries are highly flammable and must be disposed of properly.

Q10: What should I do if the terminals get dirty?

Wipe clean with a dry cloth before use.

Q11: What are the transport charge requirements?

Transport with 40%~60% charge (single cell 3.7~3.9V), complying with air transport safety standards.

Q12: How to dispose of old or damaged batteries?

Package properly and place in designated recycling bins. Never throw into fire or liquid. Cracked batteries must be disposed of immediately and not reused.

Handling Instructions

Danger (Strictly Prohibited)

Do not heat or throw into fire; keep away from fire and temperatures above 60℃ Do not immerse in water or get wet Do not short‑circuit positive and negative terminals with metal conductors Do not pierce with sharp objects, disassemble, or solder directly Do not store with metal items (necklaces, hairpins, coins, screws, etc.)

Warning (Charging & Use)

Always use a specified charger and follow the instructions Charging voltage ≤25.2V, current ≤1C Do not reverse polarity when installing Do not mix with dry cells or other battery types Do not use in heating vessels, washing machines, or high‑pressure containers

Attention (Daily Maintenance)

If the battery becomes hot, emits odor, changes color, deforms, etc., stop using immediately If leakage or pungent odor occurs, stay away immediately Charge, use, and store away from electrostatic sources Remove from device and store in low‑temperature, low‑humidity environment if unused for long Keep out of reach of children Clean dirty terminals with a dry cloth before use Operating temperature must stay within specified limits
