SKYRC PC1080 6S High-Power Charger

PC1080 Overview

The PC1080 is a dual-channel LiPo/LiHV battery charger designed specifically for drone operators. It is capable of balance charging two blocks of 6S LiPo or high-voltage LiPo (LiHV) batteries simultaneously.

Operating modes include Fast Charge, Precision Charge, and Storage Mode. The device features simple operation and supports Master-Slave Mode, allowing multiple chargers to be synchronized and configured simultaneously via a data cable link, significantly reducing setup times.

The unit is equipped with built-in short-circuit protection, reverse polarity protection, and over-temperature protection functions.

Technical Specifications

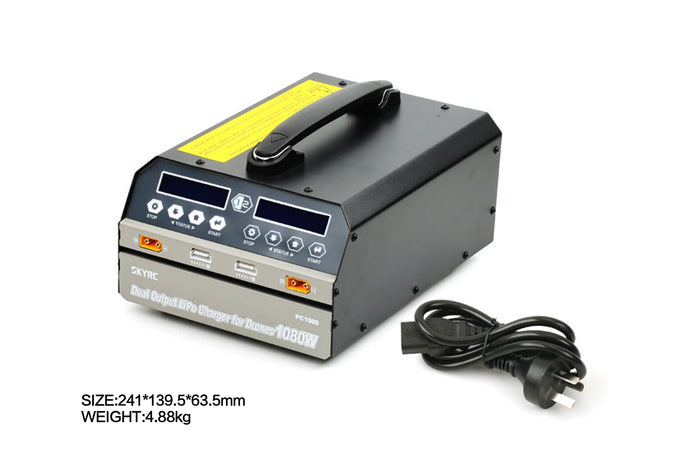

• Dimensions: 241 × 139.5 × 63.5 mm

• Weight: 4.88 kg

• Display Screen: LCM Display

• Interface Language: English Display

• External Ports: AC Input Jack, 6S XH Balance Port, XT90 Battery Connector

• Control Scheme: 2 × sets of 4 Membrane Buttons

• AC Input: 100–240 V

• Charge Power: 522 W × 2

• Discharge Power: 100 W (50 W × 2)

• Battery Type / Cell Count: LiPo / LiHV (6 Cells)

• Charge Current: 1.0 A–20.0 A × 2

• Discharge Current: 2.0 A × 2

• Cell Count: 6S

• Balance Current: 1000 mA–1500 mA / cell

• Safety Timer: 1–720 minutes (user-configurable) / Disabled

• Charge Modes: Precision Charge, Fast Charge, Storage Mode, Charger Master Mode

• Operating Temperature: 0°C–40°C

• Operating Humidity: 0%–75%

• Storage Temperature: -10°C–70°C

• Storage Humidity: 0%–75%
