Yuanhang Studio X1300 Pusher-Prop FPV Fixed-Wing Carrier Aircraft

KIT

$60.75

$60.75 $81.00

Yuanhang Studio X1300 Pusher-Prop FPV Fixed-Wing Carrier Aircraft

$60.75

$60.75 $81.00

X1300 FPV Fixed-Wing Aircraft Beginner · Open-Source 3D Printing

3D Printed Open-Source

Print replacement parts yourself

Screw‑less Quick Assembly

2‑minute tool‑free assembly

Large Battery Capacity

Up to 4S2P‑10000mAh

HD FPV Support

DJI O3 / Walksnail

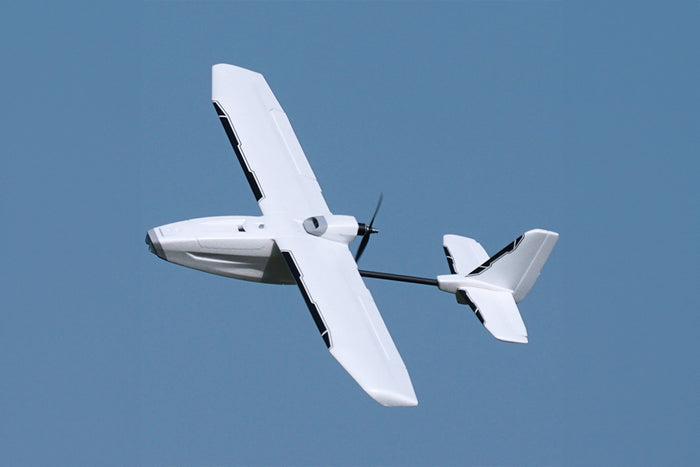

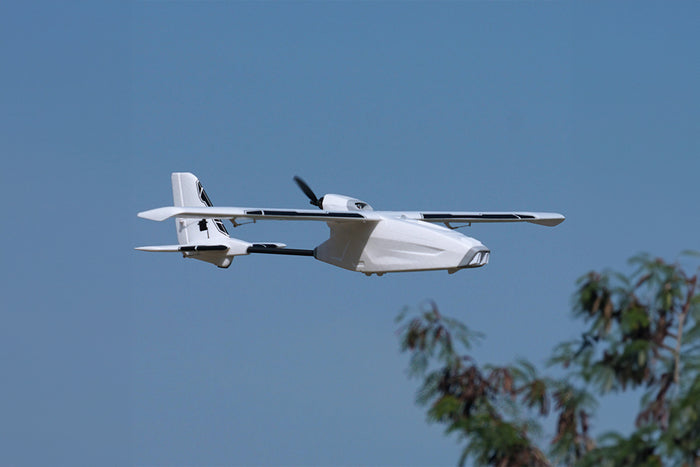

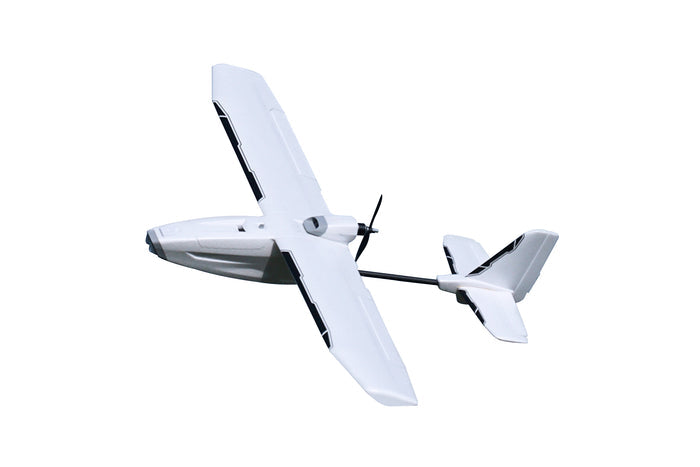

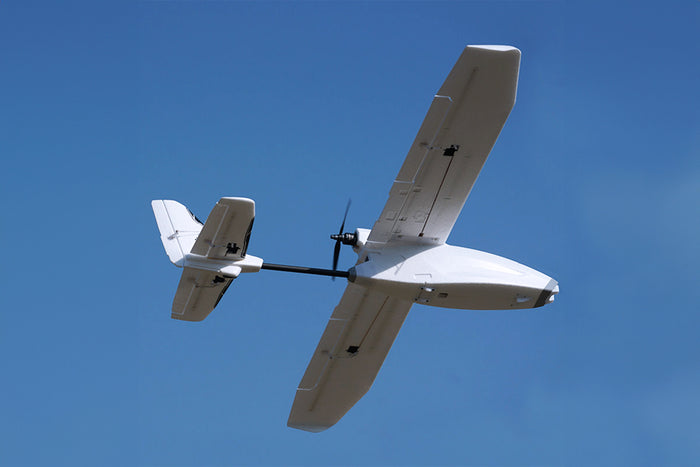

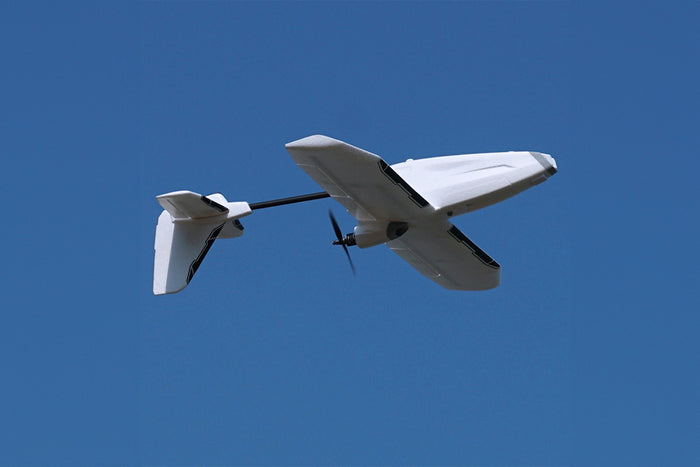

The X1300 is a 3D‑printed FPV fixed‑wing aircraft developed by XFly Model. Featuring a high‑wing, pod‑and‑boom (rear‑mounted propeller) layout with a 1300mm wingspan and 972mm fuselage length, it offers excellent flight stability and an unobstructed forward view.

Its standout feature is the open‑source 3D‑printed design — many structural components are 3D‑printed, and users can download official STL files to print replacement parts or make custom modifications, greatly expanding flexibility and personalization.

The entire model uses a screw‑less quick‑release system with snap‑fit locks, allowing assembly in just 2 minutes. The spacious battery bay accommodates standard 4S LiPo packs or 21700 battery packs (up to 4S2P‑10000mAh), delivering 10‑30 minutes of flight time. The nose is pre‑equipped with mounts for DJI O3 and Walksnail Moonlight Kit HD FPV systems, and also supports fixed‑angle cameras and gimbals. The fuselage bottom includes abrasion pads for easy hand‑launching and grass landings, and an optional landing gear module can be added for runway takeoffs and landings.

With a beginner difficulty rating and about 15 minutes of assembly and setup time, the X1300 is ideal for newcomers to FPV fixed‑wing, while also offering plenty of room for advanced hobbyists to customize.

Open‑source 3D printing – self‑print parts Screw‑less quick assembly – 2 minutes Up to 4S2P‑10000mAh battery DJI O3 / Walksnail FPV ready High‑wing pusher layout – unobstructed view Beginner‑friendly – great for first‑timers

Important: Recommended for users aged 14 and above with adult supervision. Before first flight, read the manual carefully and ensure the CG is correct (use the nose weight compartment as needed). Always fly in open areas and comply with local aviation regulations.

Specifications

Model	X1300
Brand	XFly Model
Layout	High‑wing, pod‑and‑boom (pusher)
Wingspan	1300mm (51.2in)
Fuselage Length	972mm (38.3in)
Wing Area	22.5dm²
Wing Loading	58g/dm²
Takeoff Weight	~1300g
Material	High‑density EPO + PLA additive
Motor	2212‑KV1400 Brushless Outrunner (pre‑installed on PNP)
ESC	40A Brushless ESC (pre‑installed on PNP)
Servos	9g Metal Digital Servos × 5 (pre‑installed on PNP)
Propeller	8×5" Two‑Blade Pusher Prop (included with PNP)
Channels	4CH (Aileron, Elevator, Throttle, Rudder)
Recommended Battery	4S 2600‑3300mAh LiPo / 21700‑4S1P‑5000mAh
Max Battery Extension	21700‑4S2P‑10000mAh
Battery Size Limit	140×35×35mm (L×W×H)
Flight Time	10‑30 minutes
Assembly Time	~2 min (assembly) / ~15 min (including setup)
Difficulty Level	Beginner
Recommended Age	14+

Frequently Asked Questions

Q1: Do I need tools, glue, or screws to assemble the X1300?

No. The X1300 uses a tool‑free quick‑release system with snap‑fit locks. No screws or glue are required; you can assemble it by hand in about 2 minutes.

Q2: Which FPV systems are compatible with the X1300?

The nose has dedicated mounting positions for DJI O3 Air Unit and Walksnail Moonlight Kit HD FPV systems. It also supports fixed‑angle cameras and gimbals simultaneously.

Q3: What batteries can I use, and what flight time can I expect?

The battery bay fits 4S 2600‑3300mAh LiPo packs and 21700‑4S1P‑5000mAh packs, with room for up to 21700‑4S2P‑10000mAh. Dimensions are limited to 140×35×35mm. Flight time ranges from 10 to 30 minutes depending on the battery.

Q4: What's the difference between the KIT and PNP versions?

The KIT version includes all structural parts (fuselage, wings, tail surfaces, etc.) but no electronics – you supply your own motor, ESC, servos, and propeller. The PNP version comes with the 2212‑KV1400 motor, 40A ESC, 5 metal‑gear servos, and the 8×5" propeller pre‑installed. With the PNP, you only need to add your own transmitter, receiver, and battery.

Q5: Is the X1300 suitable for beginners?

Absolutely. Its beginner‑level difficulty, high‑wing design, and inherent stability make it an excellent choice for pilots transitioning from multi‑rotors to fixed‑wing. We recommend adult supervision for users under 14.

Q6: What are the advantages of the pusher (pod‑and‑boom) layout?

The rear‑mounted propeller keeps the nose completely clear, eliminating prop shadows in FPV footage. It also makes hand‑launching safer and prevents airflow interference with cameras and gimbals.

Q7: What materials are used, and how durable is the airframe?

The airframe combines lightweight, high‑strength EPO foam with PLA additive parts. EPO offers good impact resistance, and the PLA 3D‑printed components can be reprinted if damaged, keeping maintenance costs low.

Q8: Can I install flaps, and does it support runway takeoffs/landings?

Yes, the X1300 has预留 positions for flaps. For takeoff and landing, you have two options: (1) hand‑launch and grass‑land using the built‑in abrasion pads, or (2) install the optional landing gear module for runway operations.

Package Contents

KIT Version Structure kit (electronics not included)

Included Parts

#	Item	Qty
1	Fuselage (with battery hatch)	1 set
2	Main wing (left & right)	1 pair
3	Horizontal stabilizer	1 set
4	Vertical stabilizer set	1 set
5	FPV battery hatch	1 pc
6	Main wing joiner tubes	1 set
7	Horizontal stabilizer joiner tubes	1 set
8	Control surface horn set	1 set
9	Pushrods (ball‑link type)	1 set
10	Decal sheet	1 set

Required Separately

#	Item	Recommendation
1	Brushless motor	2212‑KV1400 (or equivalent)
2	Brushless ESC	40A (or higher)
3	Servos	9g metal digital × 5
4	Propeller	8×5" two‑blade pusher
5	Transmitter (radio)	4‑6 channels
6	Receiver	Compatible with transmitter
7	Battery	4S LiPo or 21700 pack
8	Battery charger	Suitable for your battery
9	FPV system (optional)	e.g. DJI O3 / Walksnail Moonlight
10	FPV goggles / monitor (optional)	To match your FPV system

PNP Version Pre‑installed electronics – ready to assemble

Included Parts

#	Item	Qty
1	Fuselage (with battery hatch)	1 set
2	Main wing (left & right)	1 pair
3	Horizontal stabilizer	1 set
4	Vertical stabilizer set	1 set
5	FPV battery hatch	1 pc
6	Main wing joiner tubes	1 set
7	Horizontal stabilizer joiner tubes	1 set
8	Control surface horn set	1 set
9	Pushrods (ball‑link type)	1 set
10	Decal sheet	1 set
11	2212‑KV1400 Brushless Outrunner Motor (pre‑installed)	1 pc
12	40A Brushless ESC (pre‑installed)	1 pc
13	9g Metal Digital Servos (pre‑installed)	5 pcs
14	8×5" Two‑Blade Pusher Prop (included)	1 set

Required Separately

#	Item	Description
1	Transmitter (radio)	4‑6 channels
2	Receiver	Compatible with transmitter
3	Battery	4S LiPo or 21700 pack
4	Battery charger	Suitable for your battery
5	FPV system (optional)	e.g. DJI O3 / Walksnail Moonlight
6	FPV goggles / monitor (optional)	To match your FPV system

Note: The KIT version is for those who already have electronics or want to choose their own. The PNP version comes with motor, ESC, and servos pre‑installed; you only need to add your transmitter, receiver, and battery to get flying.
